Description
Evolight Dimmable 4000K LED Lamp with Connector Box
Integral ILMDE004
The Integral ILMDE004 Evolight Dimmable LED Lamp is a pre-wired 240V lighting solution designed to replace 12V MR16 and 240V GU10 lamps, removing the need for additional lamp holders and transformers. Its ultra-low-profile design of just 29mm makes it an ideal choice for installations with restricted ceiling void space.

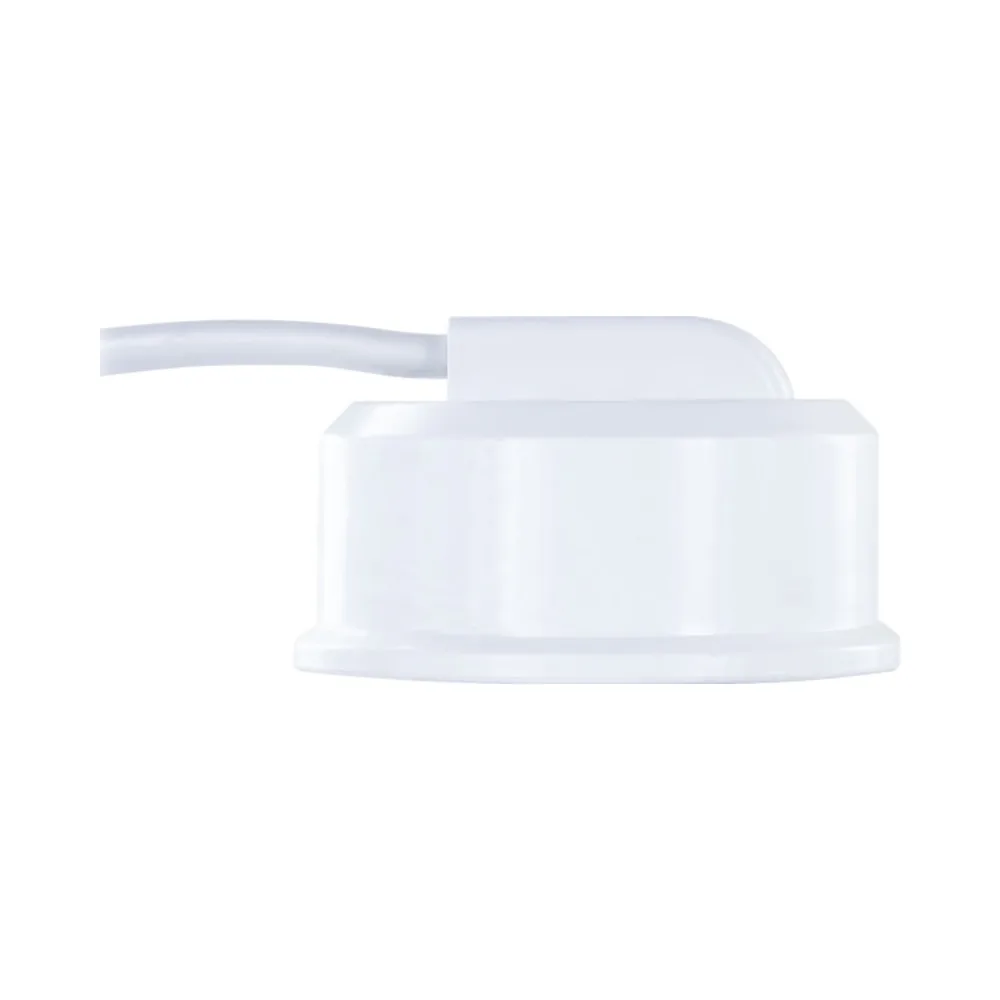

This model includes a Fast-Fit screwless connector box with a piano-key style terminal block, allowing for quick, tool-free installation. Producing 420 lumens (350 useful lumens) of 4000K cool white light, it delivers a bright and natural illumination suitable for task lighting in homes, offices, and commercial settings.
Key Features
- All-in-One 240V Solution – No need for lamp holders or transformers
- Ultra-Low Profile – 29mm height, perfect for tight ceiling voids
- Fast-Fit Screwless Connector Box – Enables quick, tool-free wiring
- Pre-Wired for Easy Installation – Comes with a 28cm cable
- Dimmable – Compatible with most dimmer switches for adjustable brightness
- Cool White Light – 4000K colour temperature provides crisp, natural illumination
- Energy-Efficient – Uses only 3.8W while delivering 420 lumens
- Ideal for Canless Downlights – Works perfectly with Integral LED Evofire+
- Durable Build – Constructed from plastic and aluminium with a diffuser lens
Technical Specifications
- Part number: ILMDE004
- Material: Plastic, aluminium heat-sink, injection-moulded diffuser
- Finish: White with a classic diffuser lens
- Overall dimensions: 50mm (diameter) x 29mm (height)
- Weight: 36g
- Power consumption: 3.8W
- Luminous output: 420 lumens (350 useful lumens)
- Beam angle: 36°
- Colour temperature: 4000K (cool white)
- Voltage: 240V
- Dimmable: Yes
- Connector Box: Fast-Fit screwless junction box with piano-key terminal block
- Mounting: Downlight fixture
- Spot type: SMD LED
- Placement: Indoor, general lighting
Ideal Applications
The Integral Evolight LED lamp is perfect for:
- Replacing 12V MR16 lamps, GU10 bulbs, and their holders
- Kitchens, offices, and retail spaces needing bright, cool white task lighting
- Areas with restricted ceiling void space, thanks to its ultra-low-profile design
- Canless downlights and fire-rated downlight installations
- Pairing with Integral LED Evofire+ for a modern, efficient setup
- Installations requiring a quick and tool-free setup with a Fast-Fit screwless connector box
Why Choose the Integral Evolight LED Lamp with Connector Box?
This all-in-one 240V LED lamp is designed for fast and easy installation, making it perfect for electricians and DIY installations alike. The Fast-Fit screwless connector box with a piano-key terminal block ensures hassle-free wiring, reducing installation time and effort.
With a 4000K cool white glow, dimmable capability, and energy efficiency, this lamp provides consistent and high-quality illumination for task-focused areas and workspaces.
About Integral LED
Integral LED is a trusted provider of high-performance, energy-efficient lighting solutions. The Evolight series combines innovation, convenience, and long-term savings, ensuring reliable performance in both residential and commercial applications.
