Ultra-Discreet Fire Rated Ceiling Light for Modern Interiors

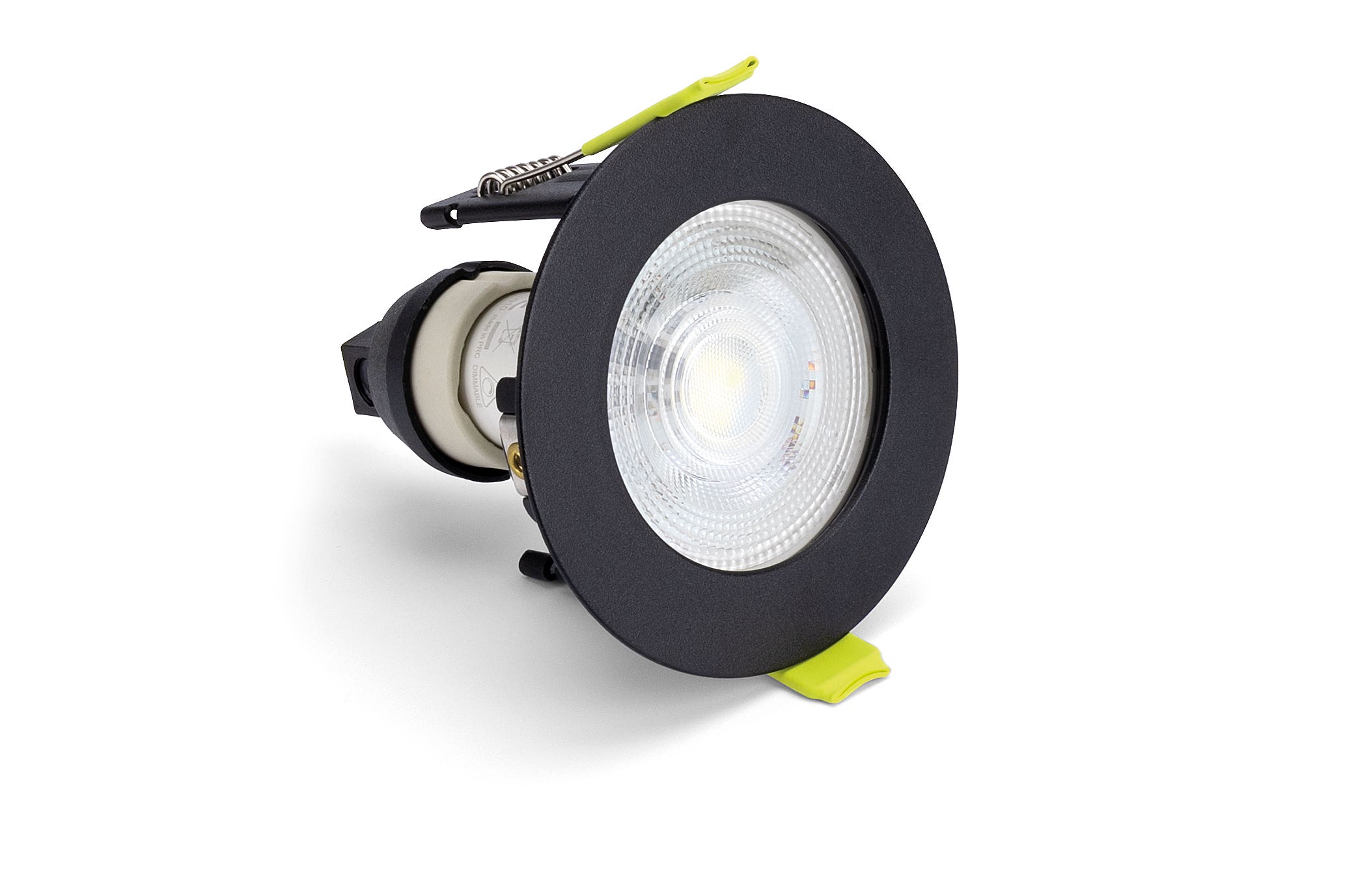

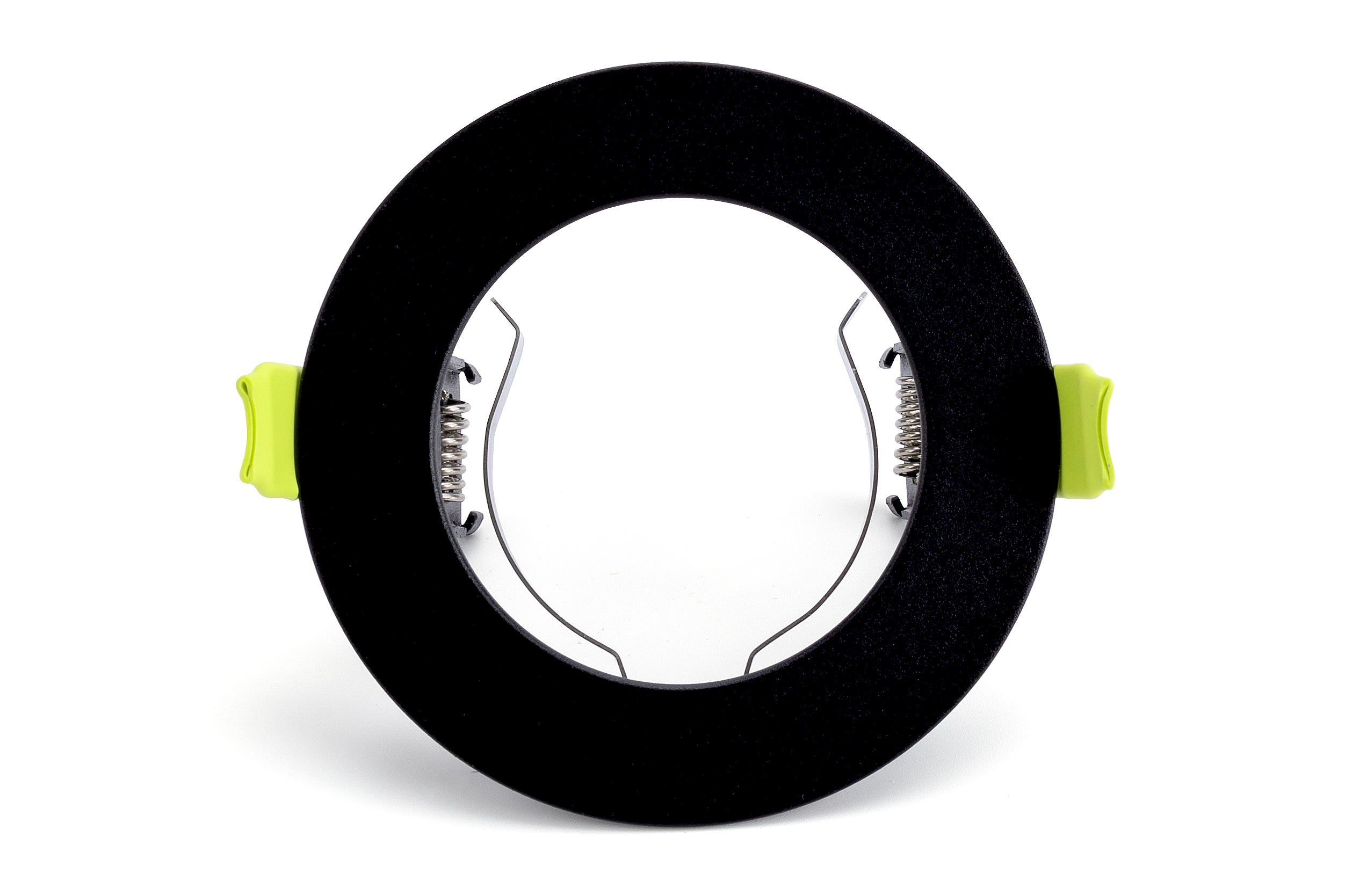

Integral ILDLFR60D109 Mini GU10 Downlight
The Integral ILDLFR60D109 Mini GU10 Downlight delivers a refined, design-led solution for fire-rated lighting. Featuring the Evofire Micro Bezel edition, it reduces bezel size by 40% and measures just 1mm thick—up to 10 times thinner than traditional fire-rated fittings—creating a virtually seamless finish in any ceiling.
Constructed from fire-rated steel and tempered glass, this innovative open-structure design improves airflow and heat dissipation. Lamps installed within the Evofire run up to 10°C cooler than in standard can-style fittings, helping to extend lamp life and maintain performance. With IP65 protection, it’s ideal for bathrooms, kitchens, and moisture-prone areas.
Certified for 30, 60, and 90-minute fire resistance in solid timber joist ceilings, and 30 and 60 minutes in i-Joist constructions (BS 476 Part 21 compliant), this fitting ensures dependable safety. Air Tightness complies with Part C and Part L, while acoustic resistance meets Part E requirements. Developed in the UK and protected by Patent GB2557957, it combines advanced engineering with elegant aesthetics.
Key Features – Integral ILDLFR60D109 Mini GU10 Downlight
- Evolutionary fire-rated fitting designed by Integral LED
- Developed in the UK – Patent GB2557957
- Fire rated: 30 / 60 / 90 minutes (application dependent)
- Ultra-thin 1mm micro bezel – 40% smaller for discreet finish
- IP65 rated – suitable for bathrooms and kitchens
- Open structure design for improved heat dissipation
- Loop-in / Loop-out piano-key style terminal block
- Supplied with GU10 holder
- Optional clip-in insulation guard available separately
- 7-year warranty
Technical Overview – Integral ILDLFR60D109 Mini GU10 Downlight
- Lamp base: GU10 (lamp not included)
- Ingress protection: IP65 (front face)
- Fire rating: 30 / 60 / 90 minutes (solid timber joist), 30 / 60 minutes (i-Joist)
- Compliance: BS 476 Part 21
- Air Tightness: Part C & Part L compliant
- Acoustic compliance: Part E
- Material: Fire-rated steel & tempered glass
- Design: Open structure (non-can style)
- Bezel thickness: 1mm
- Warranty: 7 years
Why Choose This Product?
The Integral ILDLFR60D109 Mini GU10 Downlight combines ultra-slim aesthetics with certified fire protection and IP65 sealing. Its innovative open design improves lamp longevity while delivering a clean, high-end architectural finish.
About Integral LED
Integral LED is a UK-based lighting brand known for combining advanced engineering with modern design. Their fire-rated lighting solutions are trusted across residential and commercial sectors for performance, compliance, and durability.
Guarantee & Compliance
Tested and certified to BS 476 Part 21 standards, and compliant with UK Building Regulations Parts C, L, and E. Backed by a 7-year manufacturer warranty for complete peace of mind.
