Description

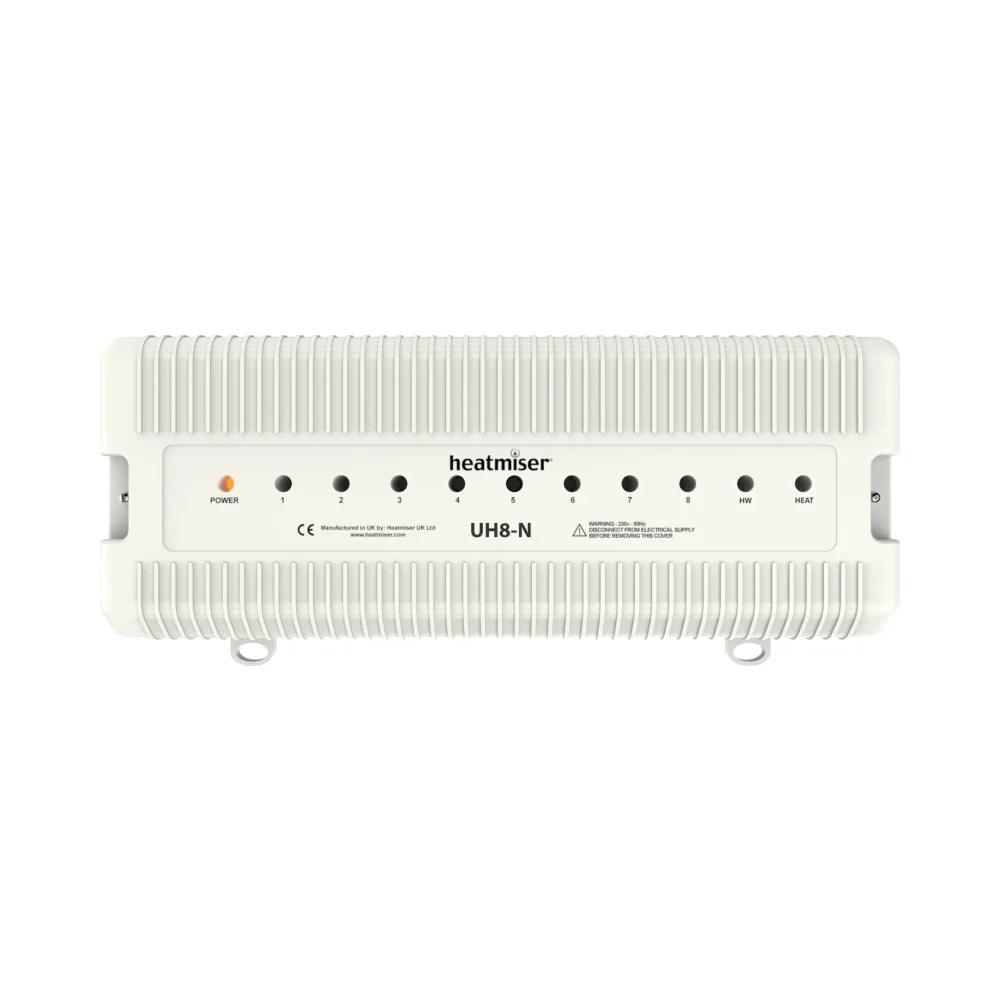

8 Zone 12V Wiring Centre
Heatmiser UH8-N
The Heatmiser UH8-N 8 Zone 12V Wiring Centre is a central wiring switch box designed for seamless integration with Heatmiser’s 12V thermostats. This unit provides a neat and efficient solution for managing underfloor heating systems, allowing for central control of up to 8 heating zones.
Ideal for residential and commercial applications, the UH8-N simplifies the wiring process, reducing installation time while enhancing system performance. It also supports radiator and domestic hot water control, making it a versatile choice for multi-zone heating systems.
Key Features:
- Supports Up to 8 Zones: Central wiring for up to 8 zone actuators
- Underfloor Heating Control: Activates underfloor heating valve and pump when any connected thermostat calls for heat
- Compatible with 12V Thermostats: Designed to work seamlessly with Heatmiser low voltage thermostats
- Radiator Zone Output: Dedicated output for controlling a single radiator zone
- Domestic Hot Water Output: Built-in output for domestic hot water (DHW) control
- Network Connectivity: Supports network connection to the Heatmiser Touchpad for enhanced control
- Actuator Outputs: Provides 240V actuator outputs for reliable system operation
- DIN Rail Mounting: Designed for easy DIN rail installation in control cabinets
Technical Specifications:
- Zones Supported: Up to 8 heating zones
- Thermostat Compatibility: 12V Heatmiser thermostats
- Actuator Outputs: 240V
- Pump/Valve Control: Activates underfloor heating pump and valve on heat demand
- Radiator Control: Output for one radiator zone
- Domestic Hot Water Control: Yes
- Network Connection: Compatible with Heatmiser Touchpad
- Mounting: DIN rail compatible
Applications:
- Underfloor Heating Systems: Ideal for controlling multi-zone underfloor heating setups
- Radiator Systems: Supports additional radiator zones alongside underfloor heating
- Domestic Hot Water Control: Efficiently manages DHW systems in conjunction with heating
- Smart Home Integration: Works with Heatmiser smart thermostats and control panels
Benefits:
- Simplified Wiring: Reduces complexity in multi-zone installations
- Flexible Control: Manage underfloor heating, radiators, and hot water from a central point
- Energy Efficient: Activates pumps and valves only when needed, optimizing energy use
- Easy Installation: DIN rail design allows for quick and tidy setup in control cabinets
- Enhanced System Performance: Provides reliable connections and central control for all heating components
What’s Included:
- 1 x Heatmiser UH8-N 8 Zone 12V Wiring Centre
- Installation Guide
