Description

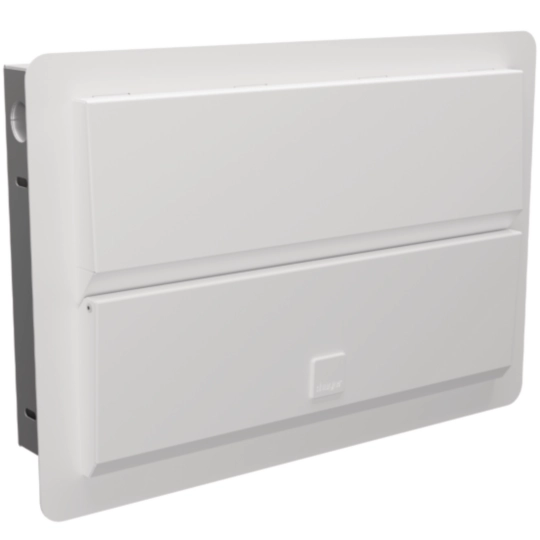

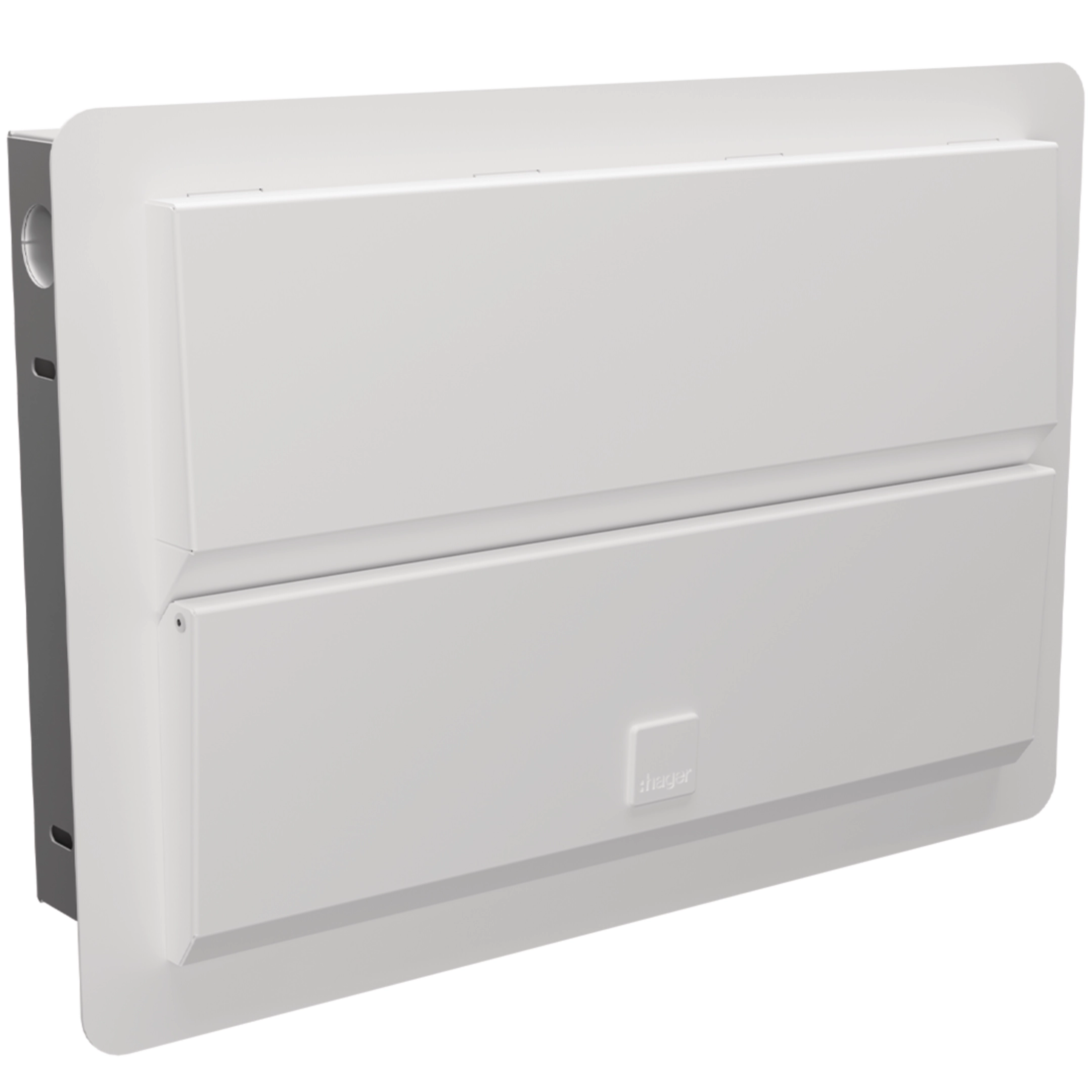

Hager VMEF113SPD 13 Way Flush Consumer Unit with Type 2 SPD
New Design Evo Range
Hager VMEF113SPD 13 Way Flush Consumer Unit with 13 usable ways, designed for recessed installation, featuring a main switch disconnector and factory-fitted single module Type 2 SPD (40kA). The SPD is a compact single module device (not MCB type), maximising usable ways within the board. Designed for flush mounting into walls for a clean, integrated finish in residential installations. Compliant with BS EN 61439-3 and suitable for TN-C-S, TN-S and TT systems. Dimensions: 282 x 407 x 72mm.
Key Features
- 13 usable ways single row consumer unit
- Flush mounted (recessed) design for wall integration
- Part of the Hager Design Evo range
- Main switch disconnector incomer
- Factory-fitted single module Type 2 SPD (40kA)
- Single module SPD (not MCB type) – maximises usable ways
- Metal enclosure for enhanced safety
- Optimised for recessed wall installation
- Top mounted terminal rail for efficient wiring
Technical Information
- Standards: BS EN 61439-3
- Rated Voltage: 230V AC, 50Hz
- SPD Type: Type 2 (single module)
- Maximum Discharge Current: 40kA
- Impulse Withstand Voltage: 4kV
- Protection Rating: IP2XC
- System Compatibility: TN-C-S, TN-S, TT
- Mounting Type: Flush (recessed)
- Number of Width Units: 13
- Dimensions (H x W x D): 282 x 407 x 104mm
- Internal Depth: 72mm
- Side Wall Thickness: 1mm
For more information on the SPD used in this unit, see:
Hager VMES02SPD Surge Protection Device.
