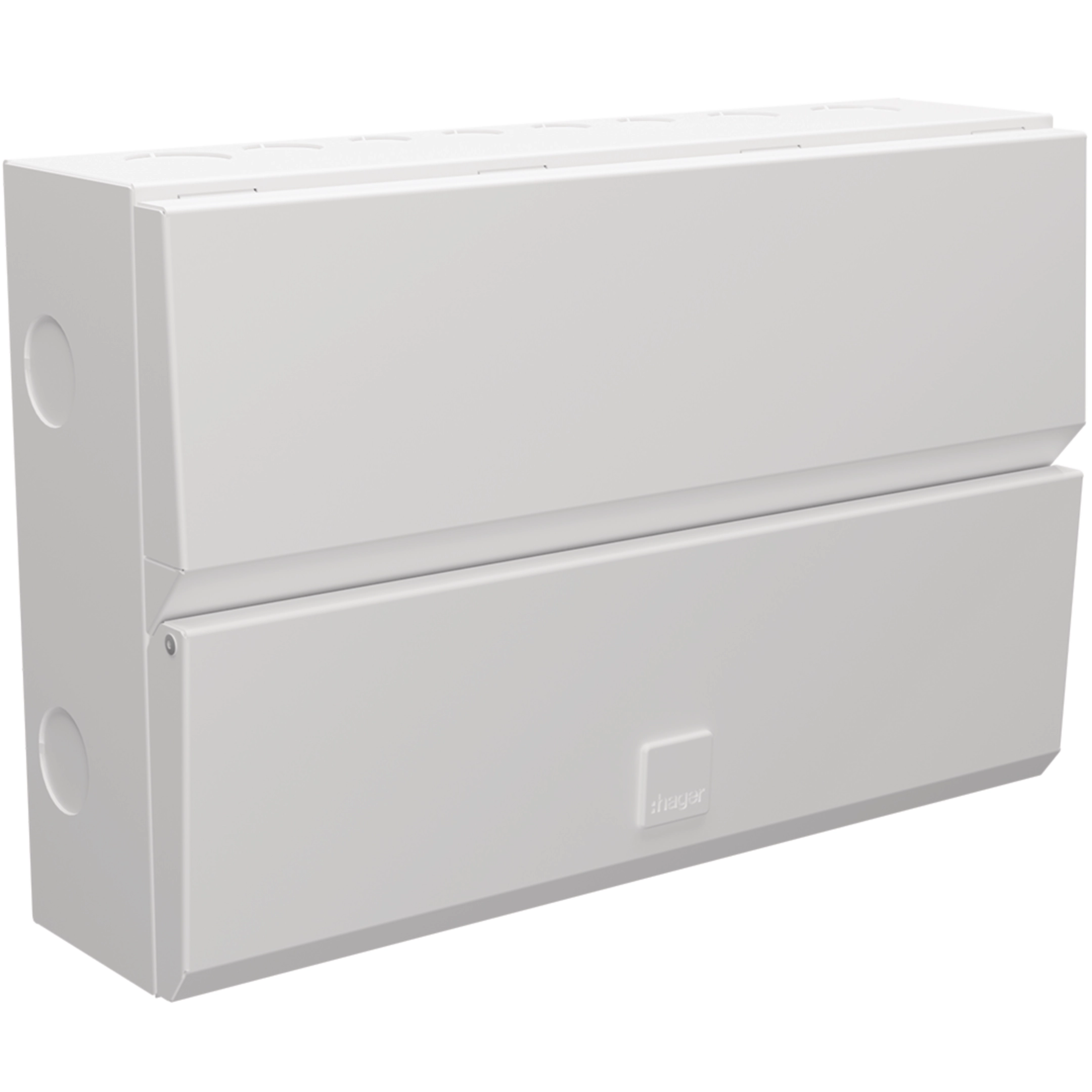

Hager VME114 14 Way Consumer Unit
The Hager VME114 14 Way Consumer Unit is a premium Design Evo main switch consumer unit designed for safe and reliable power distribution in residential electrical installations. Featuring a 100A switch disconnector incomer and a robust 116A busbar rating, this metal consumer unit conforms to BS EN 61439-3 including Annex ZB requirements with a 16kA rating. Its durable enclosure and optimised internal layout make it ideal for modern domestic installations where safety, accessibility and cable management are essential.
Part of the Hager Design Evo range, the Hager VME114 14 Way Consumer Unit is specifically designed for installations where the consumer unit is located within a living area of the property. The enclosure includes multiple cable entry points, rear knockouts, quick release DIN rail functionality and a top mounted terminal rail for simplified installation. The rigid construction and retained front cover screws also help improve usability and installation efficiency for electricians.
Key Features
Consumer Unit Features
- 14 way main switch consumer unit
- 100A switch disconnector incomer
- 116A rated busbar
- Designed to BS EN 61439-3 including Annex ZB
- 16kA rated assembly
Design Features
- Durable metal enclosure construction
- Quick release DIN rail for easier device installation
- Round cable entry points on top, bottom and sides
- Rear knockouts for flexible cable entry
- Front cover retained screws to prevent loss during installation
Installation Benefits
- Optimised internal cabling space
- Top mounted terminal rail for simple neutral and earth wiring
- Rigid top wall design enhances enclosure stability
- Cable clamp prevents movement of incoming supply cables
- Suitable for residential installations and living areas
Technical Specifications
Electrical Specifications
- Consumer Unit Type: Main Switch Consumer Unit
- Number of Ways: 14
- Main Switch Rating: 100A
- Busbar Rating: 116A
- Assembly Rating: 16kA
- Standard: BS EN 61439-3
Physical Specifications
- Enclosure Type: Metal Consumer Unit
- DIN Rail Type: Full Metal DIN Rail
- Cable Entry: Top, Bottom and Side Entry Points
- Rear Knockouts: Yes
- Cover Type: Retained Screw Front Cover
Installation & Compliance
- Suitable for Residential Applications
- Designed for Living Area Installations
- Quick Release DIN Rail System
- Top Mounted Neutral and Earth Terminal Rail
- Compliant with BS EN 61439-3 including Annex ZB
