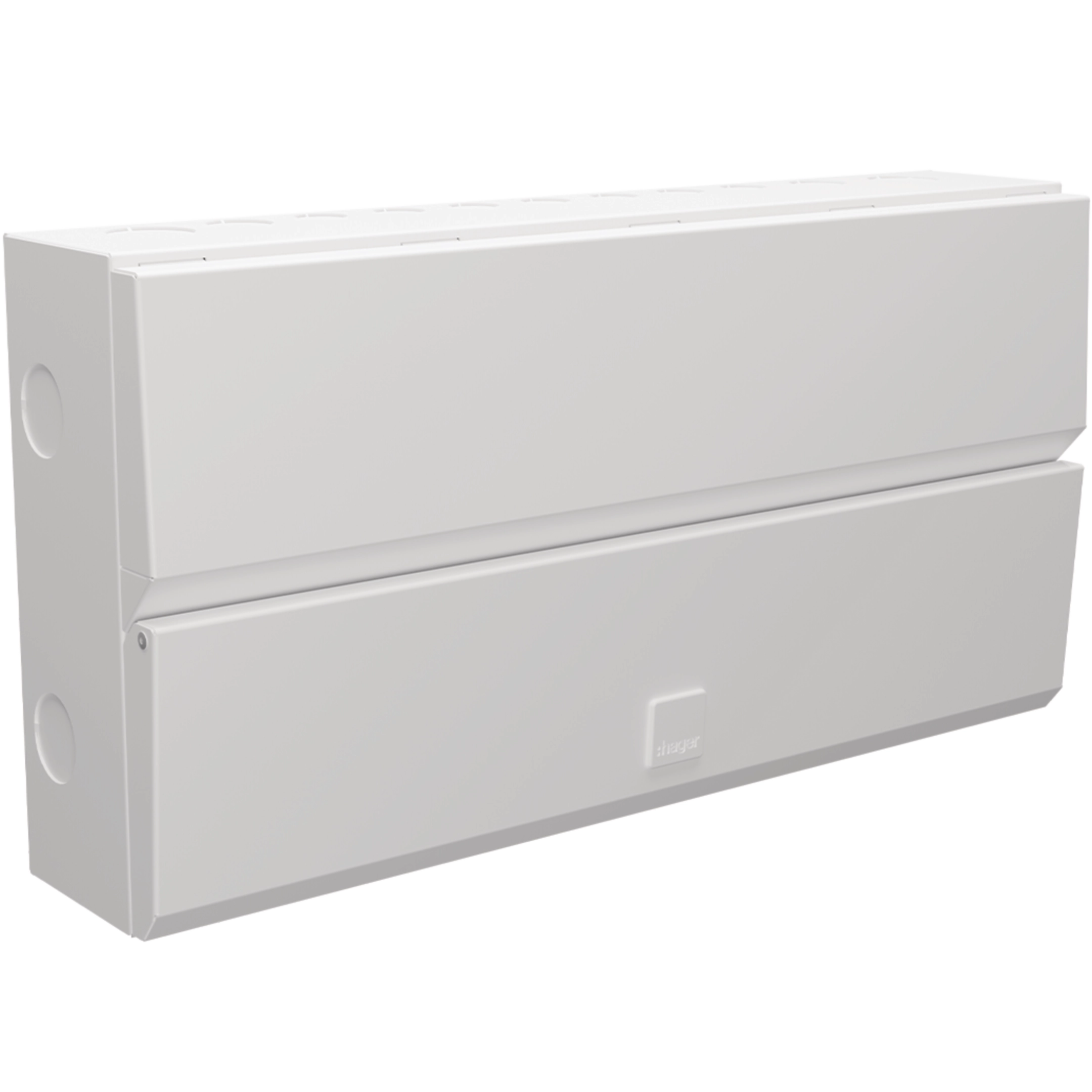

Hager VME022 22 Way DIN Rail Enclosure
The Hager VME022 22 Way DIN Rail Enclosure is a large capacity metal enclosure designed for safe and reliable housing of modular electrical devices in residential and light commercial installations. Part of the Hager Design Evo range, this enclosure conforms to BS EN 61439-3 including Annex ZB and is manufactured from a non-combustible material for improved safety in domestic applications. Its expanded capacity makes it ideal for larger installations, sub distribution applications and dedicated circuit arrangements.
Designed specifically for modern electrical installations, the Hager VME022 22 Way DIN Rail Enclosure features a full metal DIN rail, multiple cable entry points and rear knockouts for flexible cable management. The enclosure also includes retained front cover screws, rigid metal construction and optimised internal cabling space to simplify installation and maintenance for electricians.
Key Features
Enclosure Features
- 22 way DIN rail enclosure
- Designed for modular electrical devices
- Manufactured from non-combustible metal
- Designed to BS EN 61439-3 including Annex ZB
- Suitable for residential and light commercial applications
Design Features
- Full metal DIN rail for secure device mounting
- Round cable entry points on top, bottom and sides
- Rear knockouts for flexible cable entry
- Rigid enclosure construction for improved durability
- Front cover retained screws to prevent loss during installation
Installation Benefits
- Optimised internal cabling space
- Suitable for surface mounting applications
- Designed for modern residential electrical installations
- Multiple fixing points for simple installation
- Compatible with Hager modular devices
Technical Specifications
Electrical Specifications
- Enclosure Type: DIN Rail Enclosure
- Number of Ways: 22
- Standard: BS EN 61439-3
- Rated Frequency: 50Hz
- Rated Impulse Withstand Voltage Uimp: 4kV
Physical Specifications
- Enclosure Material: Metal
- DIN Rail Type: Full Metal DIN Rail
- Height: 480mm
- Width: 472mm
- Depth: 102.5mm
- Cable Entry: Top, Bottom and Side Entry Points
- Rear Knockouts: Yes
Installation & Compliance
- Suitable for Indoor Use Only
- Surface Mounted Enclosure
- Designed for Residential Applications
- Mechanical Impact Protection: IK05
- Degree of Protection: IP2XC
