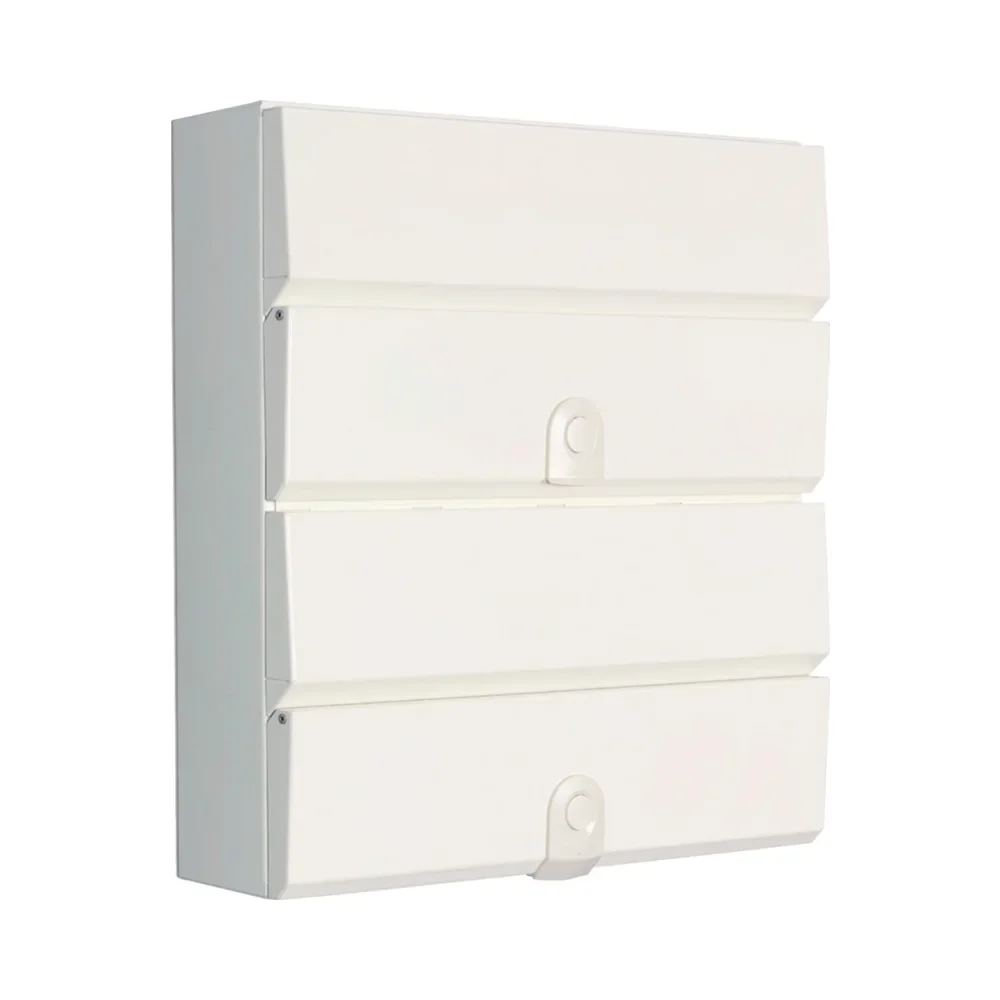

Elegant Design Meets Advanced Protection and BS7671 – Hager VM11214SPD
Design 30 Dual Row 26 Way 100A Metal Main Switch Consumer Unit with Type 2 SPD
Introducing the Hager Design 30 Consumer Unit, a premium solution designed for installations where both functionality and aesthetics are paramount. With its sleek design and advanced features, this unit seamlessly integrates into contemporary living spaces.
⚠️ Important Note: This model does not feature knockouts. All cable entries must be drilled manually during installation.
Key Features of the Hager VM11214SPD Dual Row Type 2 SPD Consumer Unit
- Dual-Row Configuration: Accommodates up to 26 outgoing circuits, providing ample capacity for complex installations.
- 100A Main Switch: Ensures complete system isolation for maintenance and safety procedures.
- Integrated Type 2 SPD: Protects electrical systems and connected devices from transient overvoltages.
- All-Metal, Fire-Resistant Enclosure: Compliant with Amendment 3 standards, offering enhanced fire protection.
- 18th Edition Compliant: Meets UK Wiring Regulations, including surge protection requirements.
- Locate & Hold Cover: Facilitates installation by holding the cover in place, leaving both hands free to fix it to the base.
- No Knockouts: Allows for a smoother finish, especially when cables enter from the rear, maintaining the unit’s sleek appearance.
What’s Included
- Hager Design 30 Consumer Unit (12+14 Way, Dual Row)
- 100A Switch Disconnector Isolator
- Integrated Type 2 Surge Protection Device (SPD) with MCB
- Full Metal DIN Rail
- Earth & Neutral Terminal Bars
- Marking Labels
- Busbar
- Installation Instructions
Technical Specifications
- Number of Ways: 12+14 (Dual Row)
- Main Switch Rating: 100A
- Surge Protection Device: Type 2 SPD included
- Material: All-metal, fire-resistant enclosure
- Compliance: 18th Edition Wiring Regulations & Amendment 3
- Dimensions: Width: 370 mm; Height: 486 mm; Depth: 100 mm
- Mounting: Surface-mounted
- Ingress Protection: IP3X
Why Choose the Hager VM11214SPD Dual Row Type 2 SPD Consumer Unit?
The Hager Design 30 Consumer Unit offers a high-capacity, compliant, and surge-protected solution tailored for installations in living areas. Its dual-row design accommodates 26 circuits, while the integrated 100A switch disconnector and Type 2 SPD ensure both safety and efficiency. Constructed with an all-metal, fire-resistant enclosure, this unit meets the stringent requirements of the 18th Edition Wiring Regulations, making it an ideal choice for both residential and commercial applications.
