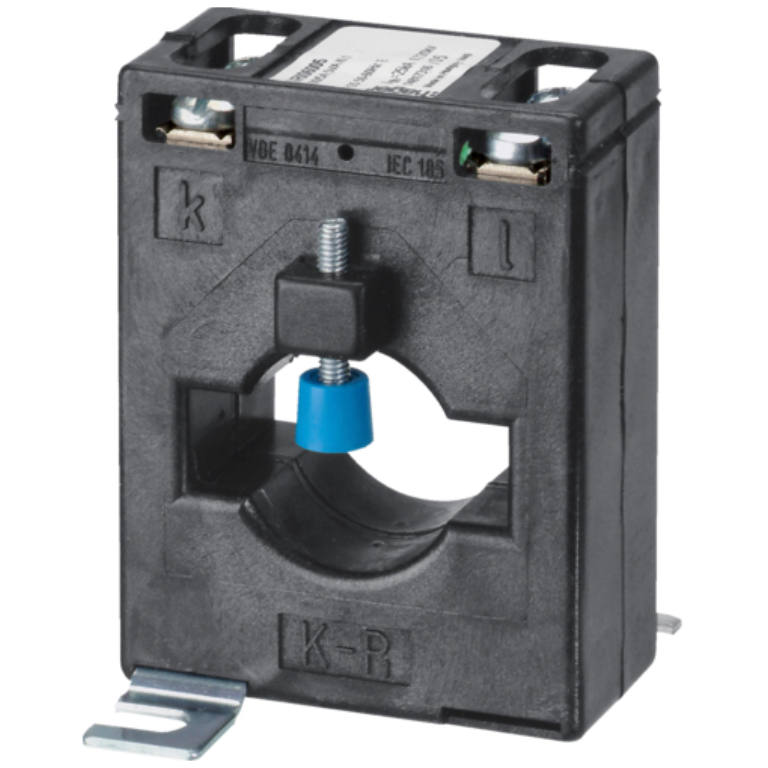

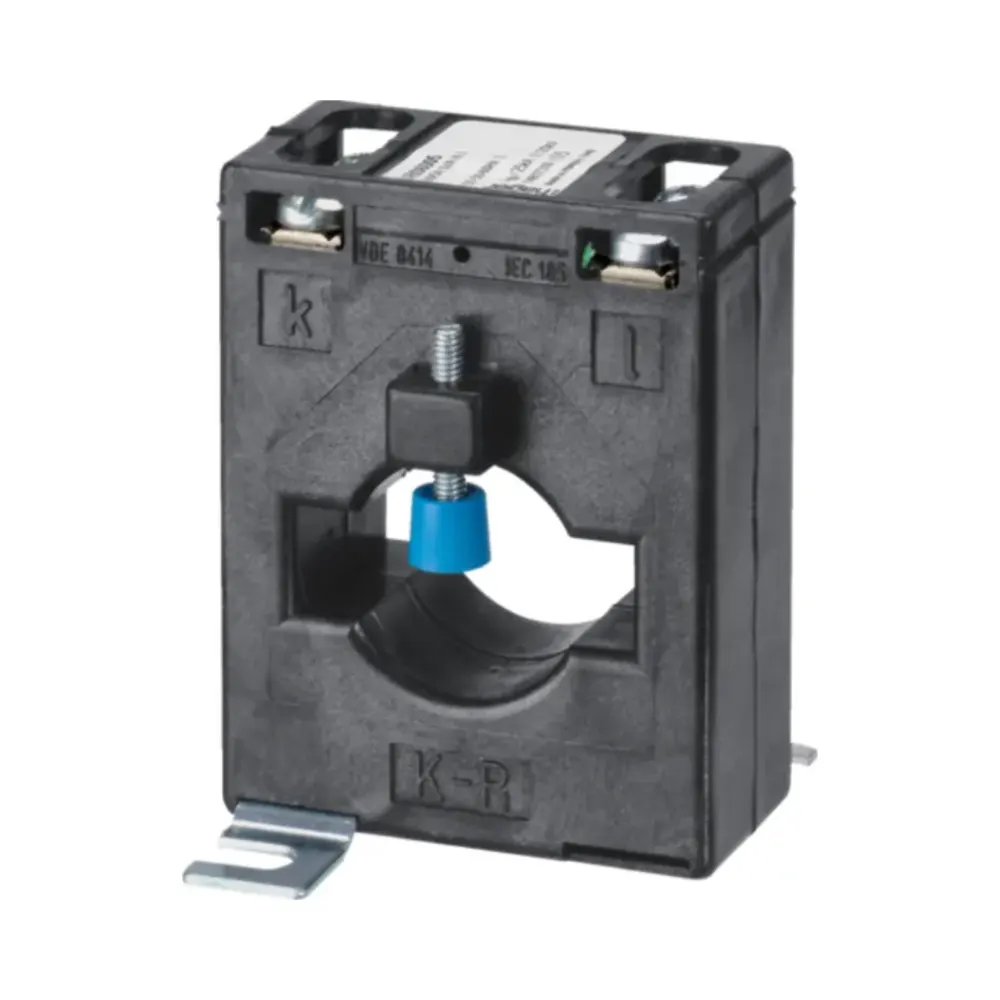

Bar/Cable-Through Current Transformer BG 413 300/5A 5VA Class 1
Hager SRI03005
The Hager SRI03005 is a robust bar/cable-through current transformer designed for precise energy monitoring in medium to high-capacity systems. With a 300/5A ratio and 5VA Class 1 accuracy, this device provides reliable performance for industrial, commercial, and utility energy management applications. Its compact design, larger 28mm opening, and screw-type connections make it an excellent choice for demanding installations.
Key Features of Hager SRI03005 Bar/Cable-Through Current Transformer
- 300/5A Current Ratio: Ensures accurate current measurement with Class 1 precision.
- 5VA Power Rating: Suitable for medium to high-capacity energy monitoring applications.
- Bar/Cable-Through Design: Simplifies installation and allows seamless integration into existing setups.
- Wide Frequency Range: Operates effectively at 50/60Hz.
- Larger Opening: 28mm height of opening accommodates larger cables.
- Compact Dimensions: Measures 78mm in height and 60mm in width, saving space during installation.
- Secure Connections: Screw terminals compatible with flexible and rigid cables for reliable wiring.
- Durable Construction: Performs reliably in temperatures from -40°C to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 3W
Physical Characteristics:
- Depth: 30mm
- Height: 78mm
- Width: 60mm
- Height of Opening: 28mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRI03005 is ideal for:
- Industrial: Monitor energy usage in medium-scale machinery and production setups.
- Commercial: Track power consumption in retail outlets, multi-tenant buildings, and data centers.
- Utilities: Provide precise current measurements for public infrastructure energy systems.
Why Choose the Hager SRI03005?
The Hager SRI03005 delivers precision, durability, and a compact design, making it an excellent solution for medium-capacity energy monitoring. Its 28mm opening accommodates larger cables, and compliance with Class 1 standards ensures reliable and accurate performance.
