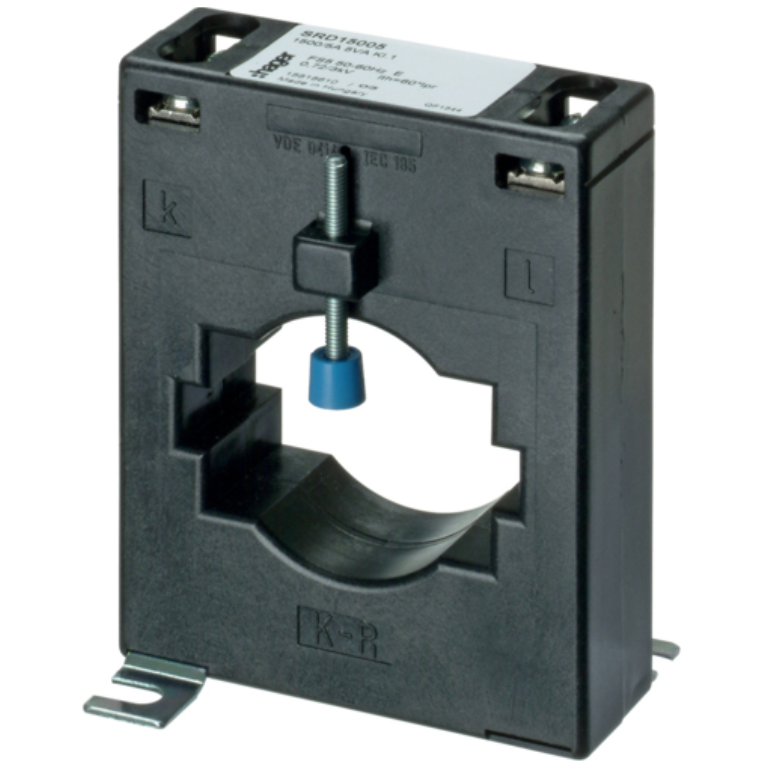

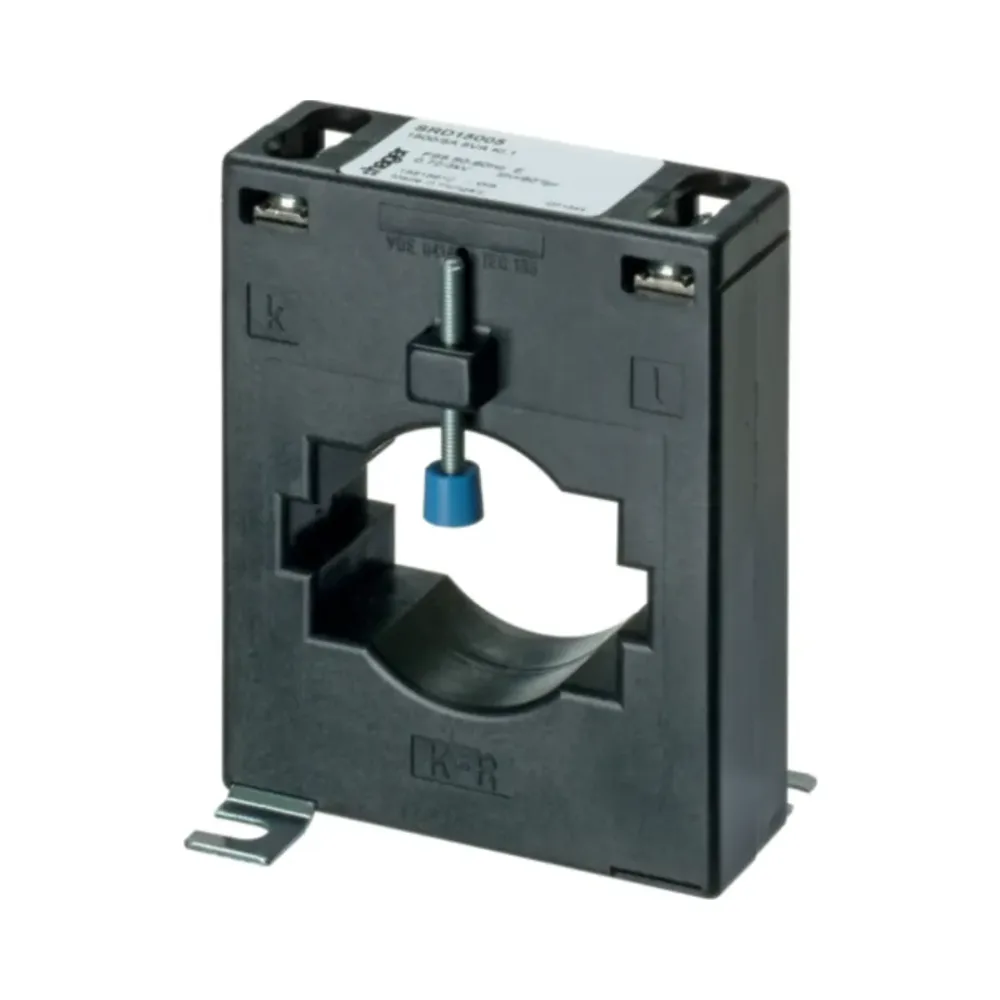

Bar/Cable-Through Current Transformer BG 613 1500/5A 5VA Class 1
Hager SRD15005
The Hager SRD15005 is a high-capacity bar/cable-through current transformer designed for precise energy monitoring in large-scale electrical systems. With a 1500/5A ratio and 5VA Class 1 accuracy, it is ideal for industrial, commercial, and utility applications requiring reliable performance. Its large 45mm opening, robust construction, and screw-type connections make it a dependable choice for demanding energy management needs.
Key Features of Hager SRD15005 Bar/Cable-Through Current Transformer
- 1500/5A Current Ratio: Provides high-accuracy current measurement with Class 1 precision.
- 5VA Power Rating: Suitable for heavy-duty energy monitoring applications.
- Bar/Cable-Through Design: Simplifies installation and ensures compatibility with large-scale setups.
- Wide Frequency Range: Operates effectively at 50/60Hz for versatile applications.
- Larger Opening: Accommodates cables up to 45mm in diameter, suitable for high-capacity systems.
- Rugged Build: Designed for reliable performance in demanding environments.
- Secure Connections: Screw terminals ensure compatibility with flexible and rigid cables for safe wiring.
- Reliable Performance: Operates in extreme temperatures ranging from -40°C to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 13.5W
Physical Characteristics:
- Depth: 30mm
- Height: 108mm
- Width: 85mm
- Height of Opening: 45mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRD15005 is ideal for:
- Industrial: Monitor power usage in large-scale machinery and heavy production systems.
- Commercial: Track energy consumption in multi-tenant buildings, retail complexes, and data centers.
- Utilities: Ensure precise current measurement in public infrastructure and high-capacity energy systems.
Why Choose the Hager SRD15005?
The Hager SRD15005 combines precision, durability, and a large cable opening to handle demanding energy monitoring requirements. Its compliance with Class 1 standards ensures reliability and accuracy, while its robust design and ease of installation make it a preferred choice for large-scale energy management.
