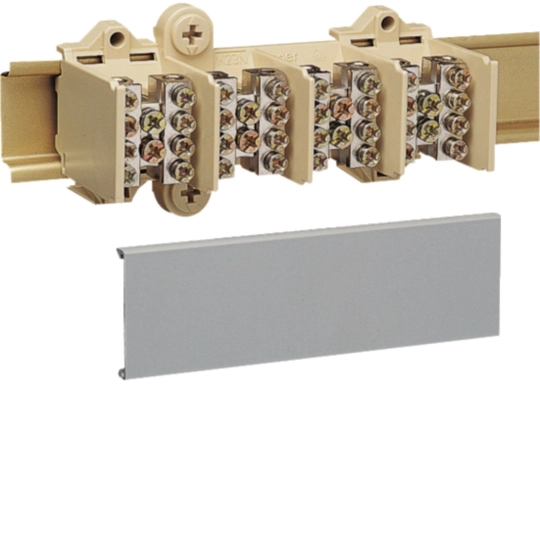

Hager K024 4 Pole Main Line Branch Terminal
The Hager K024 4 Pole Main Line Branch Terminal is a 125A terminal assembly designed for use within Hager universZ distribution equipment. Its four-pole configuration provides an organised solution for distributing a main electrical supply across multiple outgoing conductor connections.
Each pole provides 1 x 25mm² main connection and 4 x 16mm² branch connections, making the K024 suitable where several outgoing connections are required from a common incoming supply.
Key Features
- Hager K024 main line branch terminal
- 4 pole configuration
- Rated current: 125A
- Nominal voltage: 400V
- 1 x 25mm² main connection per pole
- 4 x 16mm² branch connections per pole
- 25mm² rigid conductor cross-section
- Designed for Hager universZ distribution systems
- RoHS compliant
4 Pole 125A Distribution Terminal
The Hager K024 4 Pole Main Line Branch Terminal provides four individual poles for main line distribution applications. With a rated current of 125A, it is designed for professional electrical distribution installations requiring multiple branch connections from a common supply arrangement.
Technical Specifications
| Brand | Hager |
| Product Code | K024 |
| Product Type | Main Line Branch Terminal |
| Range | universZ |
| Number of Poles | 4 |
| Rated Current | 125A |
| Nominal Voltage | 400V |
| Main Connection | 1 x 25mm² per pole |
| Branch Connections | 4 x 16mm² per pole |
| Rigid Conductor Cross-Section | 25mm² |
| Height | 55mm |
| Width | 120mm |
| Depth | 45mm |
| RoHS Compliant | Yes |
| EAN | 4010330710988 |
