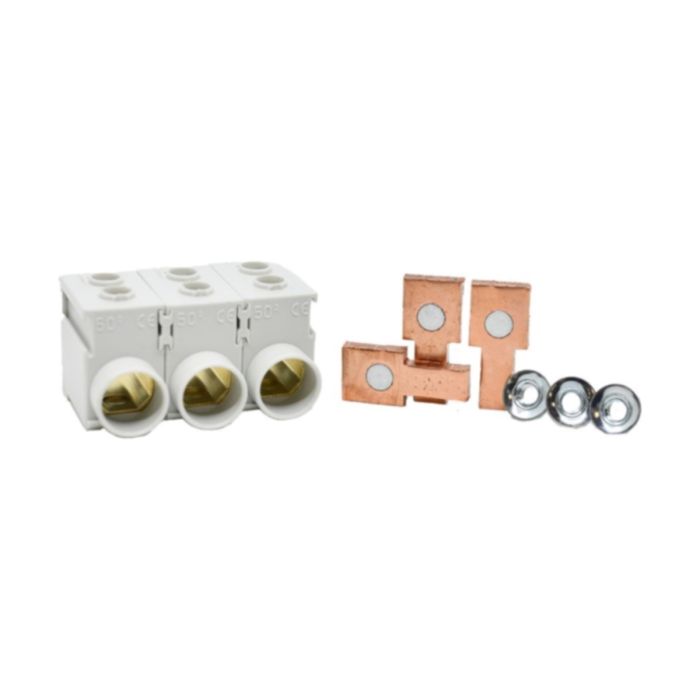

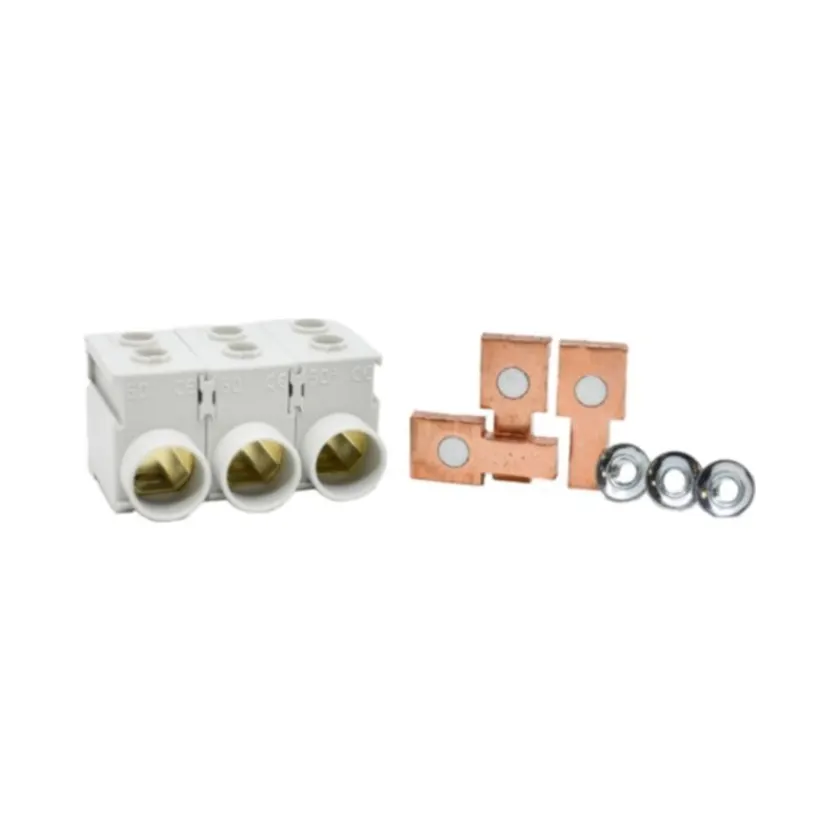

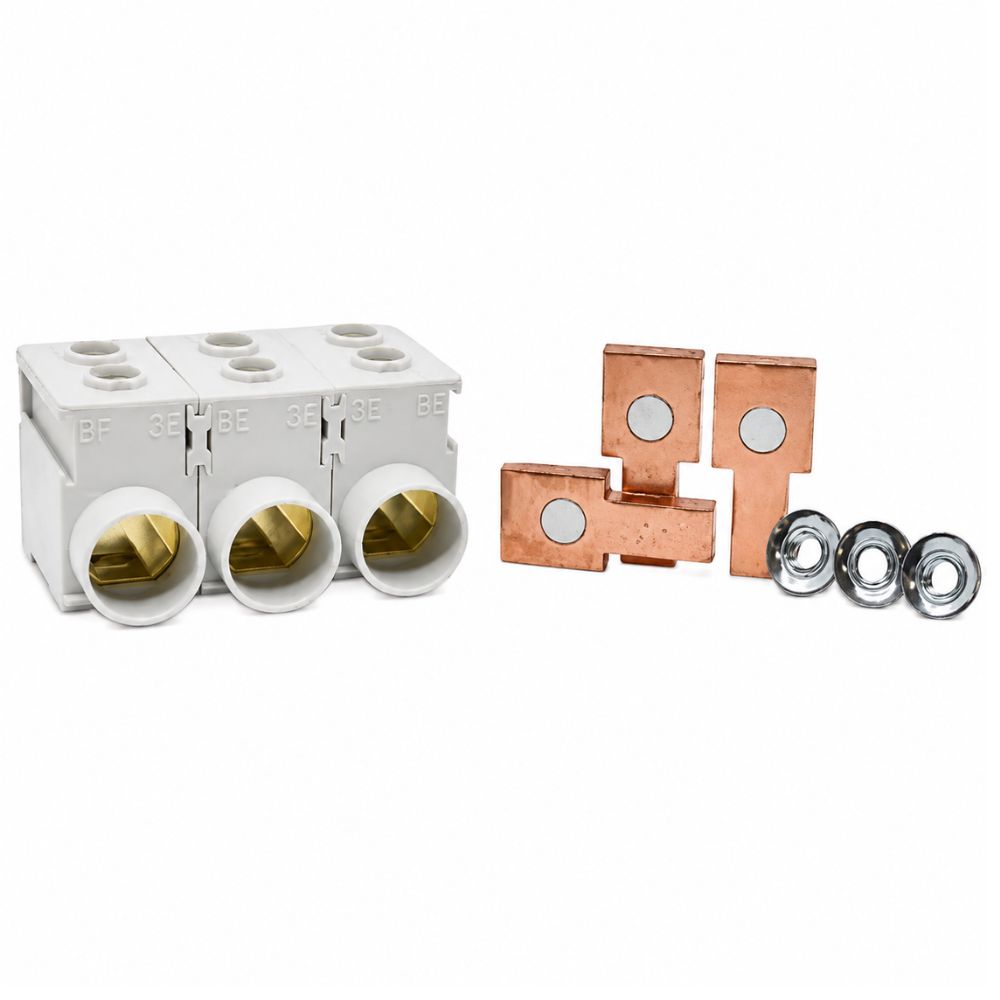

Hager JK100TAP Top Tap Off Kit
The Hager JK100TAP Top Tap Off Kit is a 100A accessory designed for Hager JK enclosures. It allows a top tap-off connection to be incorporated into the enclosure by removing the top cover and fitting the JK100TAP assembly.
Designed specifically for the Hager JK range, the Hager JK100TAP Top Tap Off Kit provides a convenient method of supplying the installation from the top of the enclosure while maintaining a neat and integrated connection arrangement.
100A Top Tap-Off Connection
The JK100TAP can be used to supply up to 100A. It accommodates cable sizes up to 50mm rigid or 35mm flexible, making it suitable for substantial incoming supply conductors within compatible Hager JK installations.
Key Features
- Hager product code: JK100TAP
- 100A top tap off kit
- Designed for Hager JK enclosures
- Allows a top supply connection to be incorporated into the enclosure
- Supply capacity up to 100A
- Maximum cable size: 50mm rigid
- Maximum cable size: 35mm flexible
- Maximum tightening torque: 5Nm
- RoHS conform
Designed for Hager JK Installations
The Hager JK100TAP Top Tap Off Kit is intended for installations where a top-entry supply arrangement is required within a compatible Hager JK enclosure. The dedicated Hager accessory helps provide a properly integrated connection rather than relying on improvised termination arrangements.
Installation Information
The top cover of the compatible JK enclosure can be removed to accommodate the JK100TAP. When terminating conductors, the maximum specified tightening torque is 5Nm. Cable capacity must not exceed 50mm for rigid conductors or 35mm for flexible conductors.
