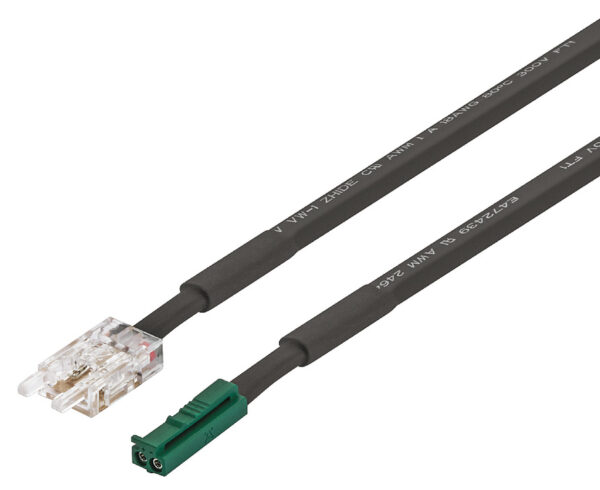

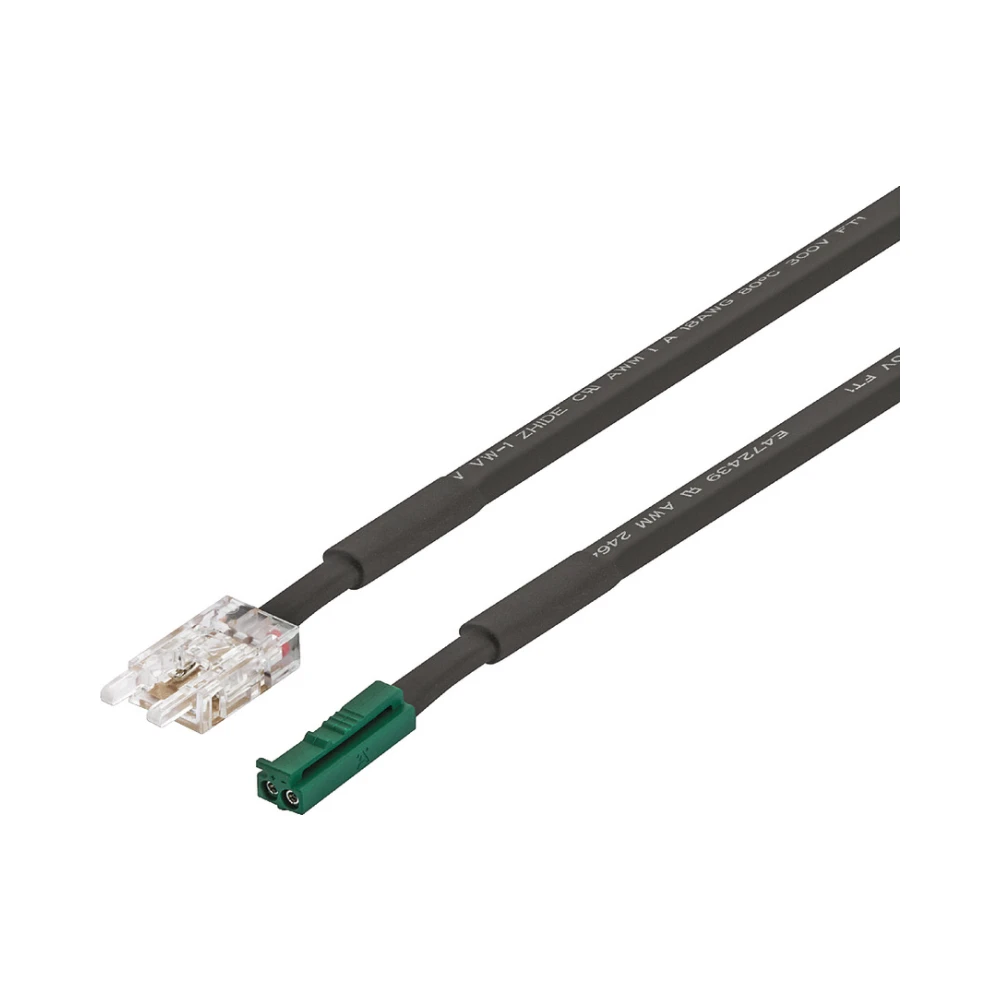

Häfele Loox5 Driver to Light Lead for 8mm LED COB Strip Light
The Häfele Loox5 Driver to Light Lead for 8mm LED COB Strip Light is designed for connecting Häfele Loox5 24V drivers to monochrome COB flexible strip light LED 3069. Supplied in a 2000mm length, the lead provides a simple plug-and-clip connection without the need for soldering.

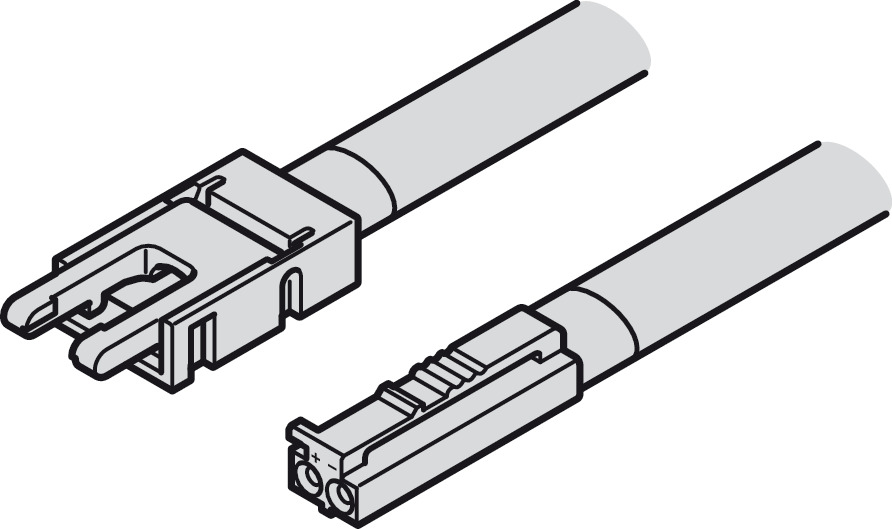

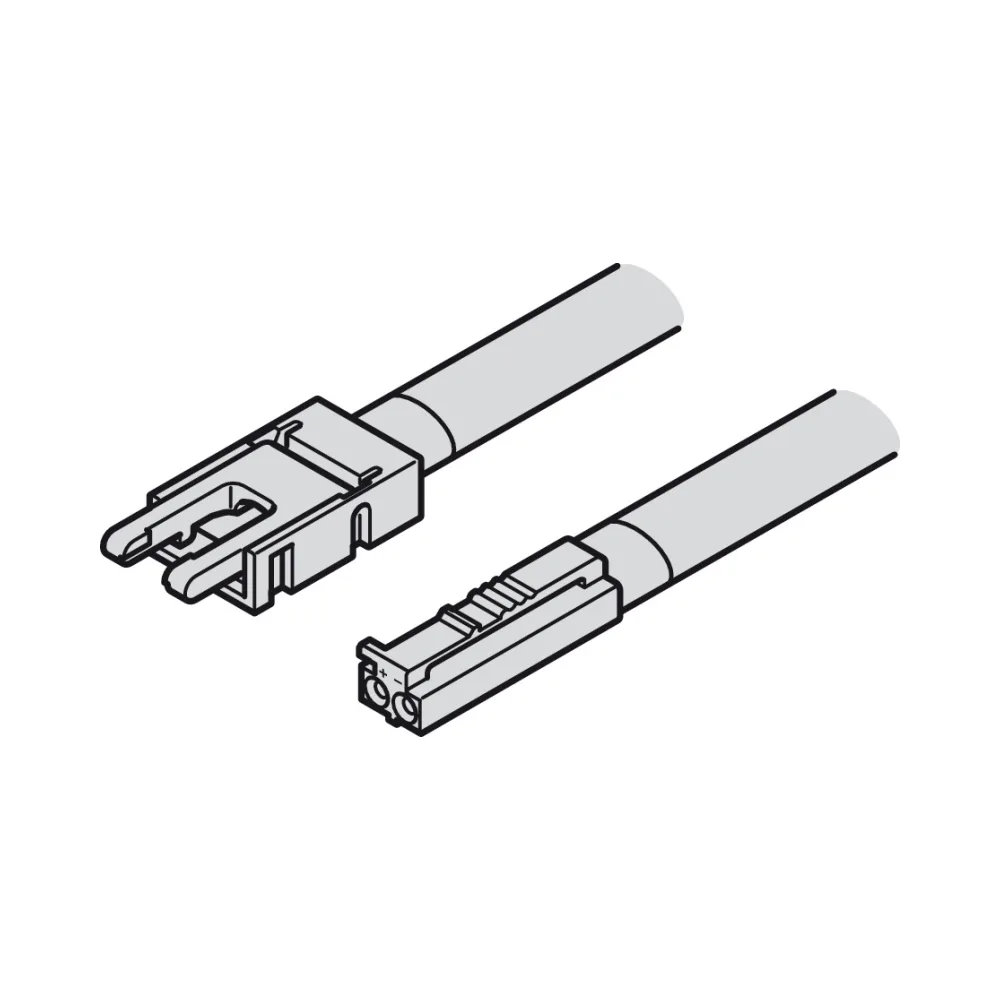

One end features a Loox5 2-pin 24V plug for connection to the driver, while the opposite end uses a clip connection designed for 8mm monochrome Loox5 LED strip. When used as specified, the connecting lead provides an IP20 degree of protection.
Key Features
- Driver-to-light connecting lead for Häfele Loox5 lighting systems
- Designed for Loox5 monochrome COB flexible strip light LED 3069
- Suitable for 8mm monochrome COB LED strip
- 2000mm lead length
- 24V nominal voltage
- 5A current carrying capacity
- Loox5 2-pin 24V plug input
- Clip connection for 8mm monochrome LED strip
- 10mm clip width
- 18 AWG wire cross section
- Provides IP20 protection when used as specified
- Plastic construction
Quick Connection for Loox5 COB LED Strip
The Häfele Loox5 Driver to Light Lead for 8mm LED COB Strip Light provides a convenient connection between a compatible Loox5 24V driver and monochrome COB strip lighting. The clip connection allows the strip to be connected without soldering, helping to simplify installation and reduce connection time.
Designed for 24V Monochrome Loox5 Lighting
This lead is specifically suitable for Loox5 monochrome COB 8mm strip lighting. With a current carrying capacity of 5A and 18 AWG conductors, it is designed to form part of a compatible 24V Häfele Loox5 lighting installation.
Installation Details

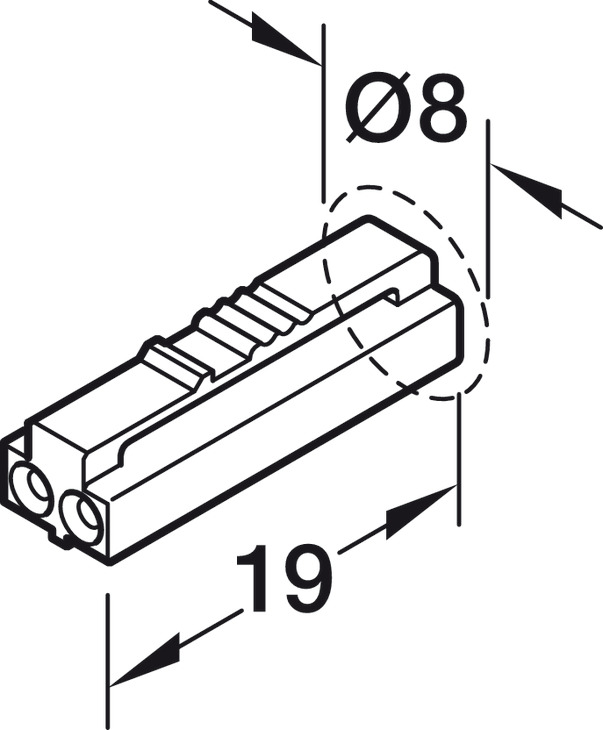

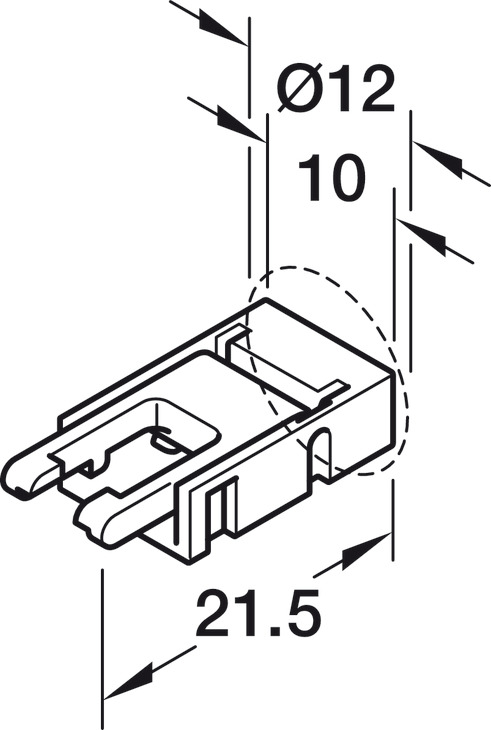

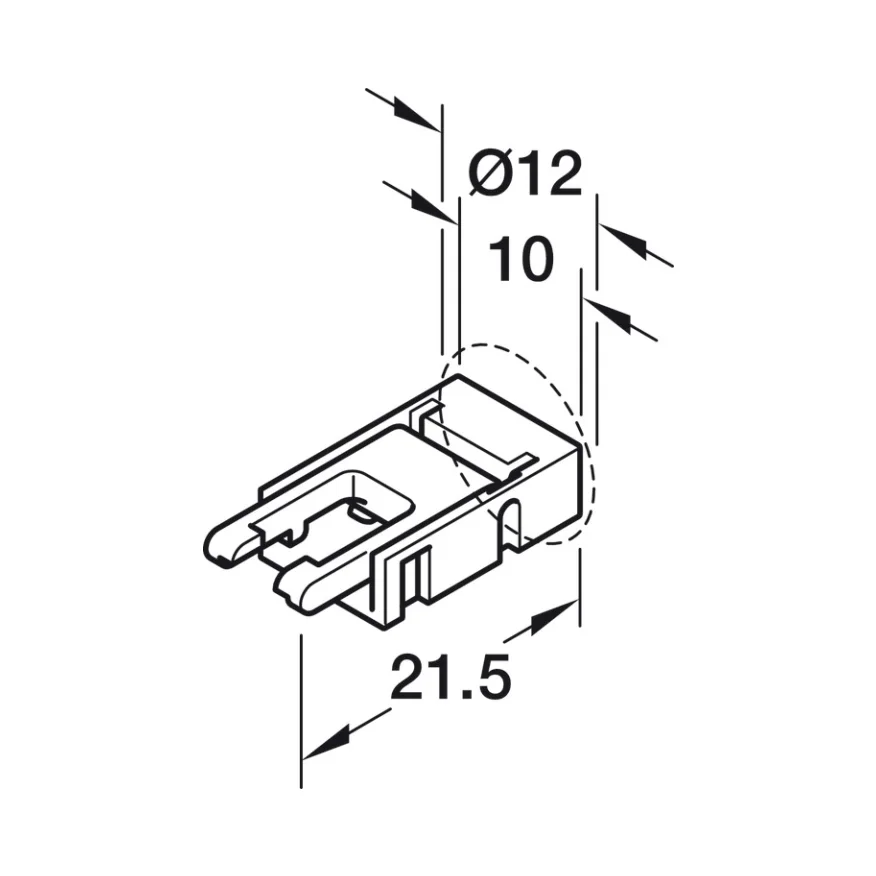

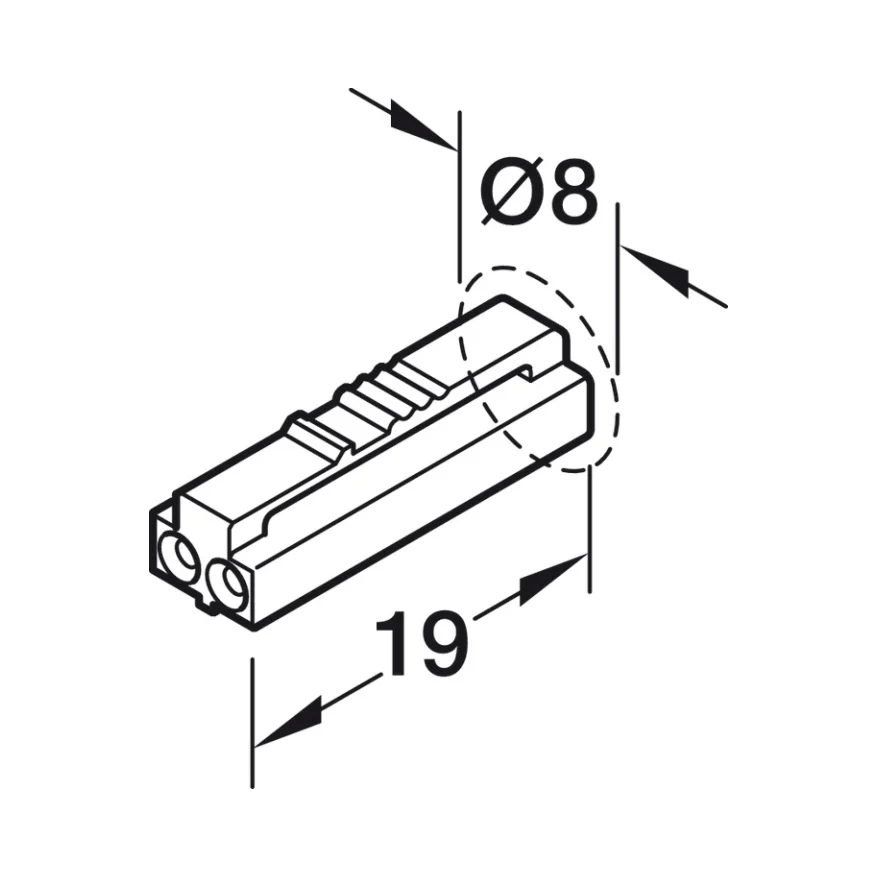

The Loox5 2-pin plug requires an 8mm drill hole, while the strip-light clip requires a 12mm drill hole. The 2000mm cable length provides flexibility when positioning the LED strip away from the driver or distribution point.
Technical Specifications
| Brand | Häfele |
| Range | Loox5 |
| Product Type | Driver to Light Lead |
| Length | 2000mm |
| Colour System | Monochrome |
| Nominal Voltage | 24V |
| Current Carrying Capacity | 5A |
| Input Connection | 1 x Loox5 2-pin 24V plug |
| Strip Connection | 1 x clip for Loox5 8mm monochrome LED strip |
| Clip Width | 10mm |
| Wire Cross Section | 18 AWG |
| Material | Plastic |
| Plug Drill Hole | 8mm |
| Clip Drill Hole | 12mm |
| Suitable For | Loox5 monochrome COB 8mm LED strip |
| Degree of Protection | IP20 when used with this connecting lead |
