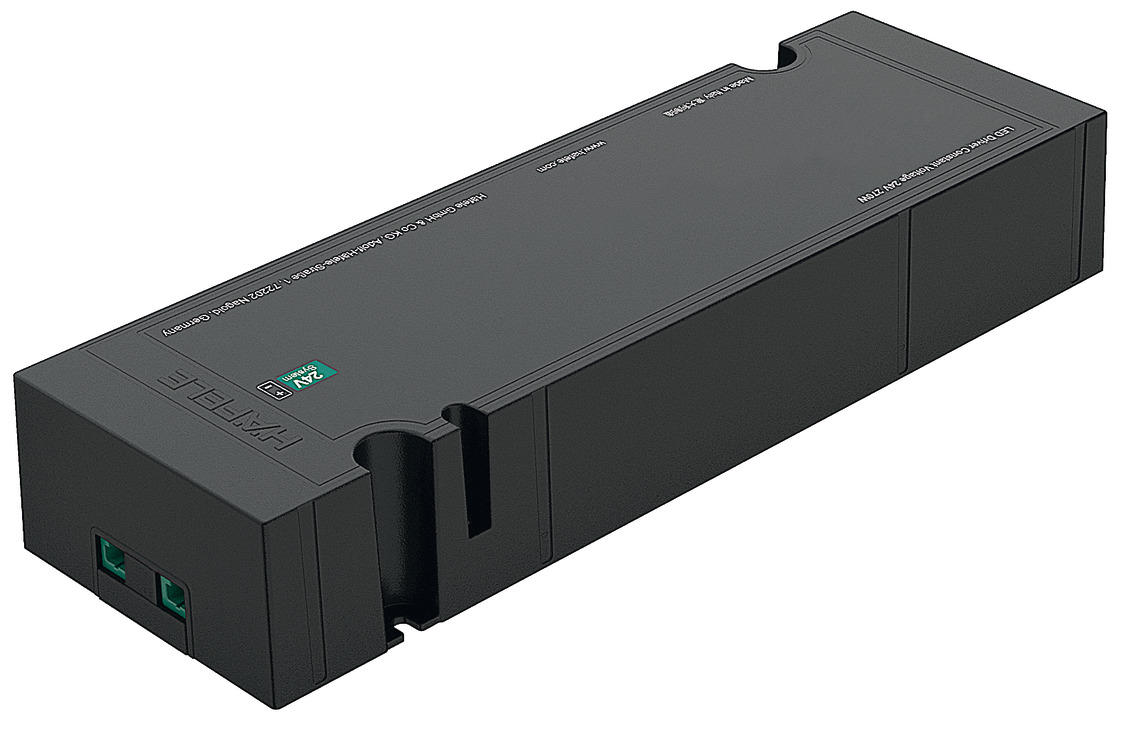

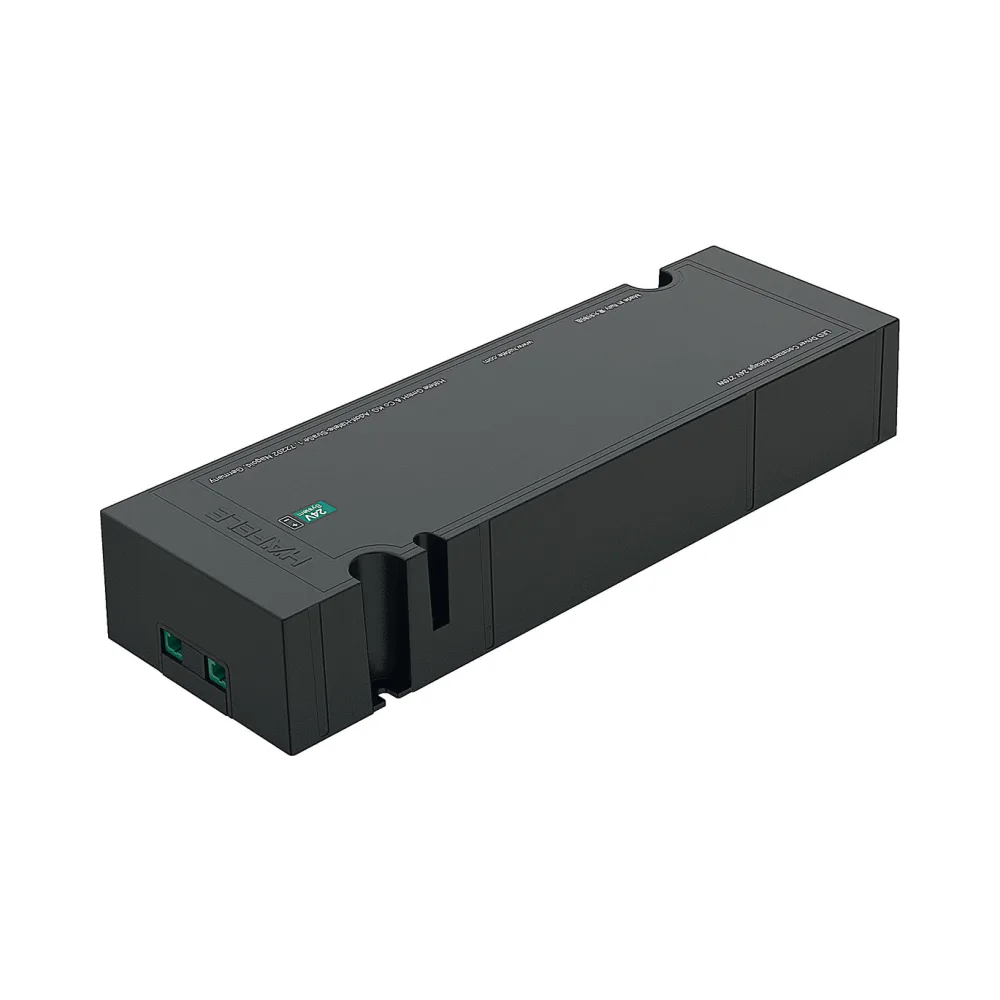

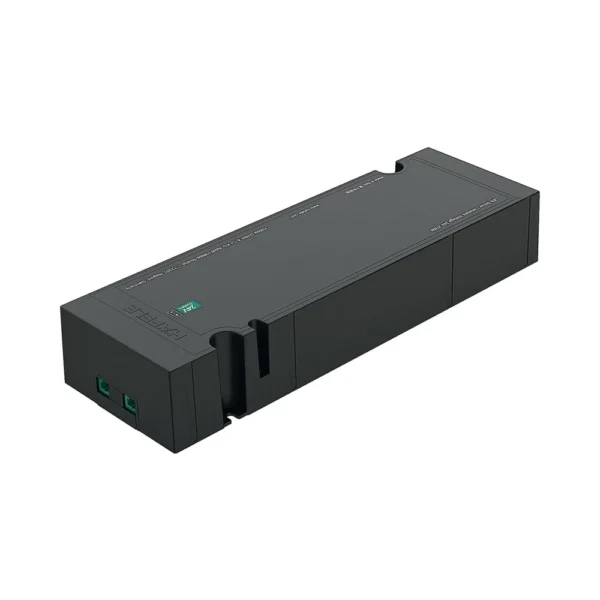

Hafele Loox5 Constant Voltage LED Driver without Mains Lead – 24V 240W (2x120W)
- With efficiency factor correction
- With power factor correction
| Mains voltage | 200 – 240 V |
|---|---|
| Plug mains voltage | F (DE Schuko) 3-pin |
| Output power | 240 W (2×120 W) |
| Efficiency factor correction (PFC) | Yes |
| Ambient temperature | -25–45 °C |
| Dim. (L x W x H) | 234 x 75 x 38 mm |
| Output voltage | 24 V DC |
| Output current | 5 A |
| Efficiency at 230 V full load | 0.94 |
| Power consumption at 230 V no load | 0.42 W |
| Weight | 568 g |
| Area of application | LED |
| Version | With overload protection |
| Colour/finish | Black |
| Connections | 2 x sockets, Loox5 2-pin 24 V |
| Secondary side circuit | Parallel connection |
| Installation | Screw fixing |
| Installation reference | Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening. |
Maximum lead length for the Loox5 driver to the light is 10 m.
Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights had been determined with the rated output voltage of the driver (12 V or 24 V)
