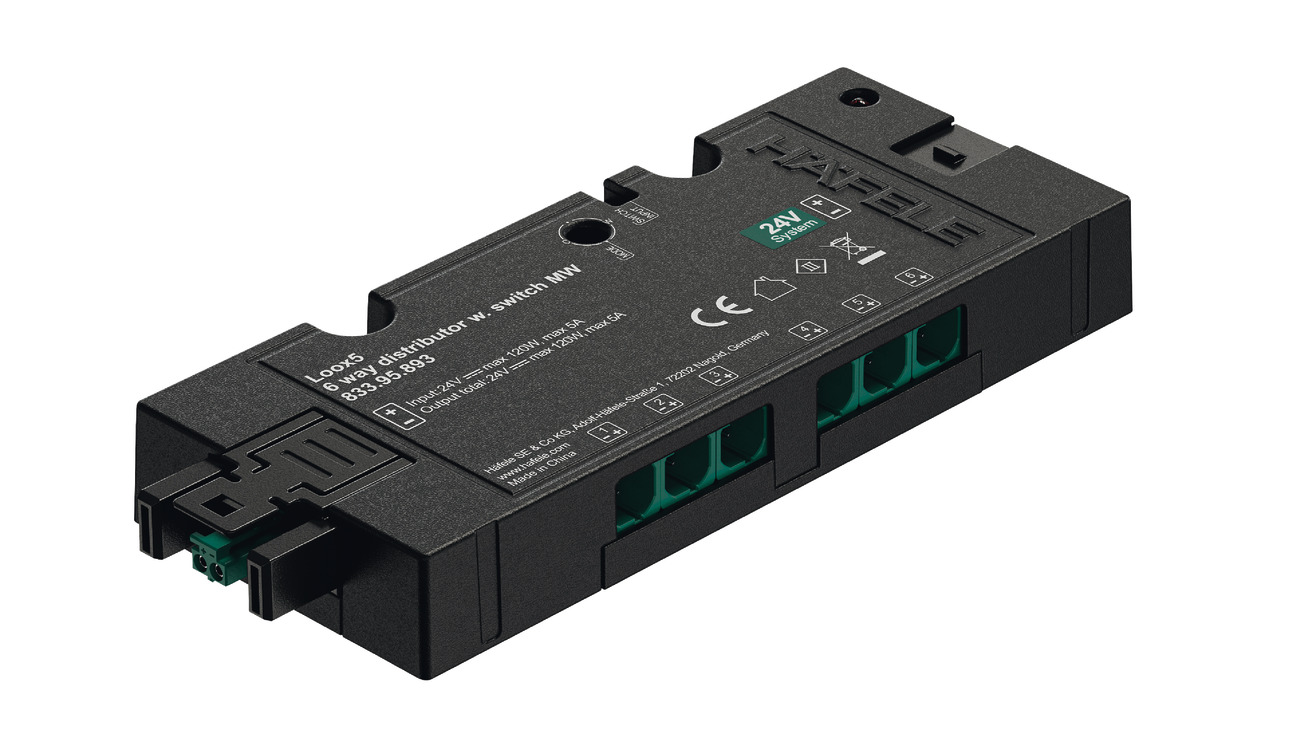

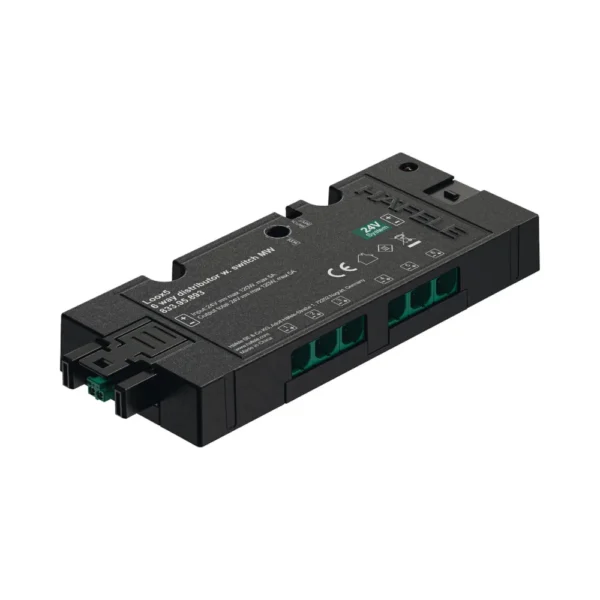

Hafele Loox5 6-Way Box to Box Multi-White Distributor with Switching Function – 24V 120W

SKU: 83395893

Delivery usually within 1-2 Working Days*

Check stock

With switching function for 1 switch

Connect multi-white lights directly – without adapters

Four pre-settable light colours (2700 K/3000 K/4000 K/5000 K)

Box to box plug-in connection

Dispatch Info
This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.
Technical Support
Hafele Technical Support - 0800 181 4290

£17.25 + VAT

(incl. VAT £20.70)

Category: Supplier:

Description

Hafele Loox5 6-Way Box to Box Multi-White Distributor with Switching Function – 24V 120W

  • With switching function for 1 switch
  • Connect multi-white lights directly – without adapters
  • Four pre-settable light colours (2700 K/3000 K/4000 K/5000 K)
  • Box to box plug-in connection

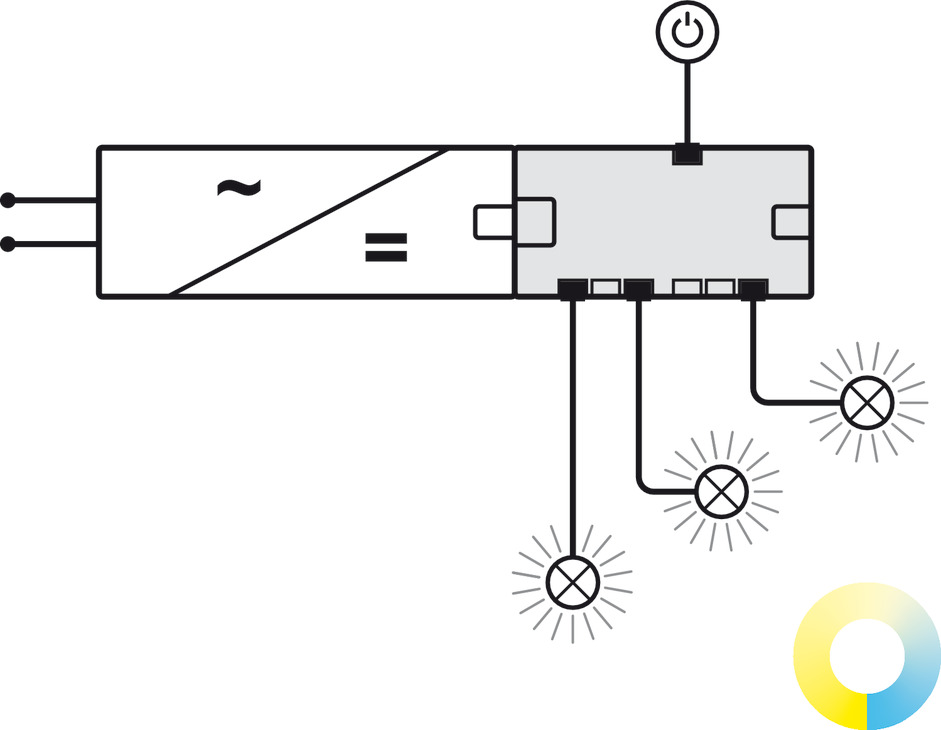

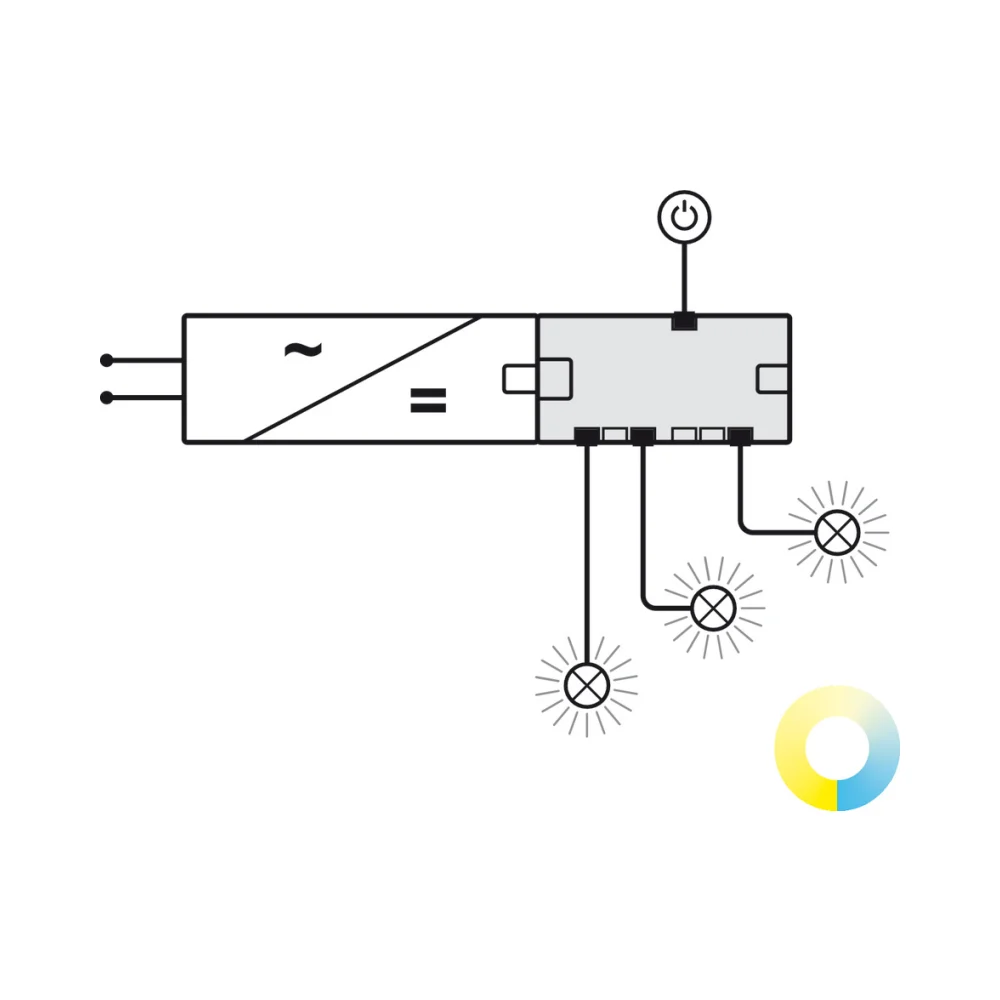

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.

Low voltage plug Loox5 2-pin 24 V
Low voltage socket Loox5 2-pin 24 V, Loox5 2-pin 24 V box to box
Input ports 1 x plug, Loox5 2-pin 24 V box to box
Connections 1 x socket, Loox5 2-pin 24 V box to box
Connected output ports 6 x sockets, Loox5 3-pin MW 24 V
Control input ports 1 x socket, Loox switch
Power rating 120 W
Voltage 24 V
Colour system MW
Area of application For switching 3-pin multi-white lights on/off and dimming (0-100%)
Version Box to box, multi-white, 3-pin, with switching function for 1 switch
Material Plastic
Colour/finish Black
Dim. (L x W x H) 120 x 50 x 16 mm
Switching function With switching function
Standby power consumption 0.25 W
Häfele Lifetime Guarantee 7 years
