Hafele Loox5 6-Way Box to Box Distributor without Switching Function – 24V 90W

SKU: 83377832

Delivery usually within 1-2 Working Days*

Check stock

For use with Loox5 24 V lights and drivers

Without switching function

Dimensions (L x W x H): 120 x 50 x 16 mm

Plug connection box to box

Black plastic

Dispatch Info
This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.
Technical Support
Hafele Technical Support - 0800 181 4290

£4.15 + VAT

(incl. VAT £4.98)

Category: Supplier:

Description

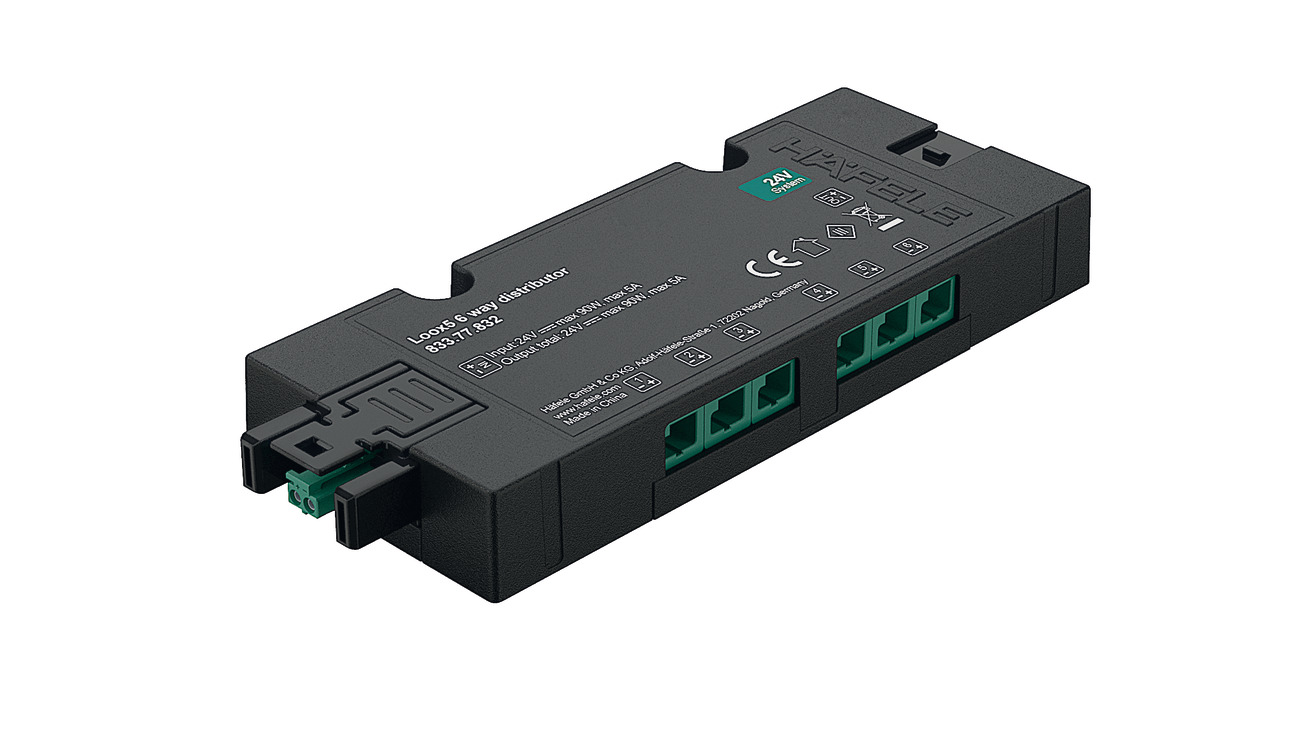

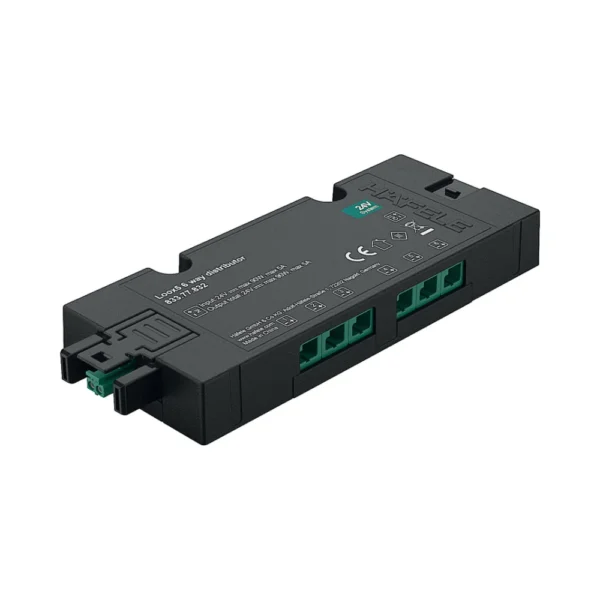

Hafele Loox5 6-Way Box to Box Distributor without Switching Function – 24V 90W

  • For use with Loox5 24 V lights and drivers
  • Without switching function
  • Dimensions (L x W x H): 120 x 50 x 16 mm
  • Number of connections:
    • 1x input port with box to box plug
    • 1x output port with box to box socket
    • 6x output ports device sockets
  • Black plastic
  • Plug connection box to box
  • Unswitched output ports with continuous current

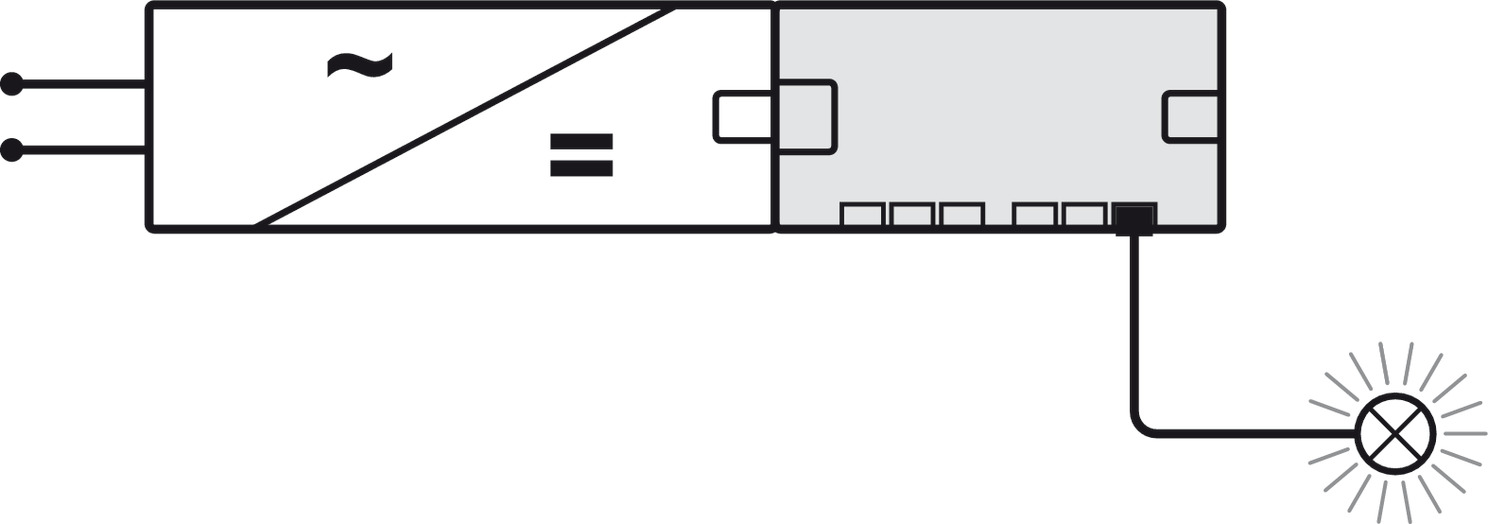

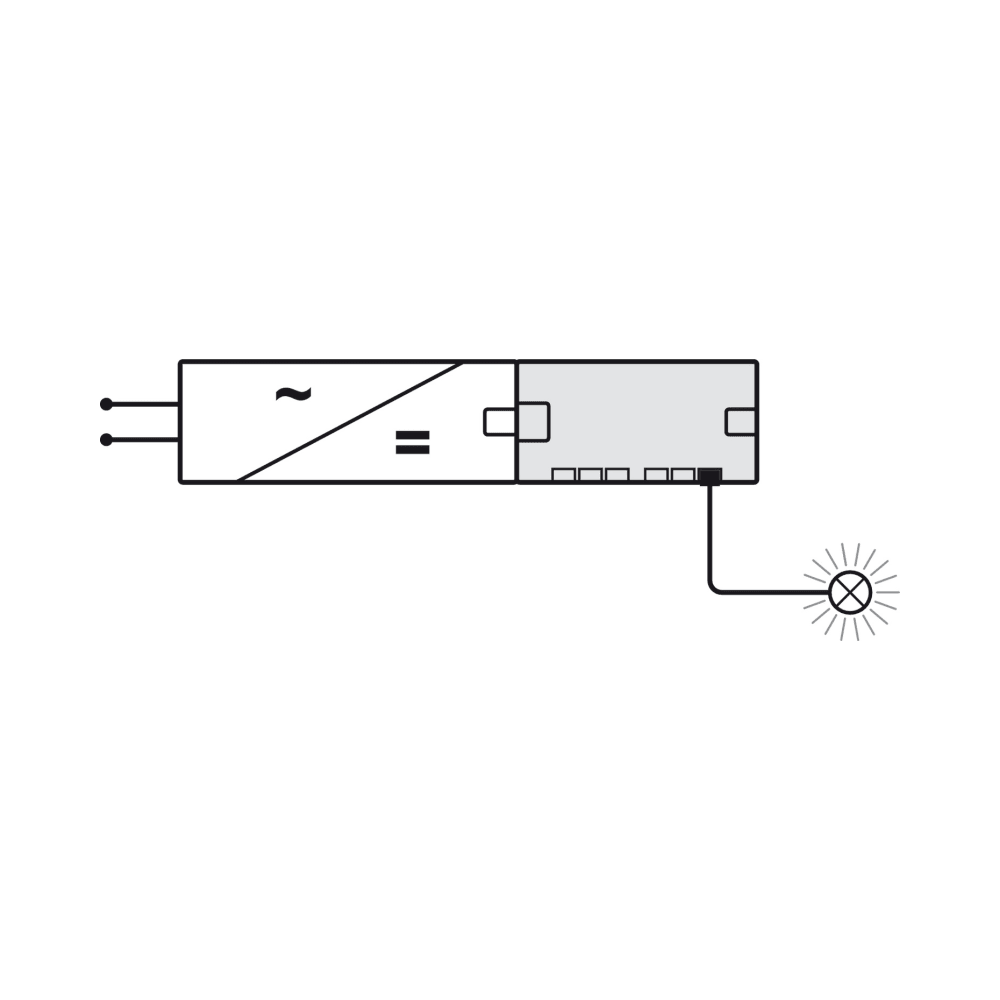

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.

Low voltage plug Loox5 2-pin 24 V box to box
Low voltage socket Loox5 2-pin 24 V box to box
Power rating 90 W
Voltage 24 V
Version Box to box without switching function
Material Plastic
Colour/finish Black
Dim. (L x W x H) 120 x 50 x 16 mm
Häfele Lifetime Guarantee 7 years
