Description
Control Your Loox Lighting from Multiple Switch Positions
🔧 Häfele Loox LED Multi Switch Adapter – Up to 3 Switches, 2 Modes

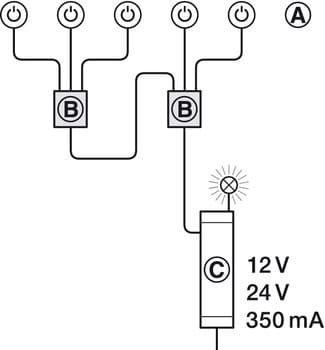

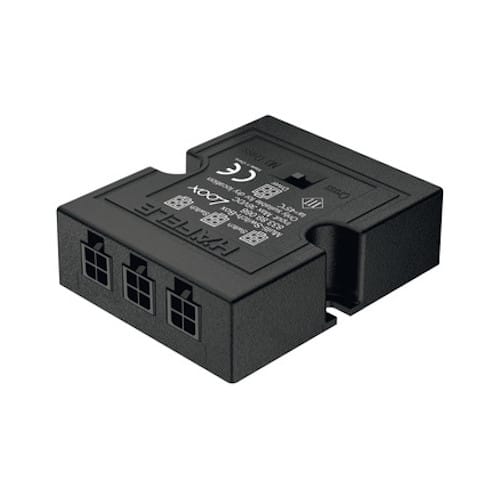

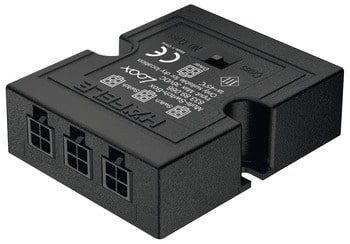

The Häfele 833.89.066 Loox Multi Switch Adapter allows a single Loox LED driver to be operated from up to three different switches, making it a smart solution for custom furniture lighting, wardrobes, or built-in cabinetry.

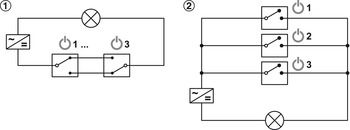

It supports two operating modes via a toggle switch:
- Cross Circuit Mode: On/off switching from multiple locations.
- OR Circuit Mode: Any switch turns the light on; to turn it off, all switches that were activated must be pressed again.
The unit is compact and easy to integrate into Loox plug-and-play systems, and it features a low standby power consumption of just 0.3W. Ideal for applications where flexible control and clean wiring are required.
⚠️ Note: Not compatible with Loox Dimmer 833.89.043.
🔑 Key Features – Häfele 833.89.066 Loox Multi Switch
- Connects up to 3 Loox switches to a single LED driver
- Two selectable operating modes (Cross or OR circuit)
- Toggle switch to change mode easily
- Enables switching from multiple positions
- Not compatible with dimmer 833.89.043
- Low standby power draw: 0.3W
- Compact form factor for easy installation
📐 Technical Specifications
- Product Code: 833.89.066
- Dimensions:
- Height: 16 mm
- Width: 45 mm
- Length: 55 mm
- Power Consumption (standby): 0.3 W
- System: Loox Plug-and-Play
- Mounting: Loose installation (e.g. inside cabinet, behind panel)
📦 What’s Included
- 1 × Häfele 833.89.066 Loox LED Multi Switch Adapter
✅ Why Choose This Product?
- Expand control flexibility in furniture and room lighting
- Maintain simple, tool-free integration with Loox systems
- Works perfectly for wardrobes, kitchen units, media walls, or mirror lighting
- 2 modes offer setup flexibility depending on layout and user preference
- Quality Hafele design with a 7-year Loox system guarantee
📝 Summary
The Häfele 833.89.066 Loox Multi Switch connects up to 3 switches to 1 driver and supports 2 control modes. Compact and efficient, it’s ideal for multi-point control in Loox lighting systems.
