Hafele 833.95.720 Loox5 Extension Lead

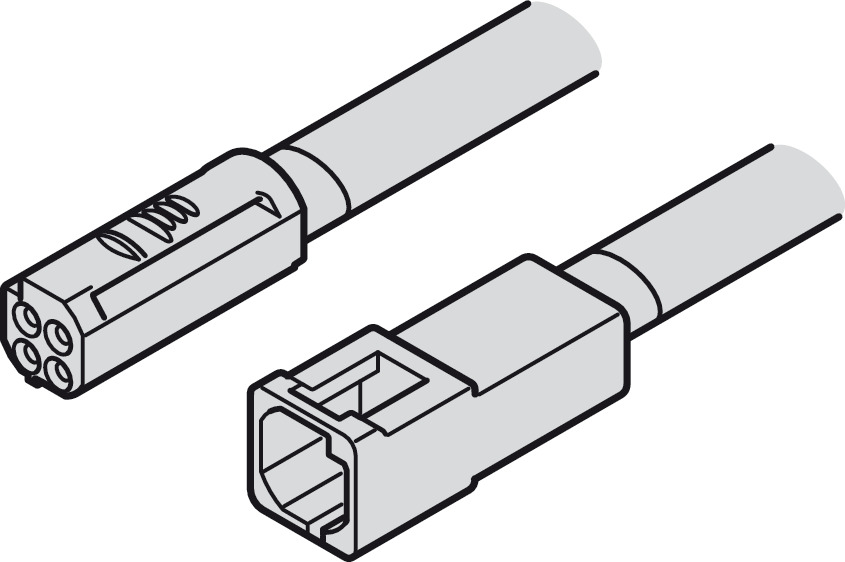

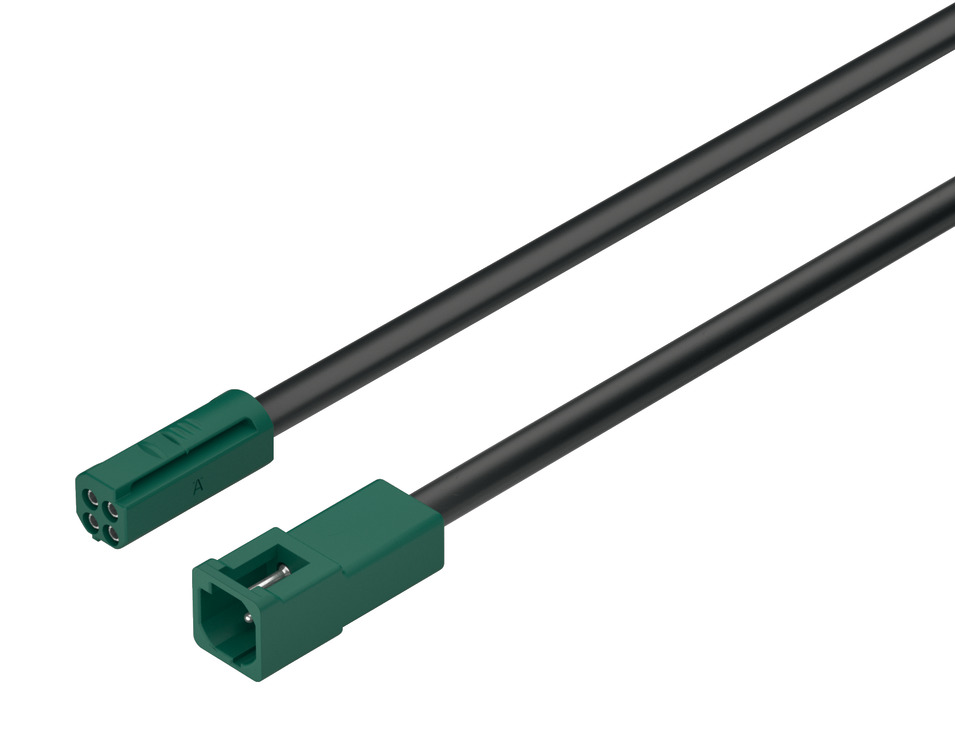

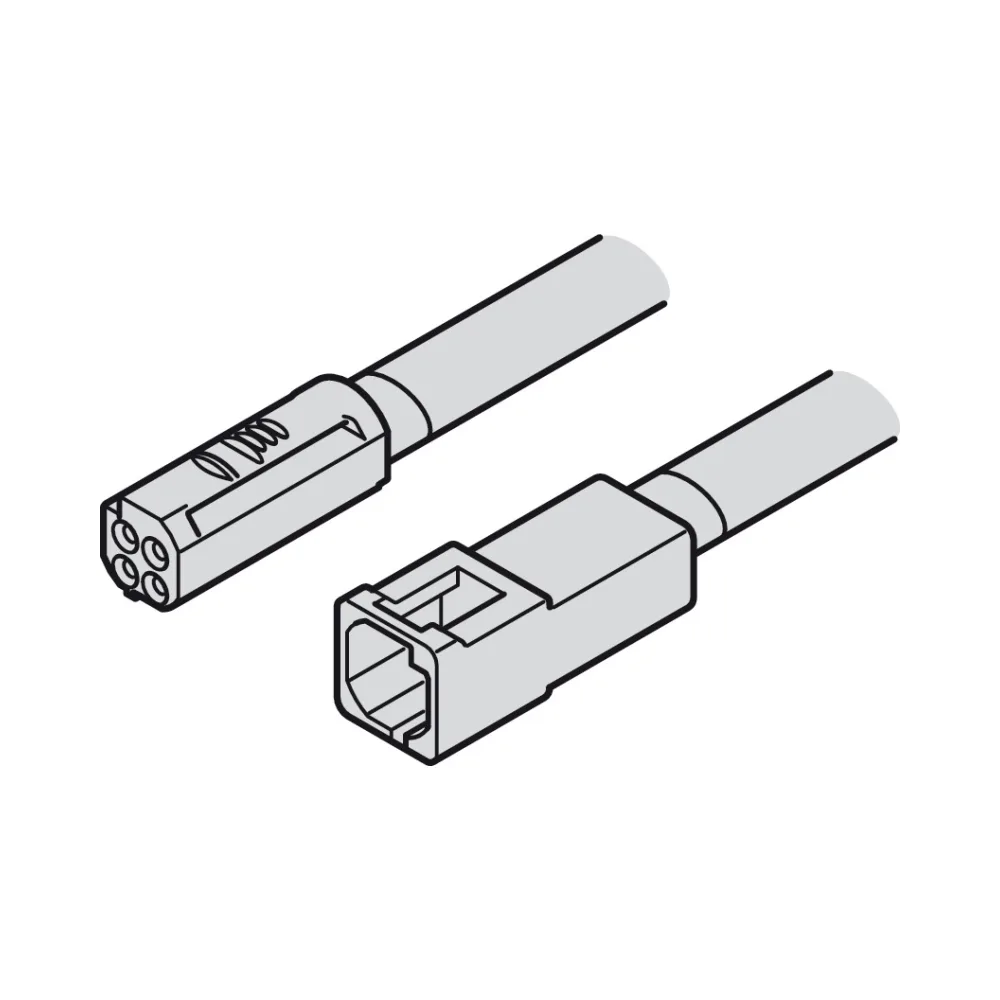

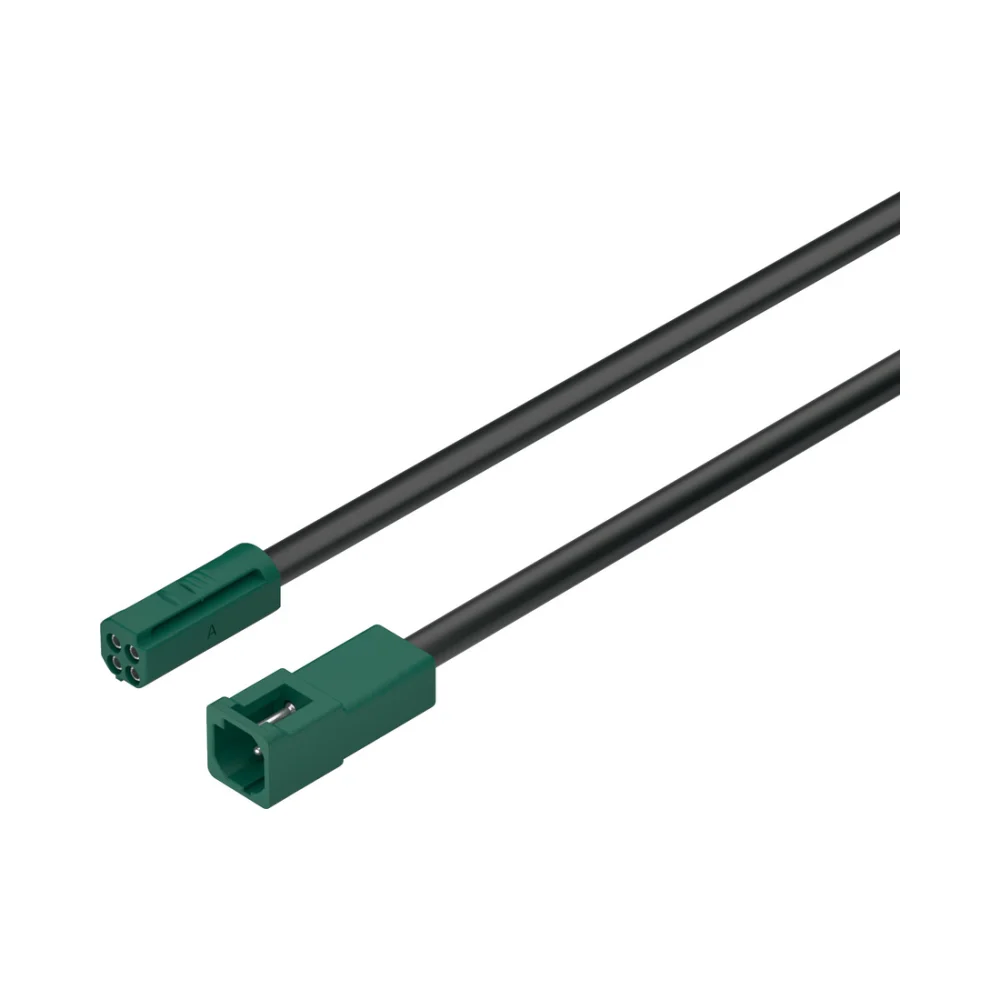

Hafele 833.95.720 Loox5 Extension Lead is designed for extending the connection between compatible Loox5 24V multi-white lights and LED drivers. It features a Loox5 3-pin multi-white plug at one end and a matching 3-pin socket at the other. The Hafele 833.95.720 Loox5 Extension Lead has a cable length of 2000mm, a current-carrying capacity of 3.5A and 20 AWG conductors. Its plug requires a 9mm drill hole, while the socket requires a 13mm drill hole.
Key Features – Hafele 833.95.720 Loox5 Extension Lead
- For compatible Loox5 24V multi-white lights and drivers
- Loox5 3-pin multi-white plug and socket connections
- 2000mm cable length
- 3.5A current-carrying capacity
- 20 AWG cable conductors
- Three-lead construction
- 9mm plug drill hole diameter
- 13mm socket drill hole diameter
Technical Data
| Product code | 833.95.720 |
|---|---|
| Product type | LED extension lead |
| System | Hafele Loox5 |
| Colour system | Multi-White |
| Input port | 1 x plug, Loox5 3-pin MW 24V |
| Connection | 1 x socket, Loox5 3-pin MW 24V |
| Nominal voltage | 24V |
| Cable length | 2000mm |
| Current-carrying capacity | 3.5A |
| Wire cross-section | 20 AWG |
| Material | Plastic |
| Number of leads | 3 |

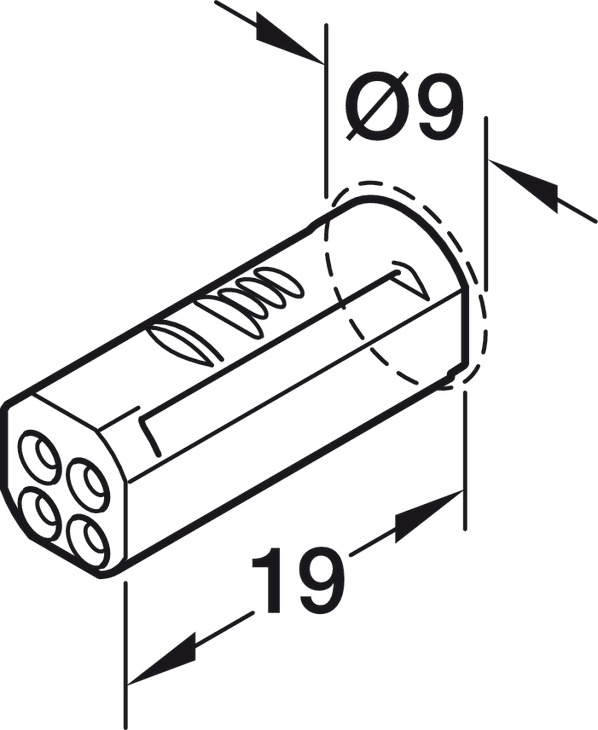

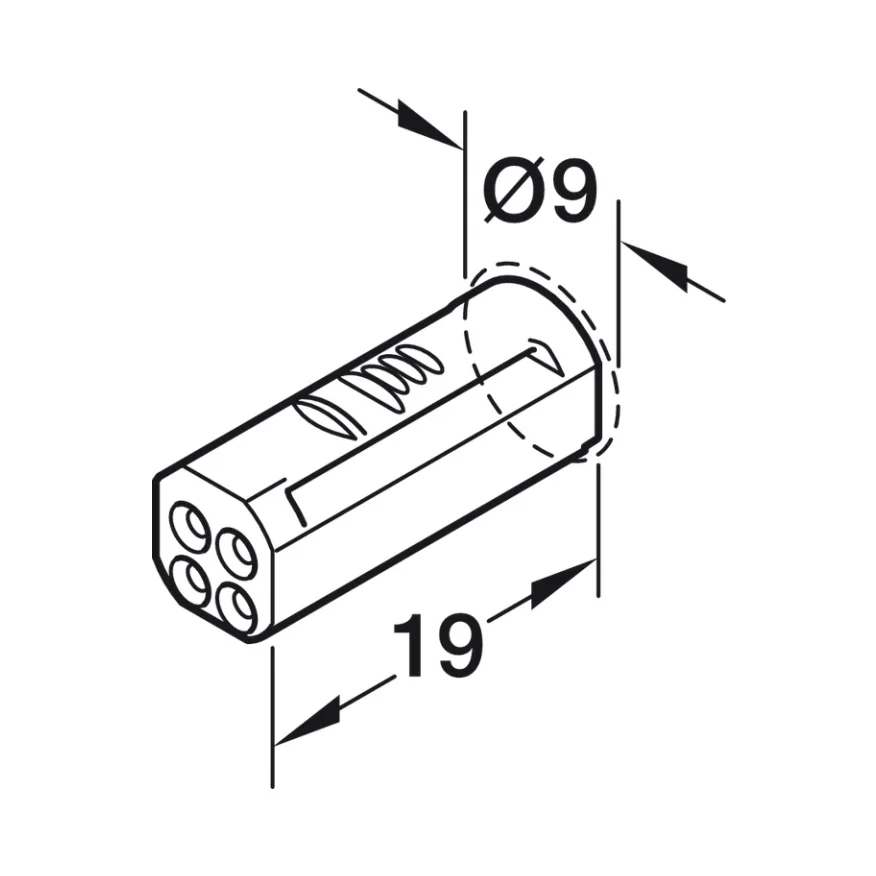

| Plug drill hole diameter | 9mm |

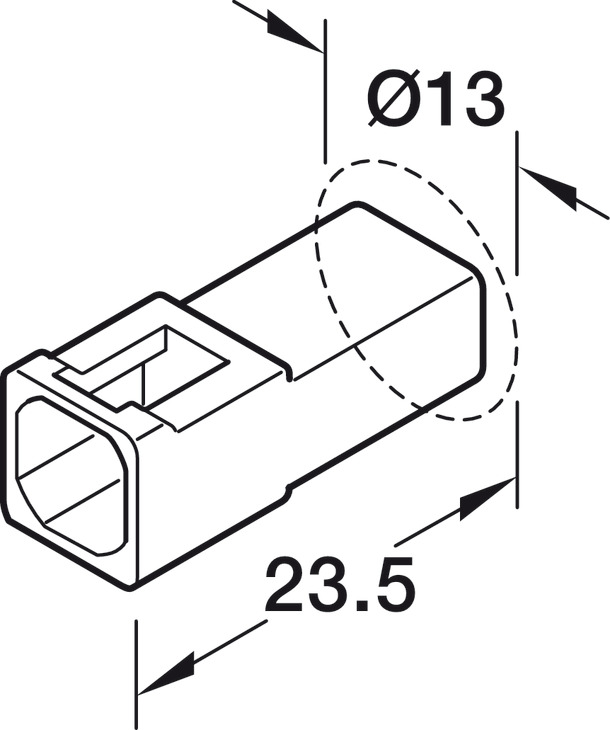

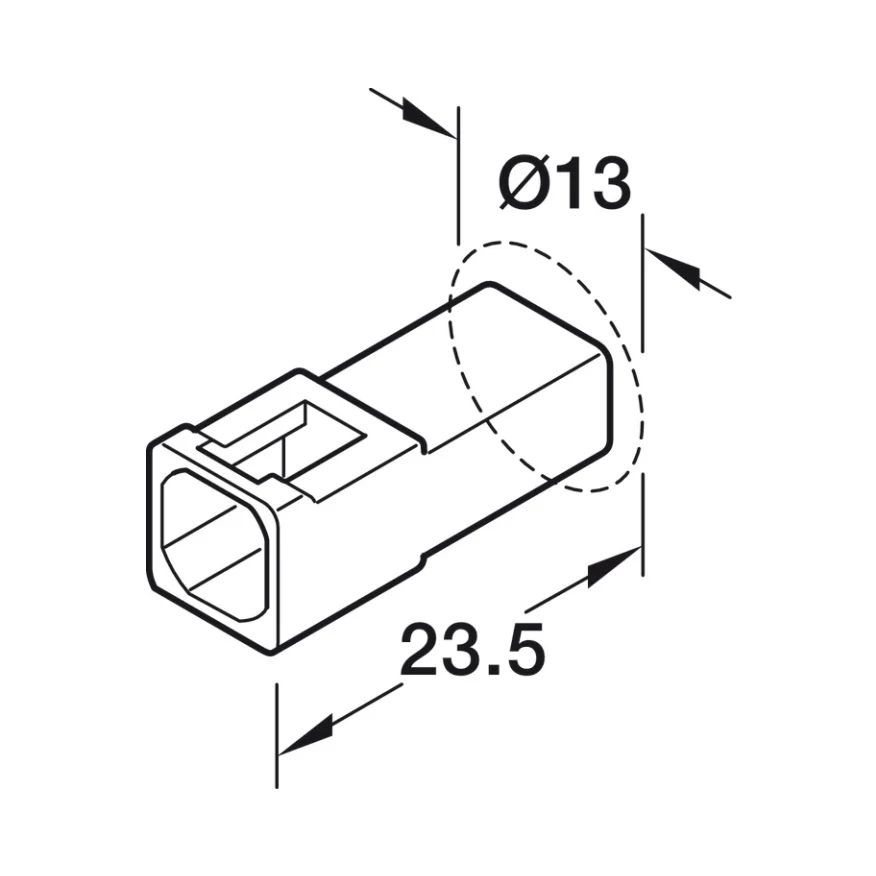

| Socket drill hole diameter | 13mm |
| Hafele Lifetime Guarantee | 7 years |
