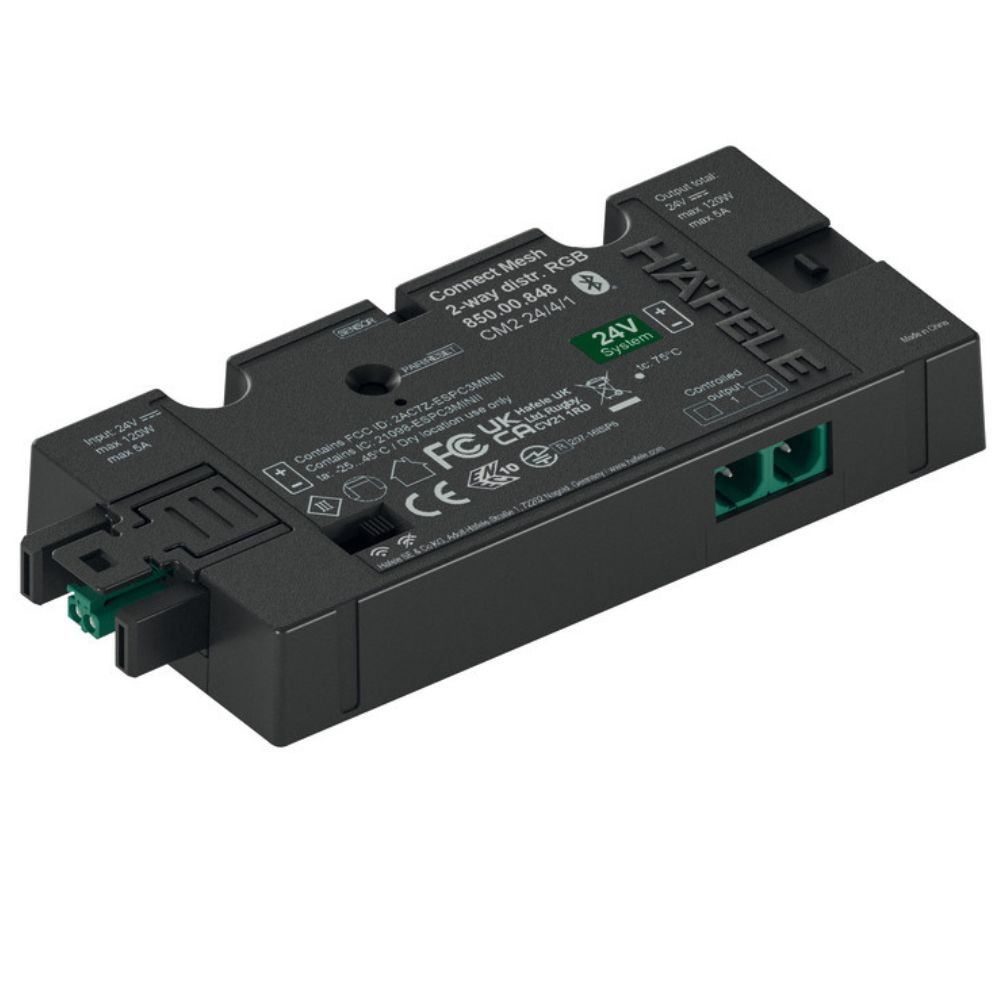

Hafele 850.00.848 Loox5 24V Connect Mesh RGB Distributor
The Hafele 850.00.848 Loox5 24V Connect Mesh RGB Distributor provides wireless control for RGB Loox5 lighting systems. Using Bluetooth Connect Mesh technology, lighting can be switched, dimmed and colour adjusted through the Connect Mesh mobile app.
This 2-way distributor connects two RGB lighting outputs that operate together as one channel. It is suitable for cabinet, furniture and decorative lighting installations.
Connect Mesh RGB Lighting Control
- Bluetooth Connect Mesh lighting control
- On/off switching and dimming
- RGB colour control
- Two RGB outputs controlled together
- Compatible with Loox switches and sensors
Loox5 System Integration
- 2 × Loox5 4-pin RGB output sockets
- 1 × Loox5 2-pin 24V input connection
- Box-to-box connection to Loox driver
- Manual wired switching input option
Technical Specifications
- Brand: Hafele
- Article Number: 850.00.848
- System: Connect Mesh
- Voltage: 24V
- Outputs: 2 × Loox5 4-pin RGB sockets
- Power Rating: 120W
- Dimensions: 115 × 50 × 16 mm
- Network Range: 5 m
