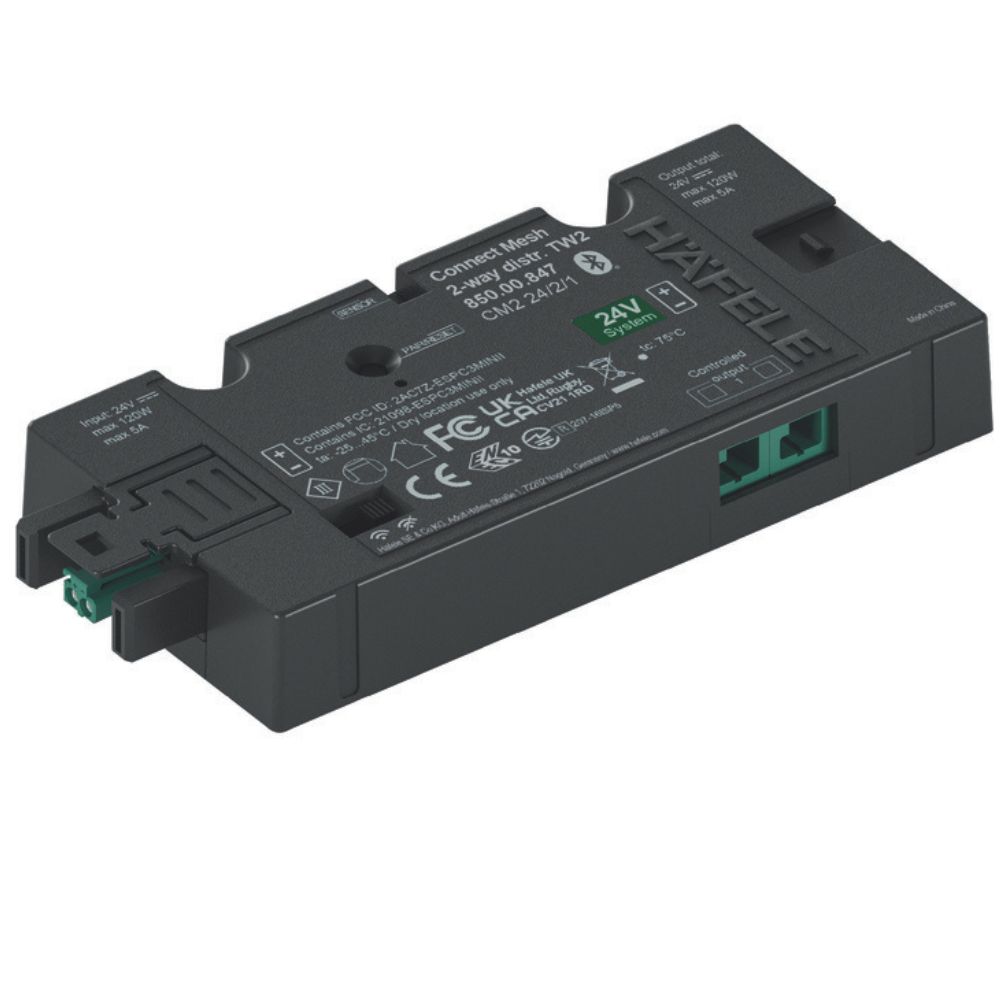

Hafele 850.00.847 Loox5 24V Connect Mesh Distributor
The Hafele 850.00.847 Loox5 24V Connect Mesh Distributor provides smart control for tunable white Loox5 lighting systems. With integrated Bluetooth connectivity and compatibility with the Häfele Connect Mesh ecosystem, lighting can be switched, dimmed and colour temperature adjusted using the Connect Mesh mobile app.
This 2-way distributor allows two lighting outputs to be connected and controlled together as a single channel, providing flexible lighting control for cabinet, furniture and display lighting installations.
Connect Mesh Smart Lighting Control
The distributor works with the Häfele Connect Mesh App available for Apple iOS and Android devices. The app enables wireless control of lighting functions including switching, dimming and colour temperature adjustment for connected lighting systems.
- Bluetooth Connect Mesh lighting control
- Switching and dimming from 0–100%

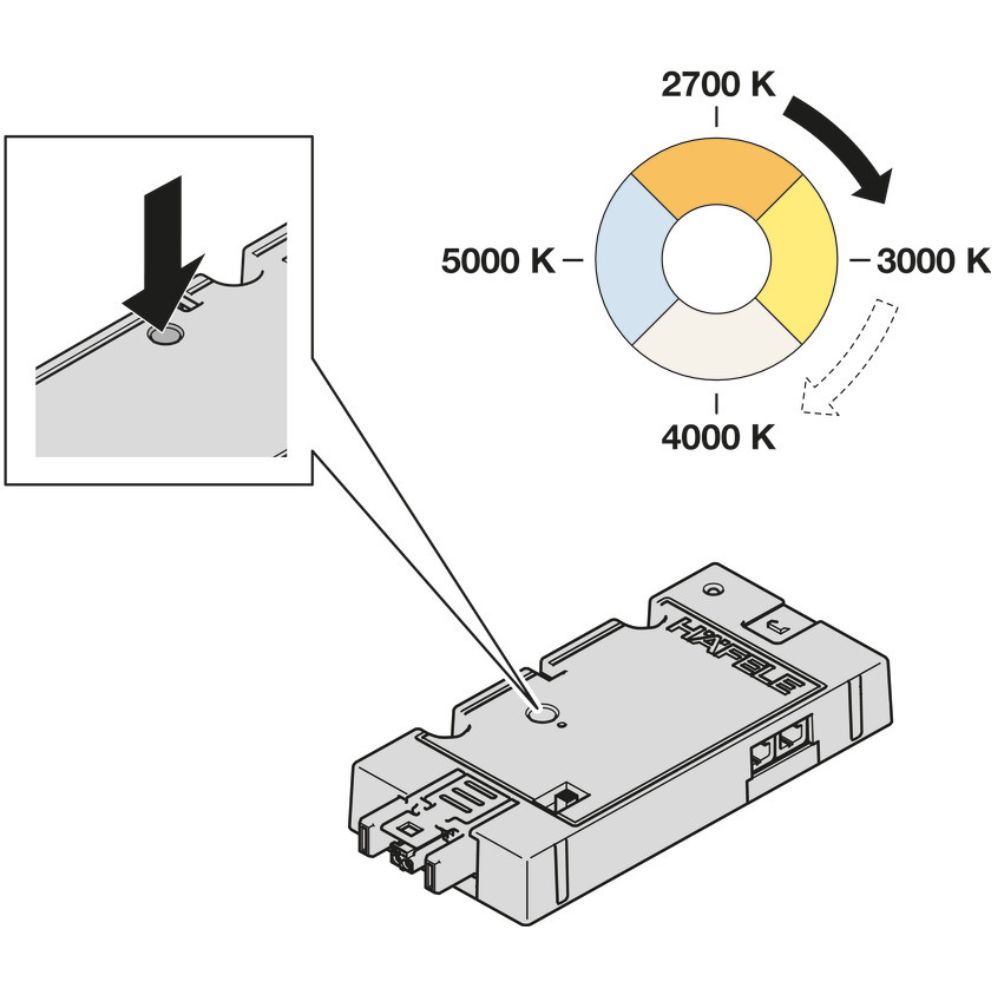

- Tunable white colour temperature control
- Two outputs controlled together as one channel
- Compatible with Loox switches and sensors
Flexible Loox5 Lighting Integration
The Hafele 850.00.847 distributor connects directly to Loox5 drivers using box-to-box connectors. It can also operate with manual wired switching when used with Loox switches or sensors.
- 2 x Loox5 2-pin MW output sockets
- 1 x Loox5 2-pin input connection
- 1 x Loox switch control input
- Box-to-box connection to Loox driver
- Supports tunable white lighting systems
Applications
- Kitchen cabinet lighting
- Wardrobe and furniture lighting
- Retail display lighting
- Shelving illumination
- Integrated LED lighting installations
Technical Specifications
- Brand: Hafele
- Article Number: 850.00.847
- System: Loox5 Connect Mesh
- Voltage: 24V
- Outputs: 2 x Loox5 2-pin MW sockets
- Power Rating: 120W
- Lighting Type: Tunable white (multi-white)
- Dimming Range: 0–100%
- Dimensions: 115 x 50 x 16 mm
- Max Network Distance: 5 m
Guarantee
The Hafele 850.00.847 Loox5 24V Connect Mesh Distributor is covered by the Häfele Lifetime Guarantee, ensuring long-term reliability for professional lighting installations.
