Loox Motion Detector Adjustable Modular
Hafele 83389335
The Häfele 83389335 Loox Motion Detector provides automatic, hands-free lighting control with a soft on/off switching function. Designed to activate lighting based on movement, it offers an adjustable delay time of 5, 15, or 30 minutes. This motion detector is perfect for optimising energy use and enhancing convenience in various spaces.
Key Features of Häfele 83389335 Loox Motion Detector
- Automatic soft on/off switching for smooth light transitions
- Adjustable delay time: 5/15/30 minutes
- Recessed or surface-mounted installation options
- Comes with three color sleeves (white, grey, black) for easy customization
- Compact design for discreet integration into furniture or other spaces
Ideal For:

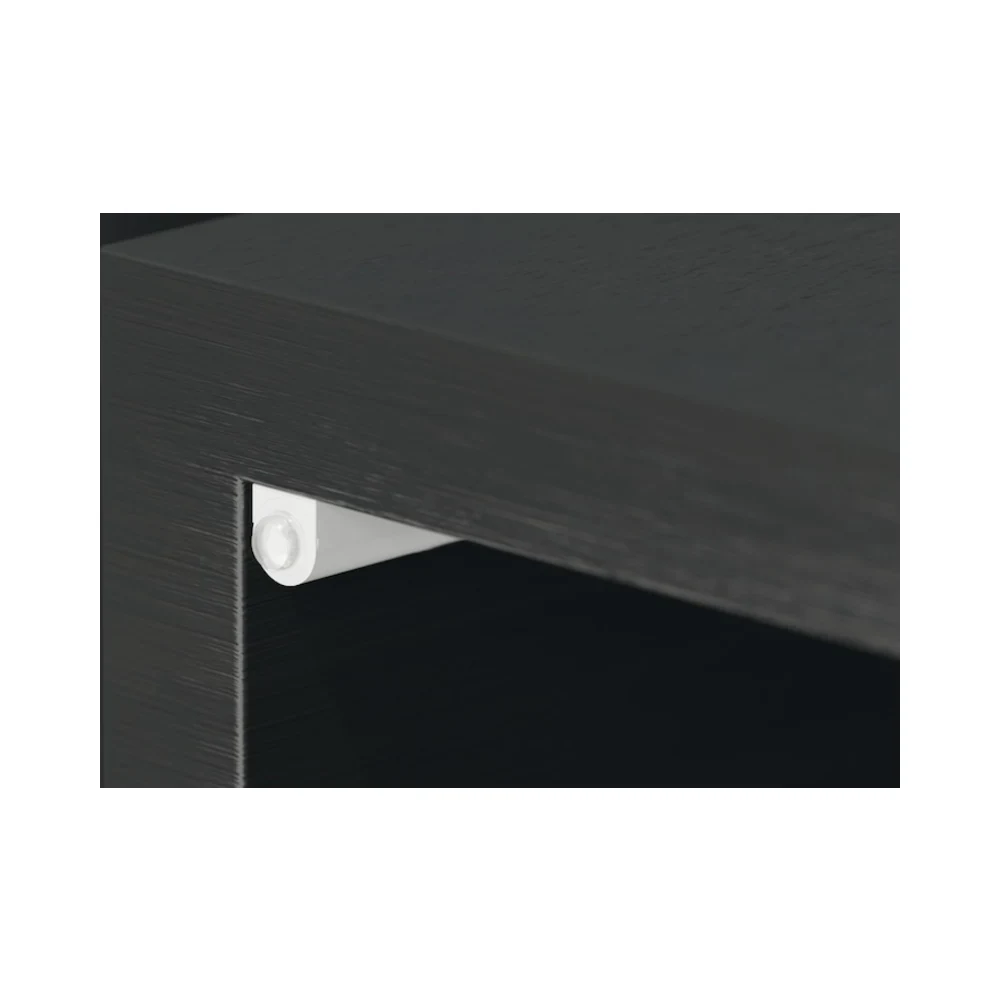

This motion detector is ideal for wardrobe lighting, cabinet lighting, or storage areas, where automatic light activation improves ease of use and energy efficiency.
Installation and Setup

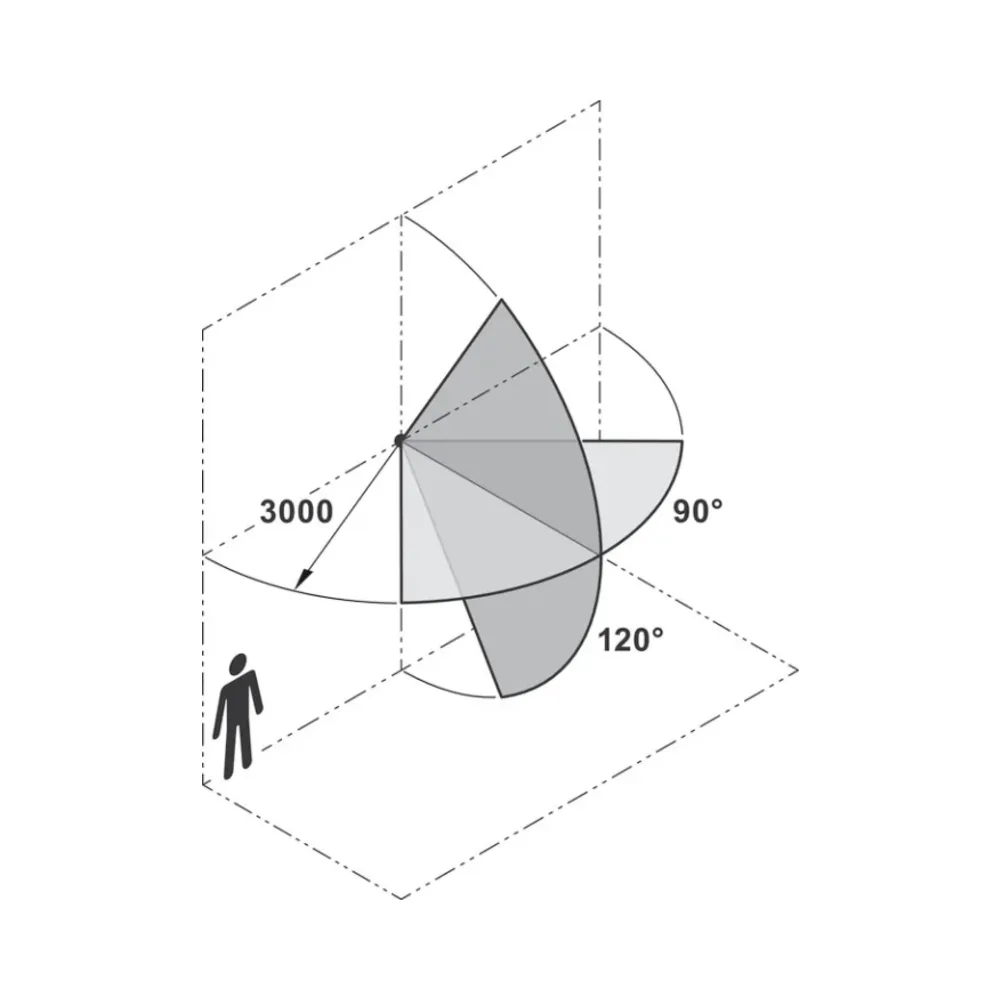

Thanks to the 12mm drill hole, installation is straightforward, whether recessed or surface mounted. The adjustable delay time can be customized through the integrated microswitch, allowing you to set it to 5, 15, or 30 minutes depending on your needs. The sensor range of 0-3000mm ensures effective detection in a variety of spaces, while the 90° sensor angle provides wide coverage.
Moreover, the sensor lens protrudes slightly, making it easy to install and position correctly.
Technical Specifications:
- Switching function: Soft on/off, automatic
- Delay time: Adjustable 5/15/30 minutes
- Drill hole: Ø 12mm
- Sensor range: 0-3000mm
- Sensor angle: 90° horizontal, 120° vertical
- Power consumption: 0.10W
- Material: Plastic
- Dimensions: Ø 12mm x 44.5mm
- Rated IP20 for indoor use

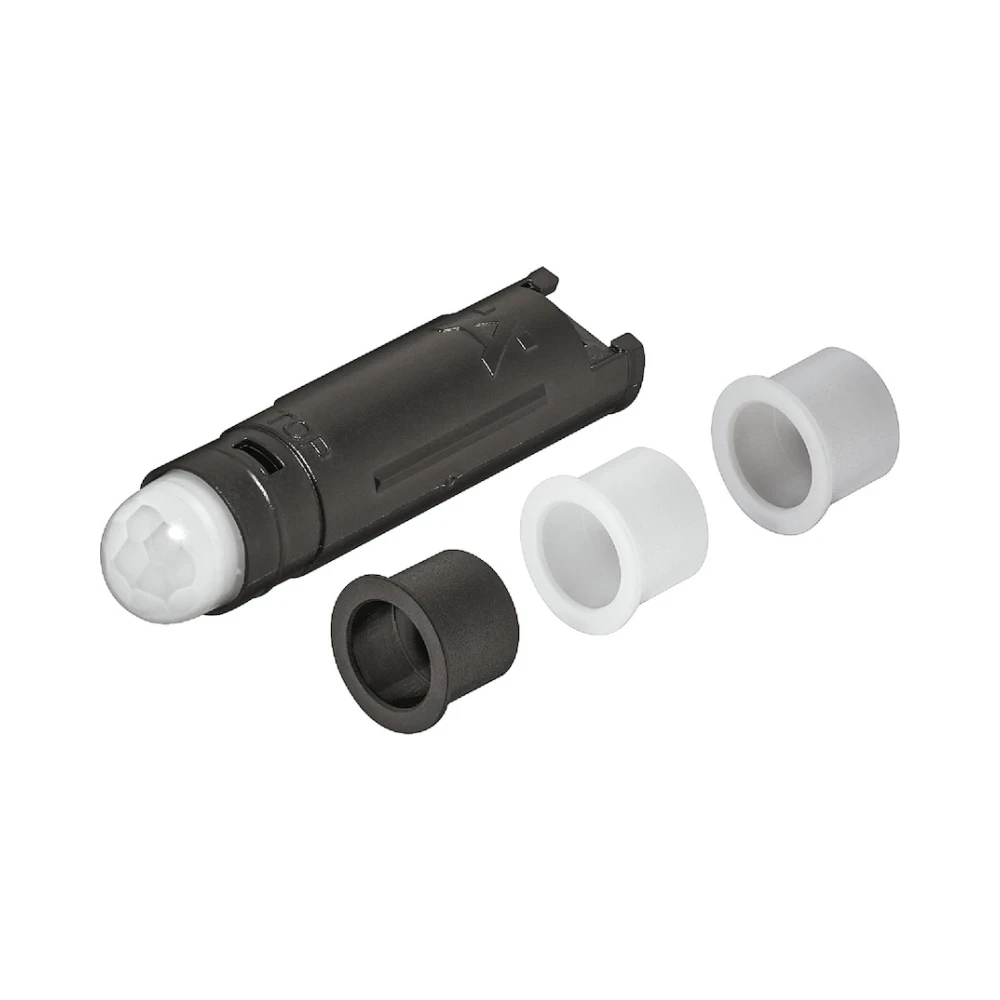

Supplied With:
- 1x Adjustable motion detector with black housing
- 3x Cover sleeves (white, grey, black) for customization
Order Reference:
To complete your installation, be sure to order the 2m lead with snap-in connector separately (Cat. No. 833.89.142) for use with modular switches.
Additional Information:
The motion detector works best in enclosed, dry rooms. Its adjustable delay time allows you to tailor the lighting to your preferences, making it ideal for spaces where lights should turn off after a set period.
Warranty Information:
This product is backed by the Häfele Lifetime Guarantee, ensuring long-lasting performance and reliability. While the product is covered for lifetime use in residential settings, commercial applications are protected under a 12-month warranty.
