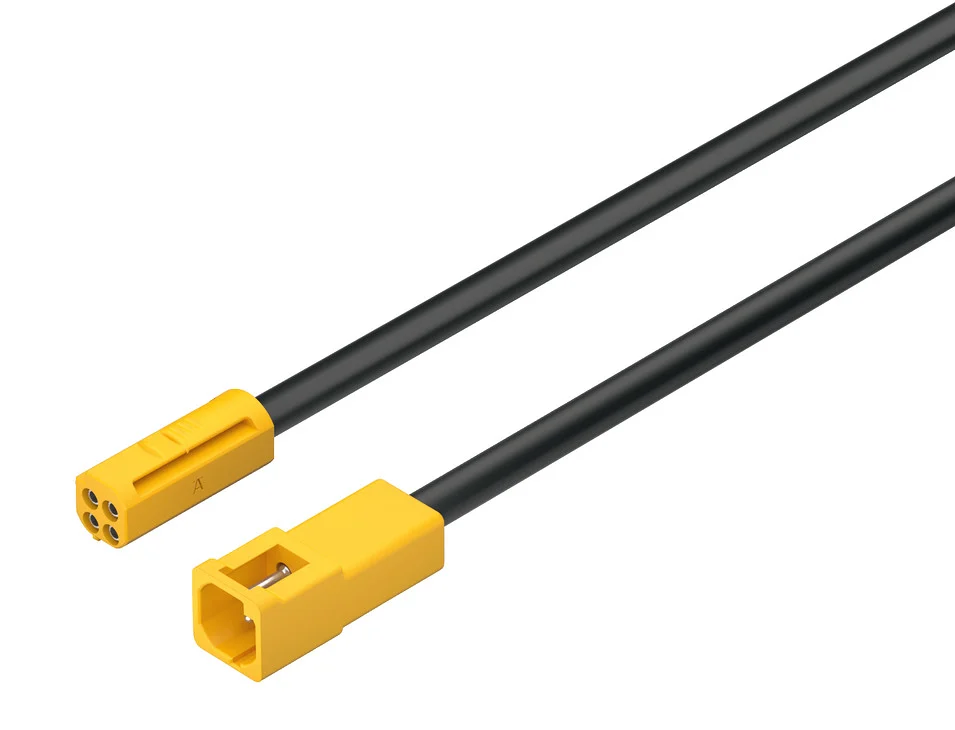

Hafele 833.95.715 Loox5 12V Tuneable White LED Extension Lead 2000mm
The Hafele 833.95.715 Loox5 12V Tuneable White LED Extension Lead 2000mm is designed for extending the connection between compatible Loox5 12V tuneable white lights and drivers. It features a 2000mm 20 AWG cable, a 3.5A current carrying capacity and Loox5 3-pin multi-white connectors. The plastic connector housings require a 9mm drill hole for the plug and a 13mm drill hole for the socket. Supplied with one plug and one socket, it is covered by the 7-year Häfele Lifetime Guarantee.
Key Features – Hafele 833.95.715 Loox5 12V Tuneable White LED Extension Lead
- For compatible Loox5 12V tuneable white lights and drivers
- 2000mm cable length
- 3.5A current carrying capacity
- 20 AWG wire cross section
- Loox5 3-pin multi-white 12V connectors
- Plastic connector housings
- 7-year Häfele Lifetime Guarantee
Technical Specifications
- Voltage: 12V
- Cable length: 2000mm
- Current carrying capacity: 3.5A
- Wire cross section: 20 AWG

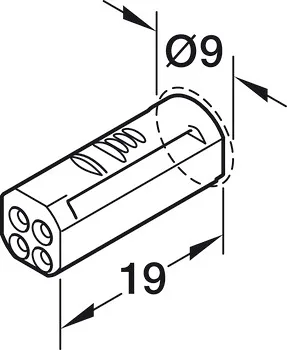

- Plug drill hole diameter: 9mm
- Socket drill hole diameter: 13mm
Installation Information
The maximum total lead length from the Loox5 driver to the connected light is 10 metres. Long cable runs combined with larger loads may cause voltage loss and a visible reduction in brightness.
Supplied With
- 1 x 2000mm extension lead
- 1 x plug
- 1 x socket
