Hafele 833.95.713 Loox5 12V LED Extension Lead

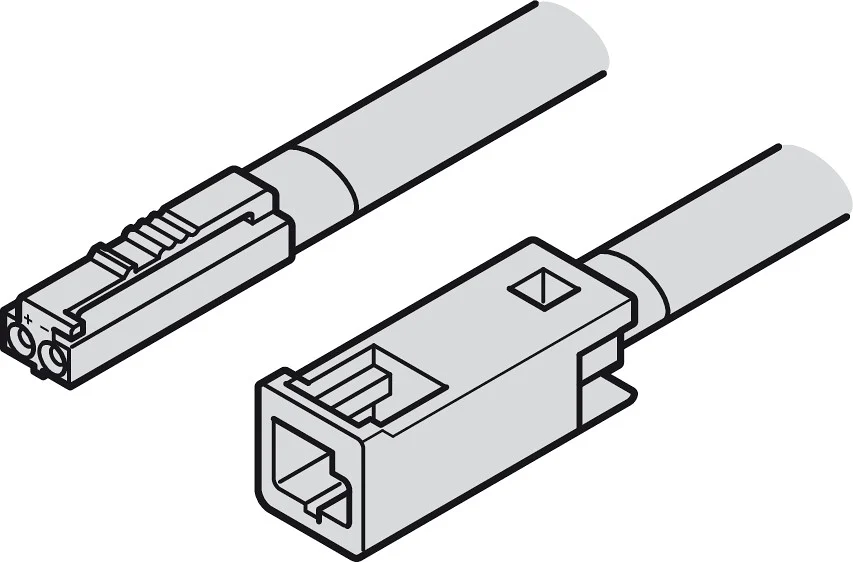

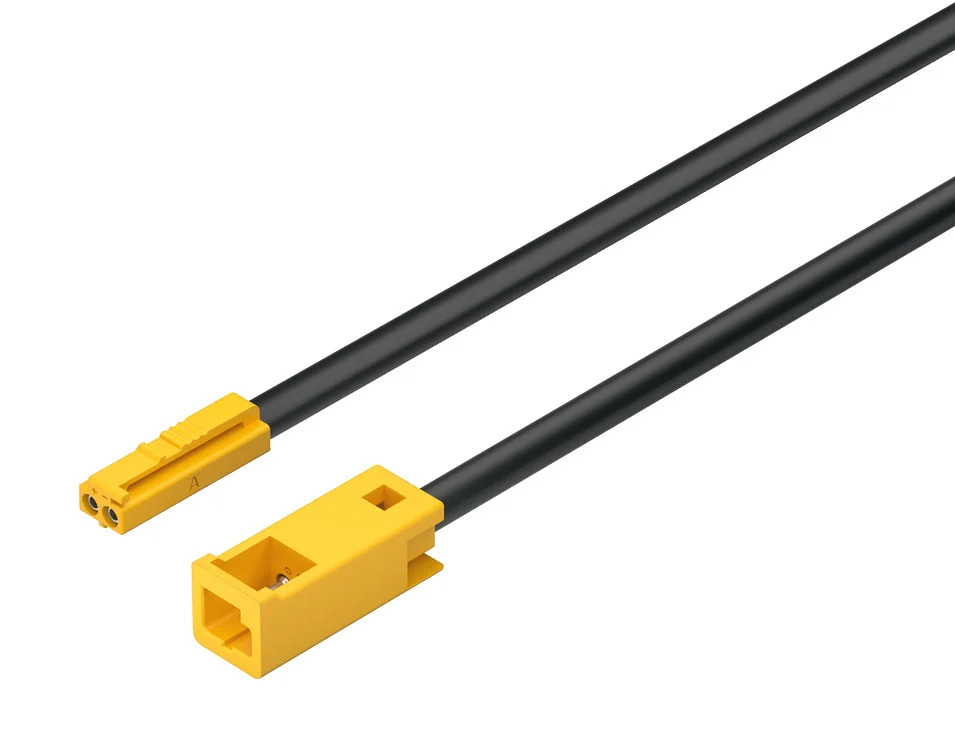

The Hafele 833.95.713 Loox5 12V Monochromatic LED Extension Lead 1000mm is designed for extending connections between compatible 12V Loox5 monochromatic lights, drivers, distributors and other 2-core consumers. It features a 1000mm 18 AWG cable, a 5A current carrying capacity and Loox5 2-pin 12V connectors. The plug and socket housings are manufactured from plastic, with an 8mm drill hole required for the plug and a 13mm drill hole for the socket. Supplied as one complete extension lead with one plug and one socket, it is covered by the 7-year Häfele Lifetime Guarantee.
The 1000mm cable supports flexible positioning of compatible Loox5 lighting components within furniture, cabinetry and interior lighting installations.
Key Features – Hafele 833.95.713 Loox5 12V Monochromatic LED Extension Lead
- For compatible Loox5 12V monochromatic lights and drivers
- Suitable for 2-core consumers and distributors
- 1000mm cable length
- 5A current carrying capacity
- 18 AWG wire cross section
- Loox5 2-pin 12V plug and socket
- Plastic connector housings
- 7-year Häfele Lifetime Guarantee
Technical Specifications
- Voltage: 12V
- Cable length: 1000mm
- Current carrying capacity: 5A
- Wire cross section: 18 AWG

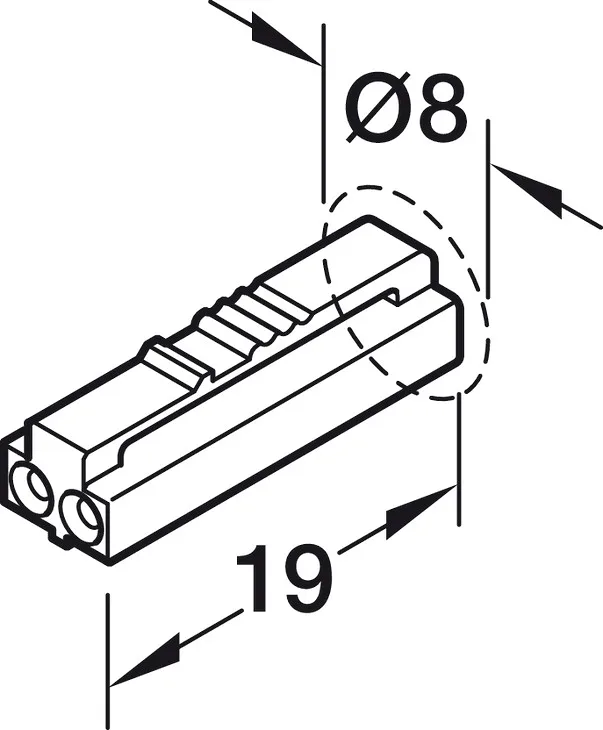

- Plug drill hole diameter: 8mm

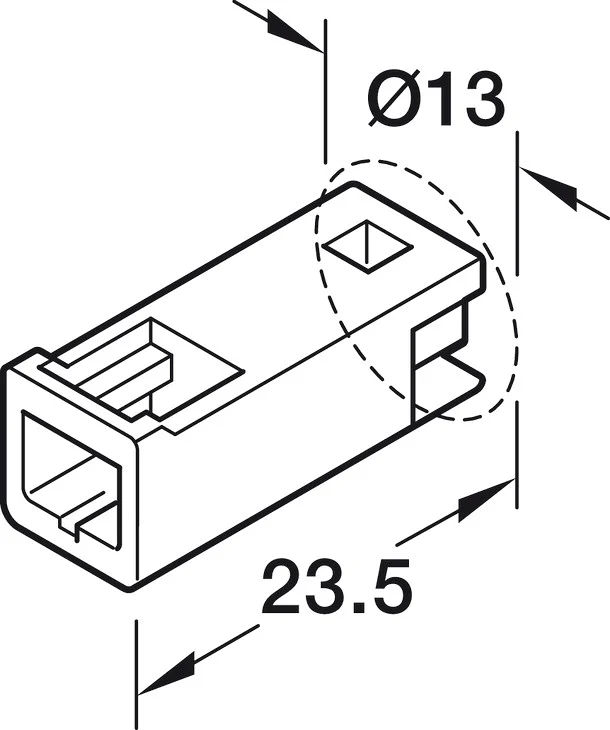

- Socket drill hole diameter: 13mm
- Connector type: Loox5 2-pin 12V
Installation Information
The maximum total lead length from the Loox5 driver to the connected light is 10 metres. Longer cable runs combined with larger lighting loads may cause voltage loss and a visible reduction in brightness.
Supplied With
- 1 x 1000mm extension lead
- 1 x Loox5 2-pin plug
- 1 x Loox5 2-pin socket
