Description

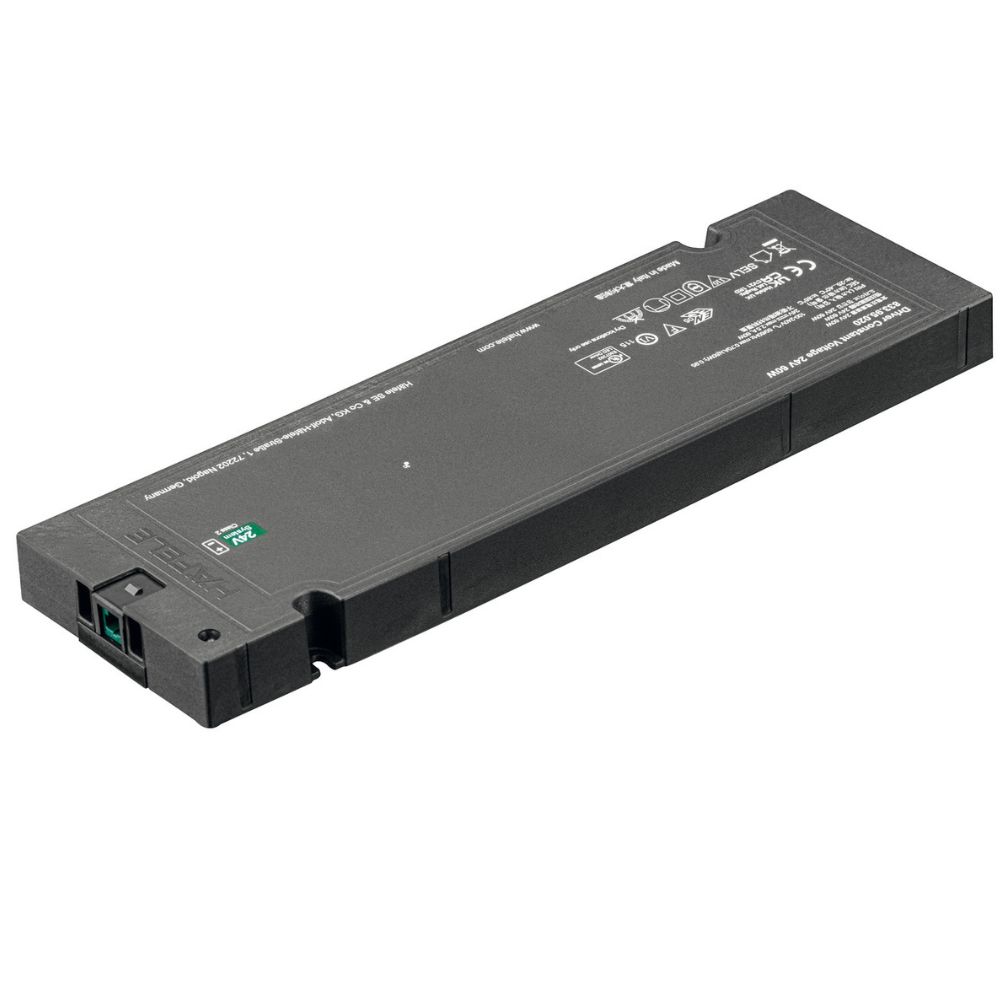

Hafele 833.95.020 Loox5 LED Driver
Hafele 833.95.020 Loox5 LED Driver is a slim constant voltage LED driver designed for Häfele Loox5 lighting systems. Featuring a 24V DC output and maximum output power of 60W, this compact driver is suitable for cabinet lighting, furniture lighting and integrated LED installations requiring reliable low-voltage power distribution.
The driver features overload protection, Loox5 box-to-box connectivity and high operating efficiency within a slim 16 mm housing. Designed for indoor installations with an IP20 rating, it supports worldwide input voltage compatibility from 100–240V AC. Mains lead sold separately.
Key Features – Hafele 833.95.020 Loox5 LED Driver
- Constant voltage Loox5 LED driver
- 24V DC output voltage
- Maximum output power: 60W
- Slim low-profile 16 mm design
- IP20 rated for indoor installations
- Integrated overload protection
- Loox5 box-to-box connection system
- High efficiency with PFC correction
- Mains lead sold separately
Loox5 System Integration
- 1 x Loox5 2-pin 24V output socket
- Suitable for Loox5 LED lighting systems
- Parallel secondary side circuit connection
- Compatible with Loox5 generation plug system
- Designed for screw fixing installation
Applications – Hafele 833.95.020 Loox5 LED Driver
- Kitchen cabinet lighting systems
- Wardrobe and furniture lighting
- Display cabinet illumination
- Retail and shelving LED lighting
- Integrated residential lighting installations
Technical Specifications – Hafele 833.95.020 Loox5 LED Driver
- Brand: Hafele
- Article Number: 833.95.020
- Voltage Input: 100–240V AC
- Frequency: 50–60 Hz
- Output Voltage: 24V DC
- Maximum Output Power: 60W
- Standby Power Consumption: ≤0.3W
- Efficiency at Full Load: 89%
- Protection Rating: IP20
- Dimensions: 230 x 70 x 16 mm
- Colour: Black
- Installation: Screw fixing
- Guarantee: Häfele Lifetime Guarantee (7 Years)
Important Installation Information
- Loox C7 mains lead must be ordered separately
- Not suitable for installation with mains dimmable wall switches
- Provide sufficient air circulation around the driver
- Recommended installation clearance: 10 mm
- Maximum lead length from driver to light: 10 m
