Hafele 833.87.204 Loox5 LED 3084 24V Flex Strip Light Set
The Hafele 833.87.204 Loox5 LED 3084 Flex Strip Light set is designed for MODU³ shelving and furniture lighting systems. Delivering warm white 3000K illumination with 320 LEDs per metre, the strip produces smooth, uniform light without visible LED points. Its flexible design allows the strip to bend around tight corners while maintaining consistent light output.

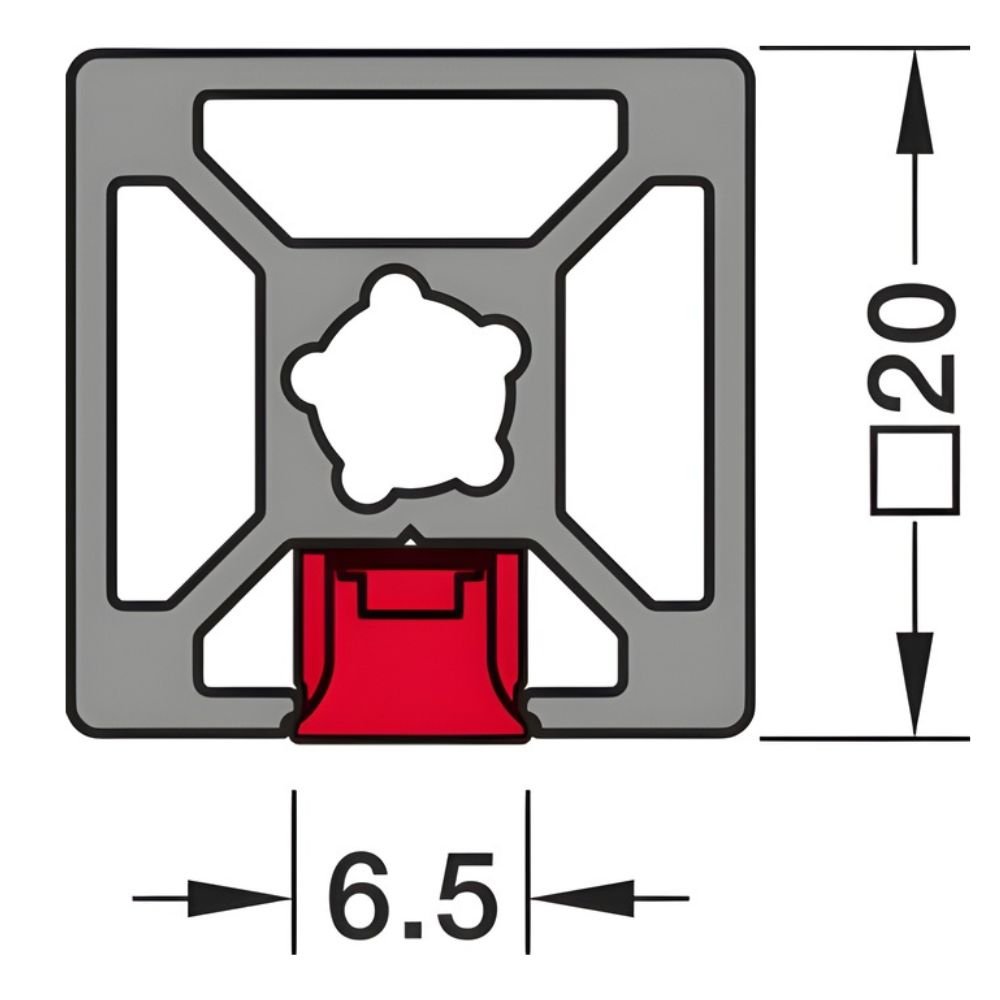

The slim 6.5 mm strip slides neatly into the filigree groove of MODU³ profiles and is protected by a silicone sleeve providing IP44 protection. This makes the strip ideal for integrated shelf lighting, display cabinets and modern furniture installations where discreet yet powerful lighting is required.
Features
- Loox5 LED 3084 flexible strip lighting system
- Warm white 3000K monochrome light
- 320 LEDs per metre for uniform illumination
- No visible LED points
- Flexible strip with bending radius up to 30 mm
- IP44 silicone sleeve protection
- Designed specifically for MODU³ lighting profiles
Technical Specifications
- Brand: Hafele
- Article Number: 833.87.204
- System: Loox5
- Voltage: 24V
- LED Type: LED 3084
- Light Colour: Warm White
- Colour Temperature: 3000K
- Strip Length: 0.55 m
- LED Density: 320 LEDs/m
- Power Consumption: 9.6 W/m
- Luminous Flux: 680 lm/m
- Colour Rendering Index: Ra 90

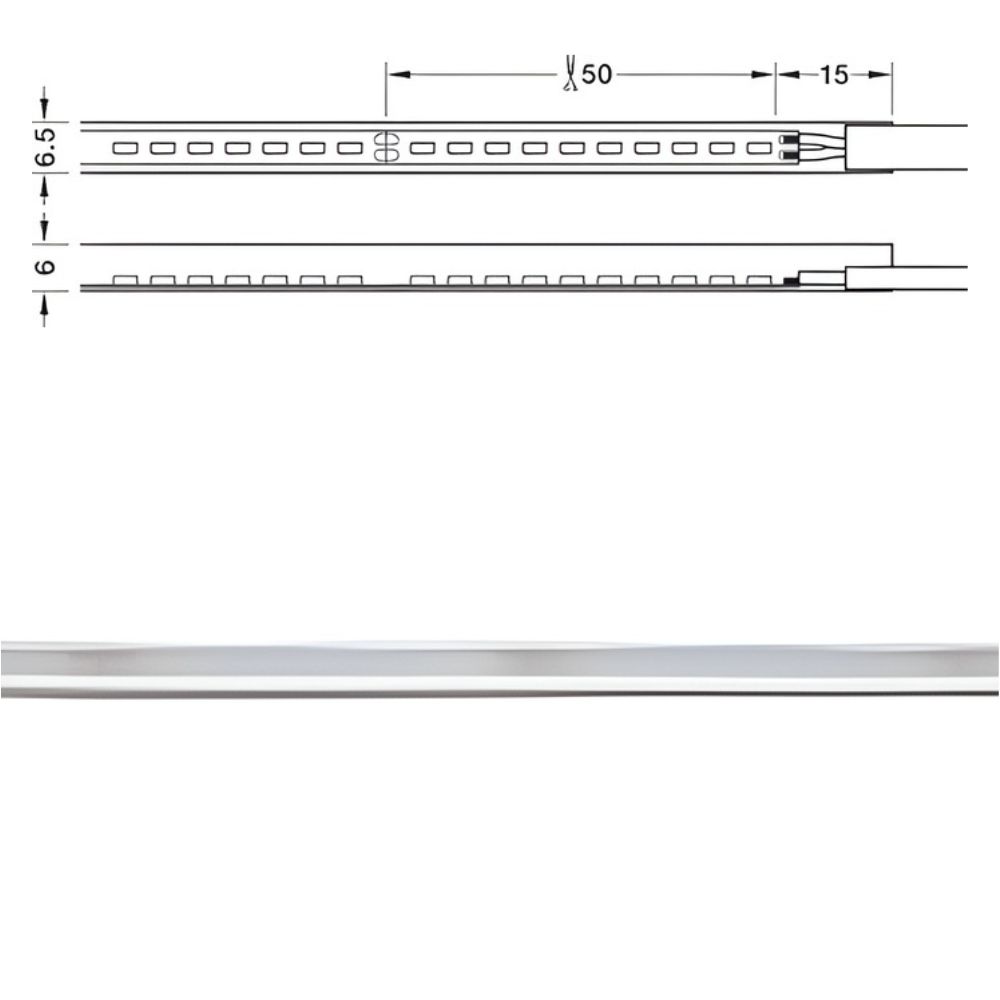

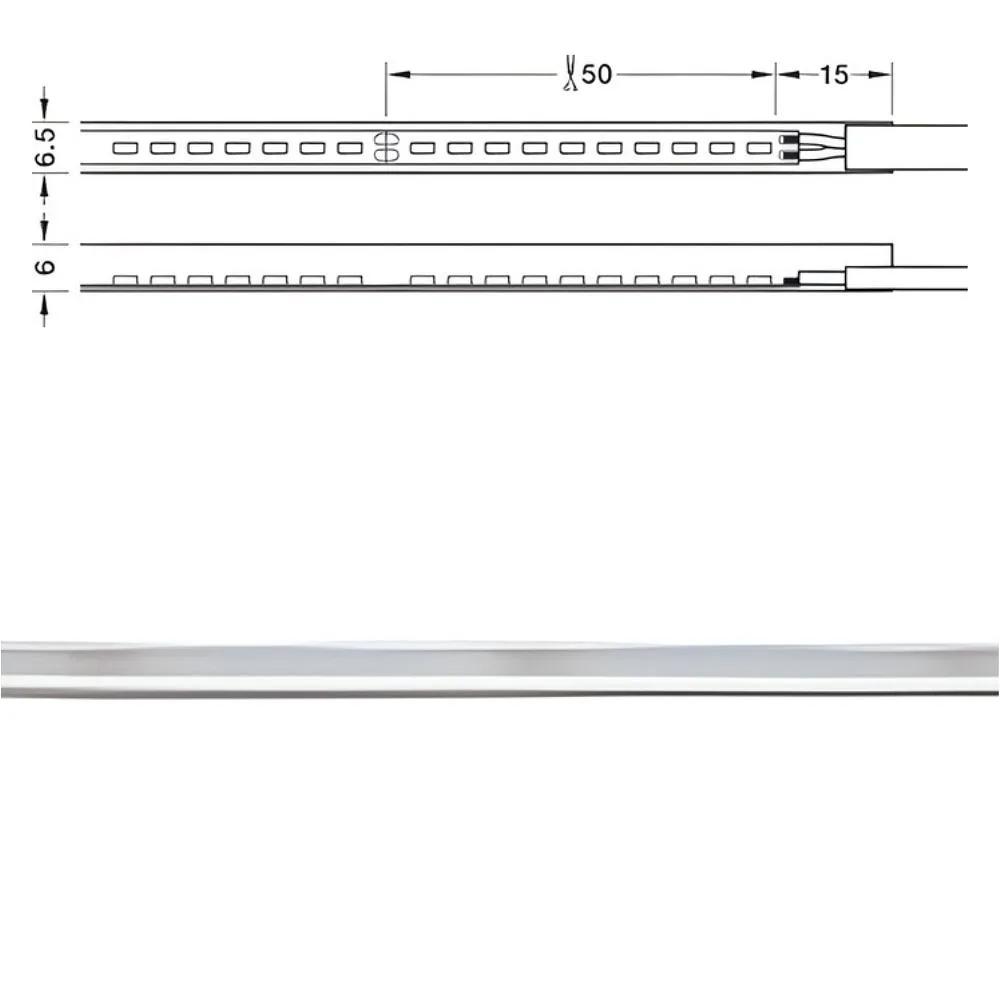

- Strip Width: 6.5 mm
- Strip Height: 6.0 mm
- Degree of Protection: IP44

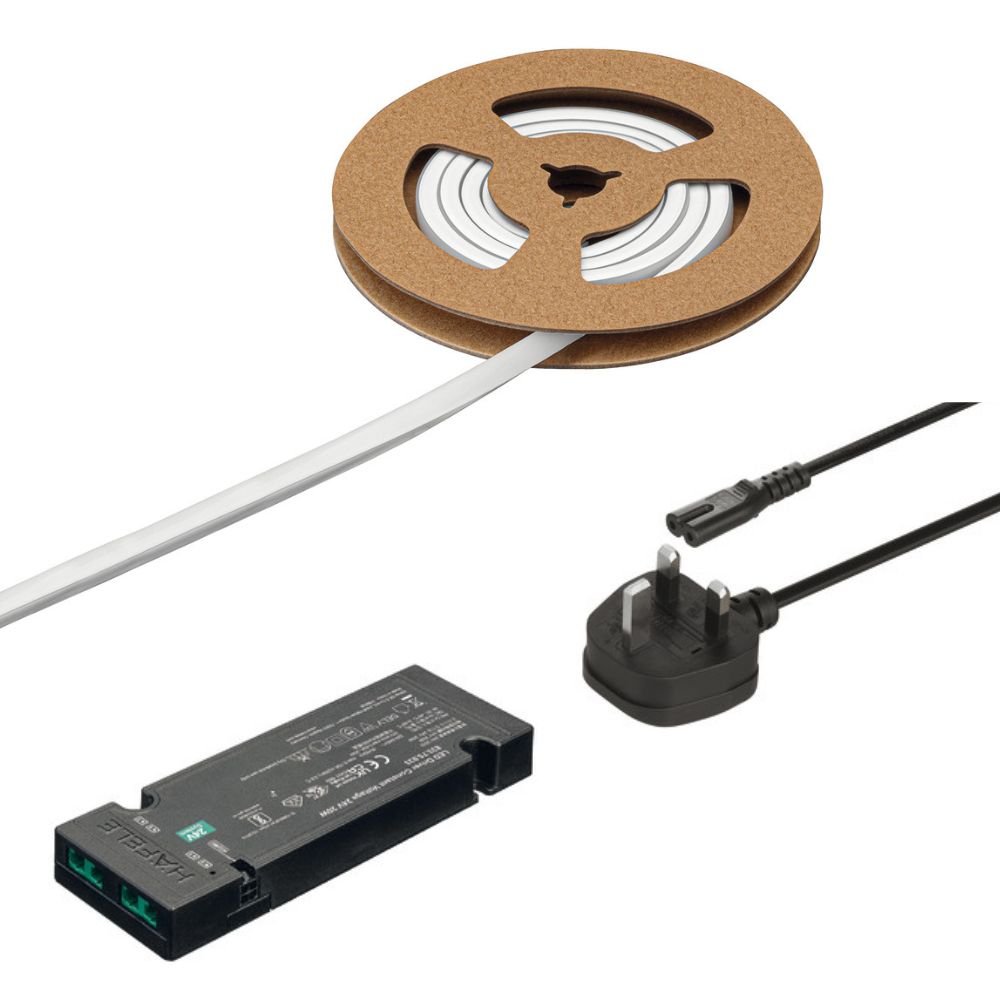

Supplied With
- Loox5 LED 3084 24V flexible strip light with 2 m connecting cable
- Loox5 24V Eco driver with four light sockets and one switch socket (0–20 W)
- Loox LED mains lead with UK moulded plug
Additional Information
- When ordering LED strip lights for MODU³ profiles, ensure the correct strip length is selected.
- Shelf width 600 mm requires a strip length of 0.55 m.
- Shelf width 900 mm requires a strip length of 0.85 m.
- The maximum visual strip length refers to the strip section where luminous flux drop remains visually imperceptible (max. 30%).
- If a new power supply is installed immediately after another strip section, the brightness difference may be noticeable.
- The maximum strip length depends on the wattage capacity of the driver. Refer to the LED strip technical data.
