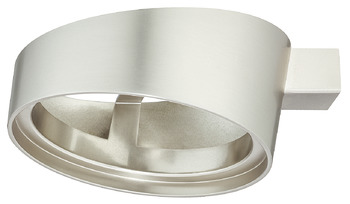

Hafele 833.80.743 Angled LED Light Housing Stainless Steel
The Hafele 833.80.743 angled LED light housing features a brushed stainless-steel-coloured finish for a clean, understated furniture lighting detail. This Loox5 angled housing is designed for compatible undermounted LED lights and provides a neat surface-mounted installation where the light needs to be presented at an angle.

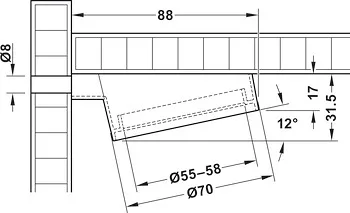

For 55mm and 58mm Loox5 LED Lights
The housing is suitable for Loox5 recessed lights with a 55mm drill hole and for Loox5 light modules using a 58mm drill hole when combined with the appropriate round recess-mounted housing.
Angled Surface-Mounted Installation

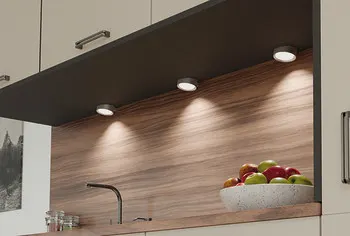

The plastic housing is screw fixed and allows a compatible LED light to be mounted below furniture or cabinetry in an angled position. With the surface-mounted housing fitted, the installation has an IP20 degree of protection.
Key Features
- Hafele Loox5 angled housing for undermounted LED lights
- Stainless steel coloured, brushed finish
- For compatible lights with 55mm or 58mm drill holes
- Suitable for Loox5 recess-mounted lights with 55mm drill hole
- Suitable for Loox5 58mm light modules with matching round recess-mounted housing
- Plastic construction
- Screw-fix installation
- Surface-mounted installation rated IP20
Important Installation Note
When using a Loox5 light module with a 58mm drill hole, Hafele specifies that a round recess-mounted housing in the matching colour must also be ordered.
