Hafele 833.77.784 Loox 24V Basic LED Remote Receiver

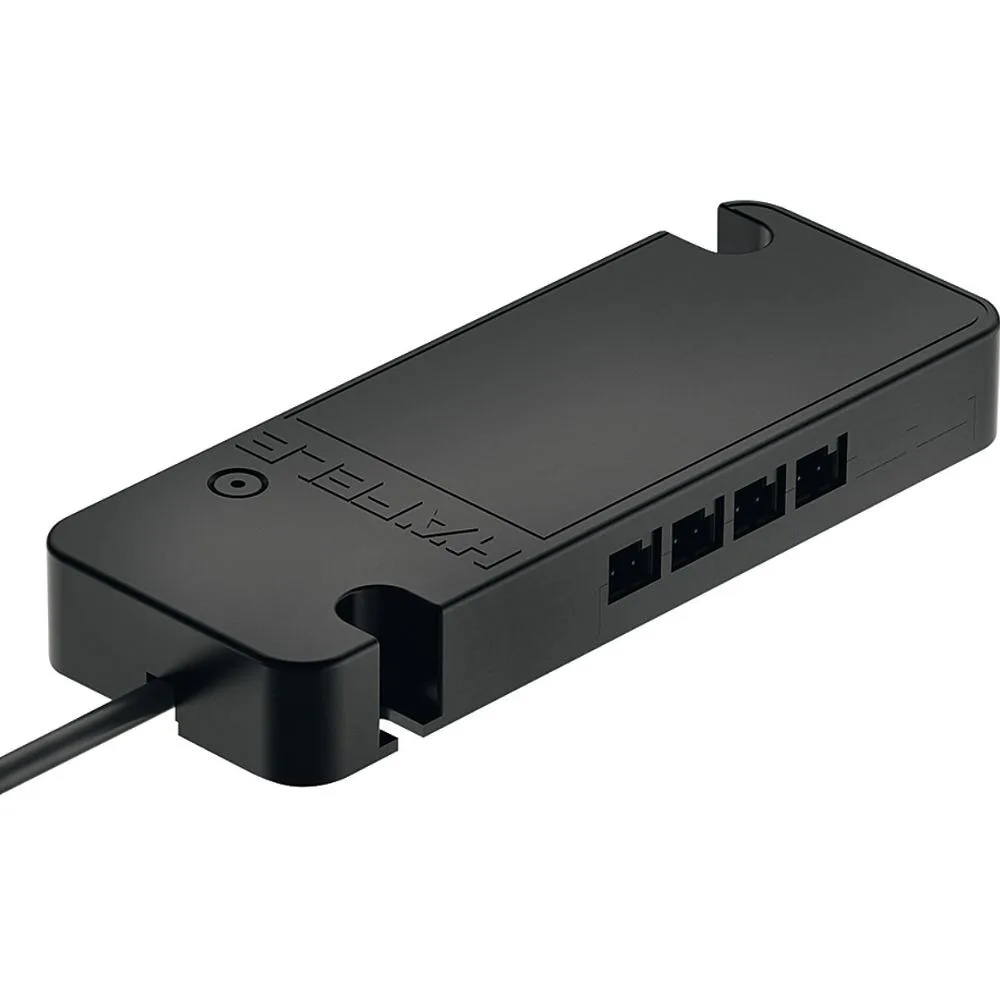

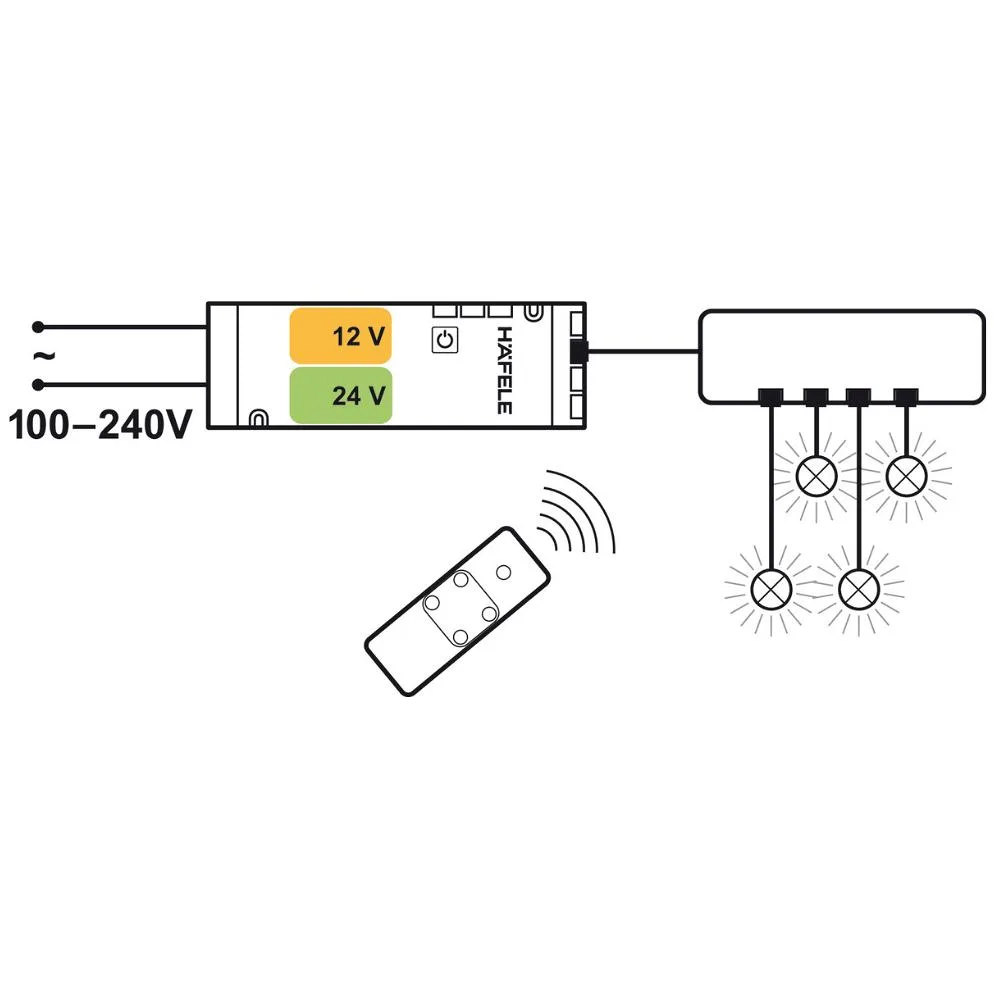

The Hafele 833.77.784 Loox 24V Basic LED Remote Receiver is a four-channel radio receiver for wireless switching and dimming of compatible monochrome white Loox 24V LED lights. It features four output slots, supports up to 60W per socket subject to the connected driver capacity and operates on a 2.40GHz radio frequency within a maximum 15m range. The compact black plastic receiver measures 106 x 40 x 14mm, includes a 1m connection lead and is installed using screw fixings.
The receiver provides soft on/off operation and smooth dimming through a compatible Häfele remote control. Its integrated memory function retains the previous lighting setting even after the power supply has been disconnected.
Up to ten radio receivers can be combined within one network, with support for up to ten compatible remote controls per receiver. Multiple receivers can therefore be operated together within the stated 15m wireless range.
This receiver is designed exclusively for monochrome white LED lights. It is not suitable for multi-white, tunable-white or RGB LED lighting.
Key Features – Hafele 833.77.784 Loox 24V Basic LED Remote Receiver
- Designed for compatible Loox 24V monochrome LED lights
- Four output slots for connected lights
- Maximum output: 60W per socket for the 24V version
- Total connected load remains subject to the driver capacity
- Wireless on/off and dimming control
- Soft on and soft off operation
- Integrated memory function
- Retains settings when disconnected from power
- Four control channels
- Maximum ten receivers per network
- Maximum ten remote controls per receiver
- Maximum wireless network distance: 15m
- Radio frequency: 2.40GHz
- Cable length: 1000mm
- Dimensions: 106 x 40 x 14mm
- Black plastic housing
- Screw-fixed installation
- Covered by the 7-year Häfele Lifetime Guarantee
Compatibility
- Suitable for monochrome white Loox 24V LED lights
- Compatible with the appropriate Häfele remote switch and bezel
- Not suitable for multi-white LED lights
- Not suitable for RGB LED lights
Supplied With
- 1 x Basic four-channel radio receiver
- 1 x 1000mm connection lead
Ordering Information
The compatible remote control, bezel, LED lights, Loox driver and additional accessories must be ordered separately
