Hafele 833.76.220 Loox LED 3030 Strip Light

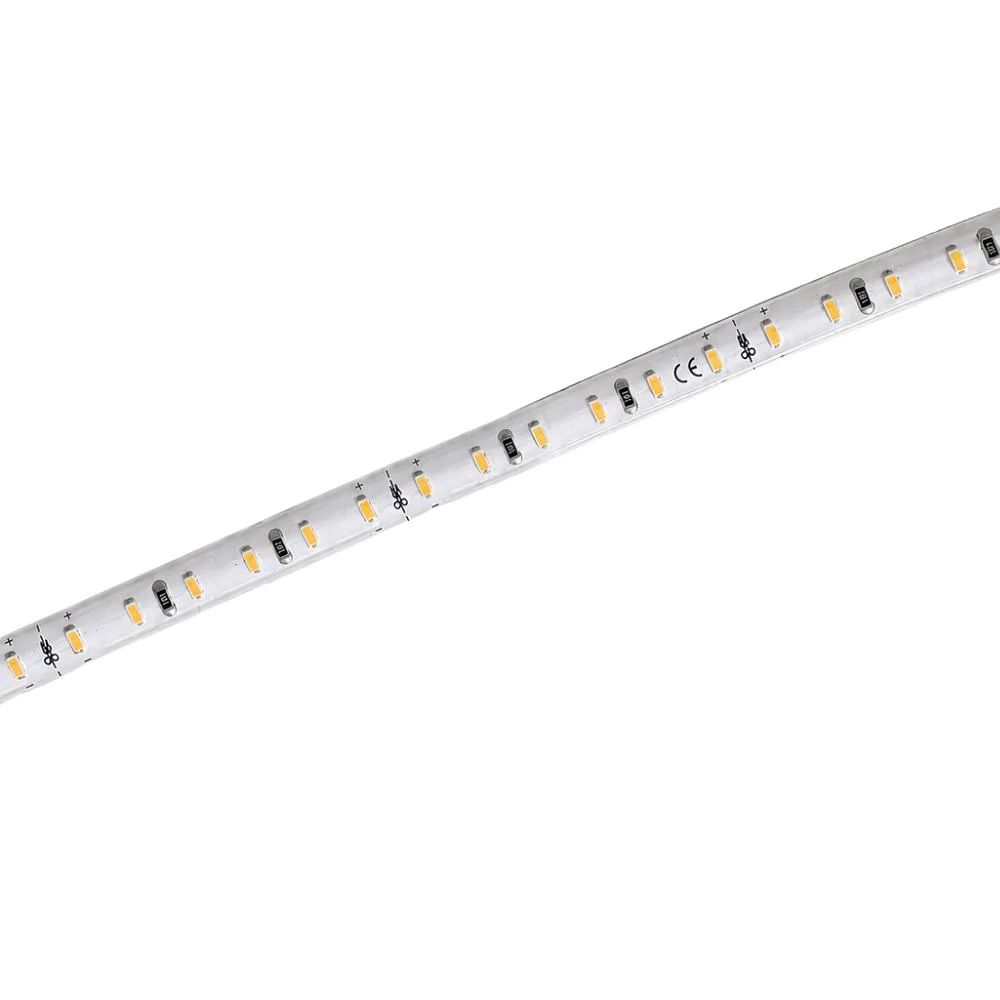

The Hafele 833.76.220 Loox LED 3030 Strip Light is a flexible 24V silicone LED strip supplied as a 5m reel with a 2m connection lead. It produces warm white 2700K illumination with CRI90 colour rendering, a light output of 920 lumens per metre and power consumption of 9.6W per metre. The white IP20 strip measures 8mm wide and 2.3mm high, features 120 LEDs per metre and is suitable for self-adhesive installation in dry indoor furniture and cabinet lighting applications.
The LED 3030 strip is dimmable when used with compatible Hafele Loox controls and can be shortened at 50mm intervals. Cut sections can be reused with suitable connectors, providing flexibility when creating made-to-measure lighting arrangements.
Key Features – Hafele 833.76.220 Loox LED 3030 Strip Light
- Flexible silicone LED strip light
- Compatible with 24V Hafele Loox lighting systems
- Warm white 2700K colour temperature
- CRI90 colour rendering
- 920 lumens per metre
- 9.6W power consumption per metre
- 120 LEDs per metre
- 600 LEDs across the complete 5m reel
- Total light output: 4600 lumens
- IP20 rated for dry indoor installations
- Dimmable with compatible controls
- Self-adhesive installation
- Can be shortened every 50mm
- Cut strip sections can be reused with suitable connectors
- Rated lifetime: 30,000 hours
Technical Specifications
- Brand: Hafele
- Product range: Loox
- Model: LED 3030
- Article number: 833.76.220
- Operating voltage: 24V DC
- Colour temperature: 2700K
- Colour rendering index: CRI90
- Power consumption: 9.6W/m
- Total connected load: 48W
- Luminous flux: 920lm/m
- Total luminous flux: 4600lm
- Luminous efficacy: 95lm/W
- Length: 5000mm
- Width: 8mm
- Height: 2.3mm
- Protection rating: IP20
- Material: Plastic with silicone covering
- Colour: White
- Installation: Self-adhesive
- Cutting interval: 50mm
Supplied With

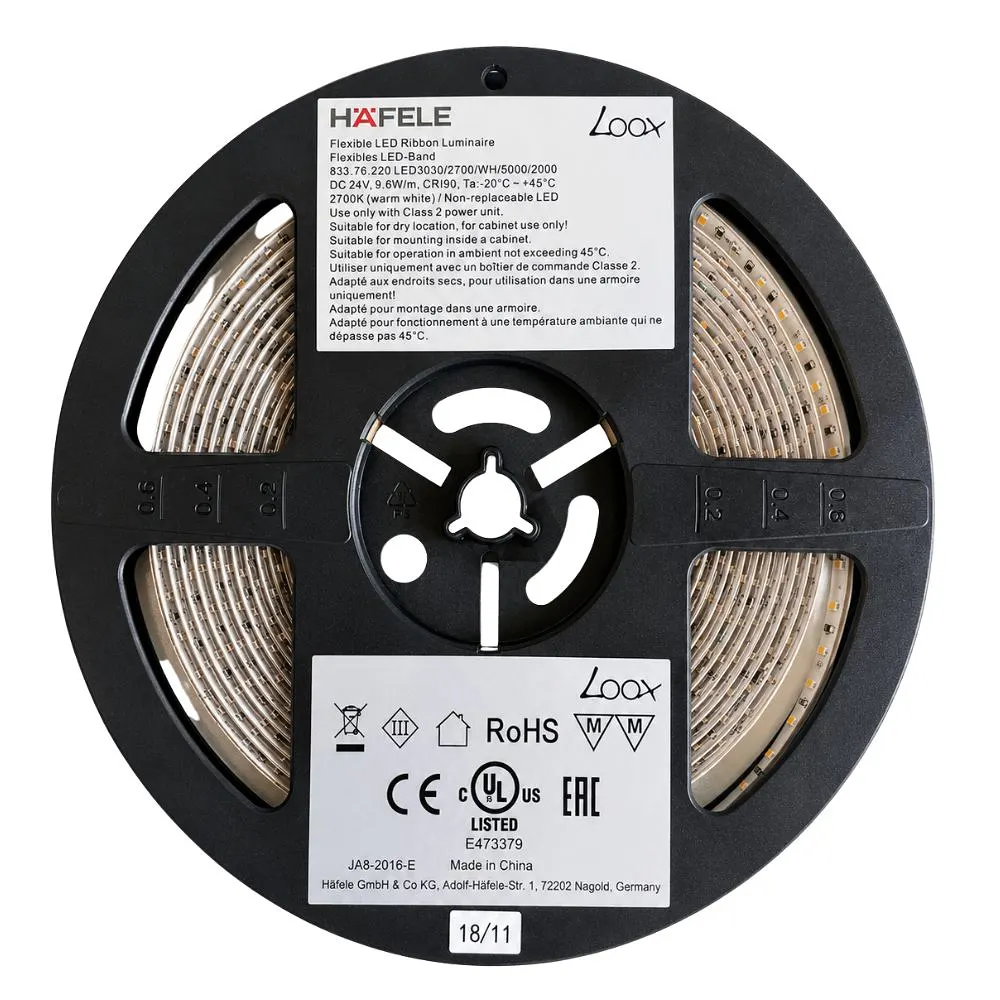

- 1 x 5m Hafele Loox LED 3030 strip light reel
- 1 x 2m connection lead, 3.5A, 20 AWG
