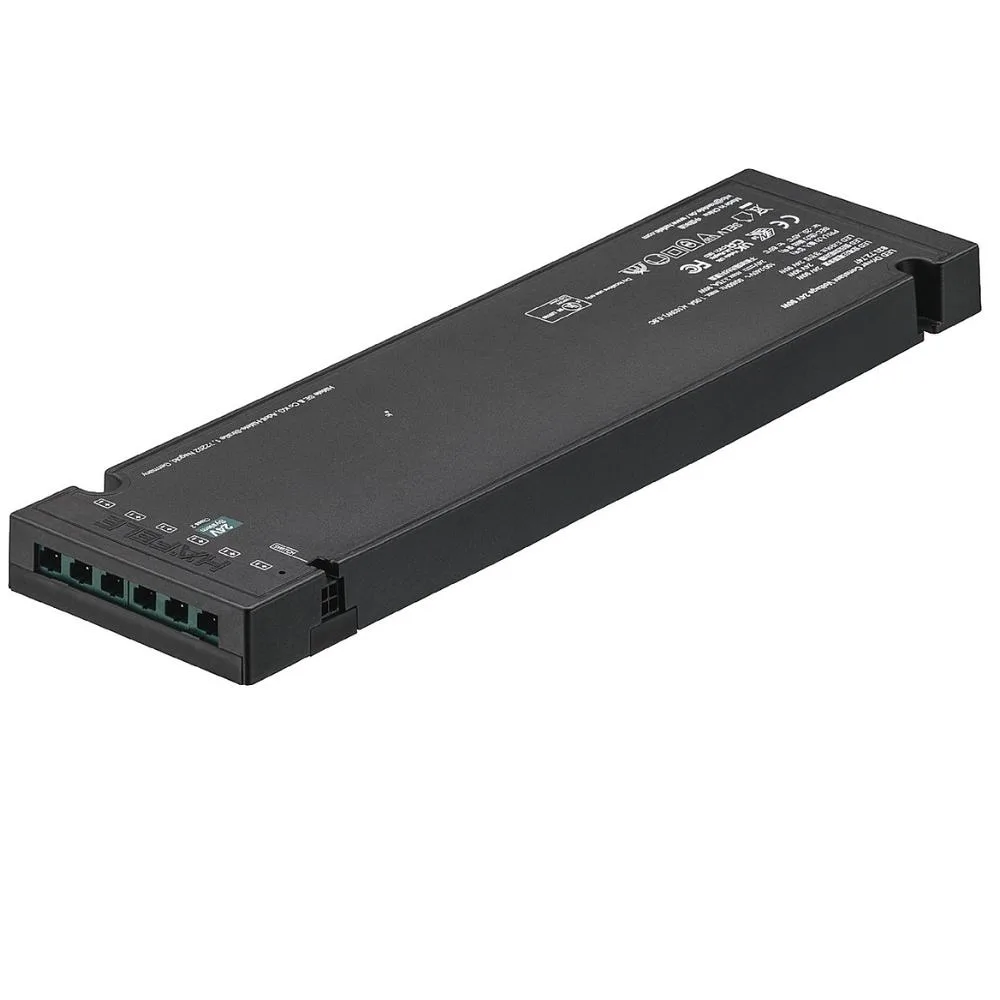

Hafele 833.72.747 Loox5 Eco 24V LED Driver 90W
The Hafele 833.72.747 Loox5 Eco 24V LED Driver 90W is an extremely slim constant-voltage driver designed for compatible 24V Loox5 LED lighting installations. It provides a 90W output, 3.75A output current, universal 100–240V mains input and six Loox5 2-pin output sockets. The black plastic IP20 housing measures 260 x 70 x 16mm and can be installed using screw fixing or suitable adhesive fixing. It is supplied with mounting accessories and covered by the 7-year Häfele Lifetime Guarantee; the mains lead must be ordered separately.
Designed with the Loox5 generation plug system, this driver includes one Loox switch input and an integrated switching function for use with compatible Häfele Loox controls. Overload protection helps protect the driver and connected lighting, while standby power consumption of no more than 0.5W supports efficient operation when the lighting is not in use.
Key Features – Hafele 833.72.747 Loox5 Eco 24V LED Driver 90W
- 24V DC constant-voltage LED driver
- 90W maximum output power
- 3.75A output current
- Universal 100–240V mains input
- 50–60Hz mains frequency
- Six Loox5 2-pin 24V output sockets
- One Loox switch control input
- Integrated switching function
- Built-in overload protection
- Standby power consumption of no more than 0.5W
- Extremely slim 16mm housing
- IP20 rated for enclosed, dry indoor locations
- Suitable for screw fixing or glue fixing
- Black plastic construction
- Mounting accessories included
- 7-year Häfele Lifetime Guarantee
Dimensions and Connections
- Length: 260mm
- Width: 70mm
- Height: 16mm
- Output connections: 6 x Loox5 2-pin 24V sockets
- Control connection: 1 x Loox switch input
- Output voltage: 24V DC
- Maximum output current: 3.75A
Installation Information
The Hafele Loox5 Eco 24V LED Driver is intended exclusively for compatible LED lights and is not suitable for powering other electrical devices. It must only be installed in enclosed, dry indoor locations.
Provide sufficient air supply and circulation around the driver and do not cover it with materials that could restrict heat dissipation. An accessible inspection opening should also be provided.
The maximum recommended lead length between the Loox5 driver and the connected light is 10 metres. Longer cable runs and high connected loads may cause voltage loss and a visible reduction in light output.
Operating Conditions
- Ambient operating temperature: -20°C to +45°C
- Protection rating: IP20
- Protection class: Class II
- Safety extra-low voltage output: SELV
- Independent LED driver
- Suitable for immediate installation in compatible furniture applications
Supplied With
- 1 x Hafele 833.72.747 Loox5 Eco 24V LED Driver
- Mounting accessories
Please note: The mains lead is not included and must be ordered separately.
