Non-Priority Electric Shower Board for Domestic Installations

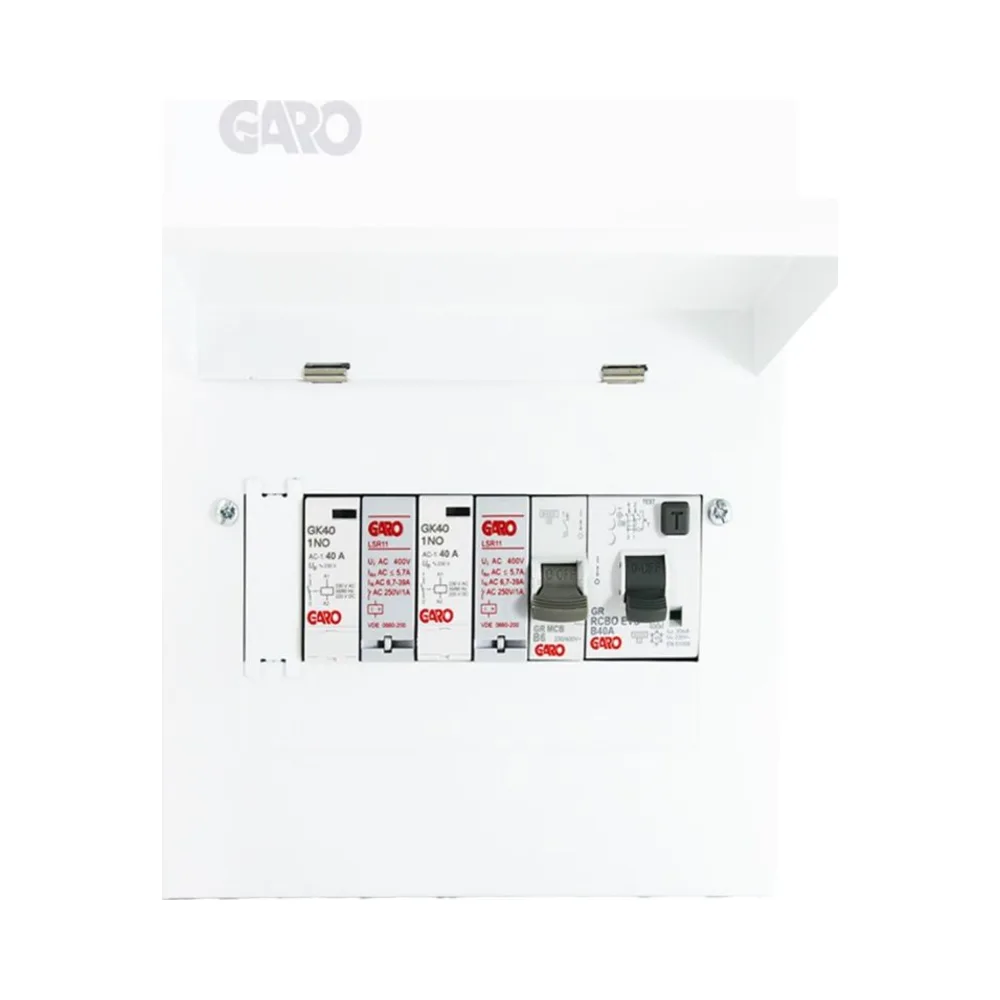

Garo GM8-NPS – Metal 8 Module 40A Non-Priority Board
The Garo GM8-NPS is a robust 8-module non-priority consumer unit designed for electric shower installations and general domestic load distribution. Featuring an integrated 30mA Type A RCBO, it provides essential protection while maintaining compliance with the 18th Edition of BS 7671.
With a rated current of 40A and non-priority operation, the GM8-NPS ensures safe and flexible power management for homes where load-shedding is not required. Its compact IP40 metal enclosure and durable build make it a reliable choice for electricians and homeowners alike.
✨ Key Features – Garo GM8-NPS Consumer Unit
- 8-module non-priority electric shower board
- Integrated 30mA Type A 6kA RCBO
- Rated current: 40A | Rated voltage: 230V AC
- Non-priority operation for straightforward load management
- Compact metal enclosure with IP40 protection
- Designed for domestic installations and shower circuits
- Compliant with BS 7671 (18th Edition)
Technical Overview – Garo GM8-NPS
- Rated current: 40A
- Rated voltage: 230V AC | Frequency: 50/60Hz
- Short-circuit capacity: 4kA
- Main device: 30mA Type A RCBO, 6kA
- Operation type: Non-priority
- Total ways: 8
- Dimensions: H 235mm × W 197mm × D 110mm
- Ambient temperature: -25°C to +55°C
- Storage temperature: -35°C to +55°C
- Terminal capacity: up to 35mm
- Backup protection: 100A
- Standard: EN 61439-3
✅ Why Choose This Product?
The Garo GM8-NPS is ideal for domestic shower and load distribution applications where non-priority operation is sufficient. Its integrated RCBO, compact metal enclosure, and full 18th Edition compliance make it a safe and practical solution for installers.
️ Guarantee & Compliance
All Garo consumer units are designed and manufactured to strict European standards. The GM8-NPS is fully compliant with BS 7671 and EN 61439-3, and certified under the Low Voltage Directive and RoHS requirements.
