All-in-One EV Charger Consumer Unit for Outdoor Installations

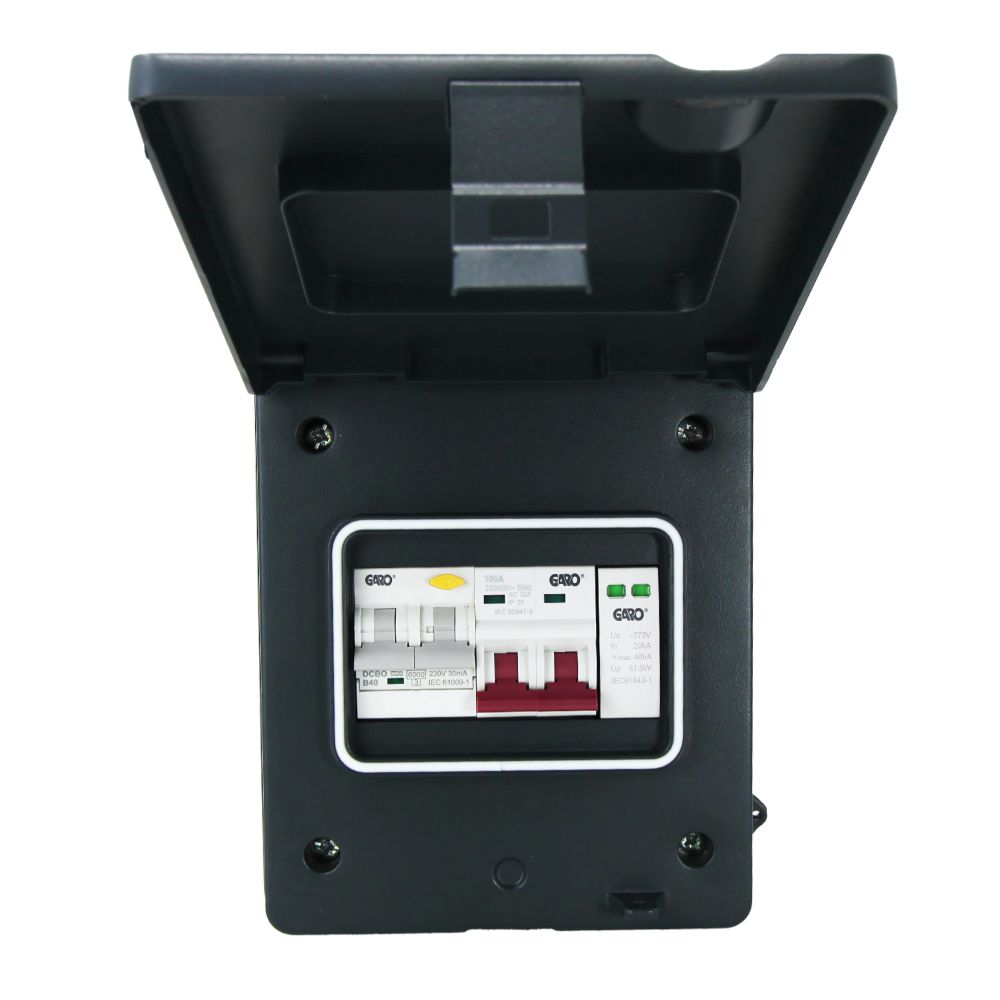

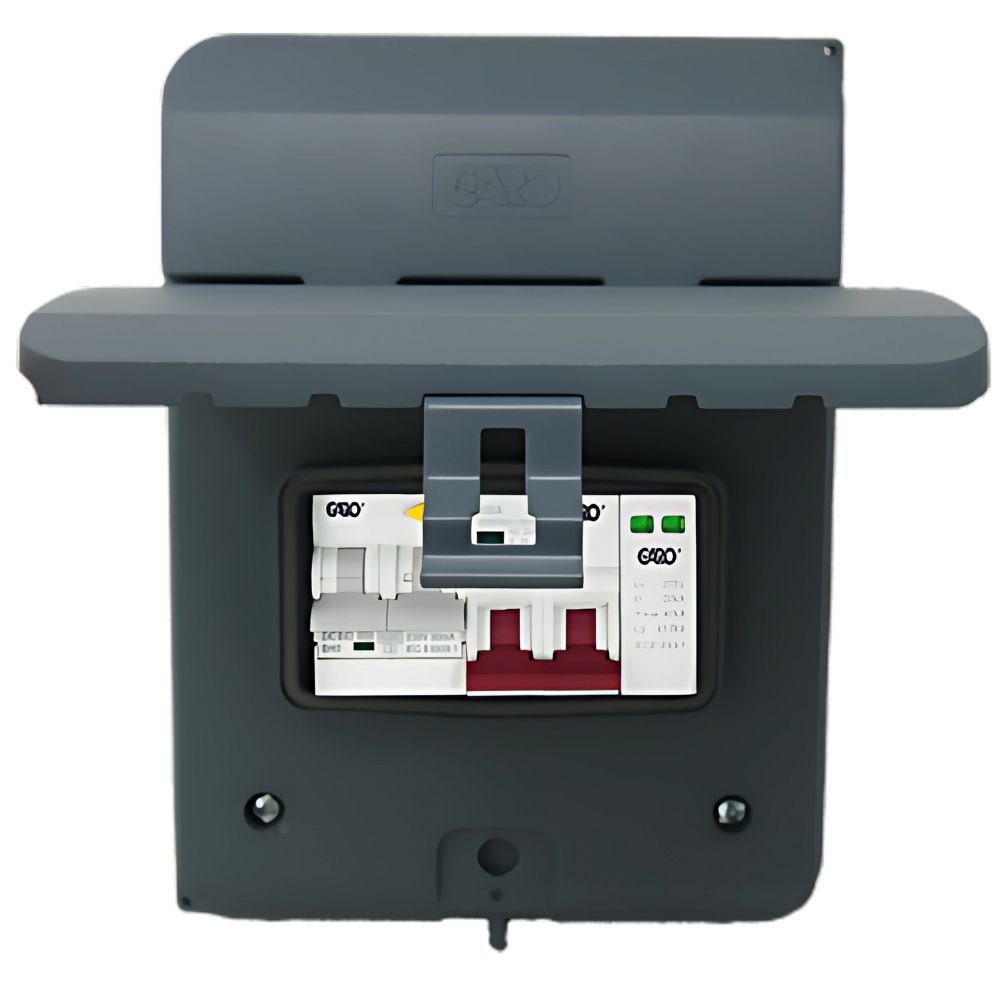

IP65 EV Consumer Unit – 100A Isolator, 40A RCBO, Type 2 SPD – Garo GMS5EV40R 5-Way
The Garo GMS5EV40R IP65 EV Consumer Unit is a fully equipped, IP65-rated EV consumer unit designed specifically for electric vehicle charging circuits. It features a 100A double pole isolator, a 40A Type A RCBO (30mA), and an integrated Type 2 surge protection device (SPD)—all factory-assembled in a compact and weatherproof 5-way enclosure.
This unit is suitable for EV chargers that have built-in PEN fault detection, ensuring full compliance when connected to PME systems without the need for an additional earth electrode. It complies with the latest BS 7671 (18th Edition) wiring regulations and is ideal for domestic outdoor installations. Fully populated, it arrives ready for fast, efficient setup.
🔧 Key Features – Garo GMS5EV40R IP65 EV Consumer Unit
- Main Switch: 100A Double Pole Isolator
- Protection: 40A Type A RCBO (30mA)
- Surge Protection: Built-in Type 2 SPD
- Enclosure Rating: IP65 (suitable for outdoor use)
- Short Circuit Rating: 16kA (Annex ZB)
- Voltage: 230V AC
- Frequency: 50/60 Hz
- Total Ways: 5 (all populated)
- Terminals: 35mm
- Operating Temperature: -25°C to +55°C
- Standards: EN 61439-3 compliant
- GARO Model: GMS5EV40R
- Dimensions: H 240mm × W 165mm × D 98mm
📦 Ideal Applications
- Domestic EV charger installations
- Suitable for PME, TT, and TN-S systems
- Designed for EV chargers with built-in PEN fault detection
- Outdoor wall-mounted EV charge points
- Projects requiring a pre-assembled, regulation-compliant consumer unit
✅ Summary – Garo IP65 EV Consumer Unit
The Garo GMS5EV40R EV consumer unit offers a complete solution for powering EV charge points safely and compliantly. Designed specifically for use with EV chargers that include built-in PEN loss fault protection, it provides a 100A isolator, a 40A RCBO, and a Type 2 SPD, all within a durable IP65-rated outdoor enclosure.
