40A Compact Priority Consumer Unit for Domestic Installations

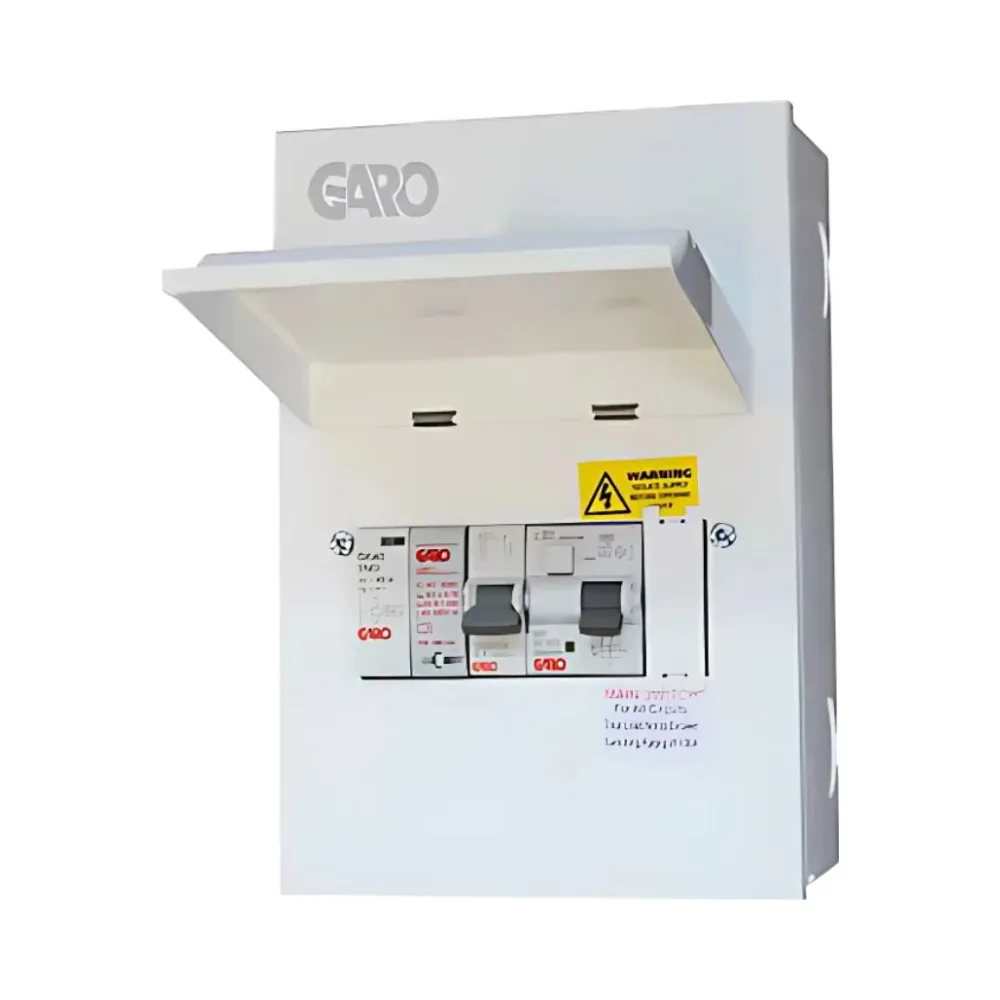

Garo GM6-PS – 6 Way Priority Board
The Garo GM6-PS Priority Consumer Unit is designed for domestic applications requiring load management and compliance with the 18th Edition of BS 7671. This 6-way board integrates a 30mA Type A RCBO with priority switching, ensuring safety, efficiency, and protection against overloads and short circuits.
With priority operation at approximately 2kW, the GM6-PS automatically manages power distribution, protecting essential circuits while shedding non-priority loads. Its compact, IP40-rated metal enclosure makes it ideal for modern homes with increasing energy demands.
✨ Key Features – Garo GM6-PS Priority Consumer Unit
- 6-way domestic consumer unit with priority load management
- Integrated 30mA Type A 6kA RCBO
- Priority operation: approx. 2kW
- Rated current: 40A | Rated voltage: 230V AC
- Compliant with BS 7671 (18th Edition)
- Compact design: H 235mm × W 161mm × D 110mm
- IP40 protection with IK08 impact resistance
- Terminals rated up to 35mm | Backup protection 100A
Technical Overview – Garo GM6-PS
- Rated current: 40A
- Rated voltage: 230V AC | Frequency: 50/60Hz
- Short-circuit capacity: 4kA
- RCBO: 30mA Type A, 6kA
- Priority load: approx. 2kW
- Total ways: 6
- Dimensions: H 235mm × W 161mm × D 110mm
- Ambient temperature: -25°C to +55°C
- Storage temperature: -35°C to +55°C
- Terminal size: up to 35mm
- Backup protection: 100A
- Standard: EN 61439-3
✅ Why Choose This Product?
The Garo GM6-PS ensures safe, efficient power management in domestic properties. Its built-in RCBO, compact design, and automatic load priority system make it ideal for homes with high electrical demand, ensuring compliance and reliable protection.
️ Guarantee & Compliance
Garo consumer units are built to European standards, meeting BS 7671 and EN 61439-3 requirements. Certified under the Low Voltage Directive and RoHS, they deliver trusted quality and long-term reliability.
