Description
Non-Priority Electric Shower Board for Larger Domestic Loads

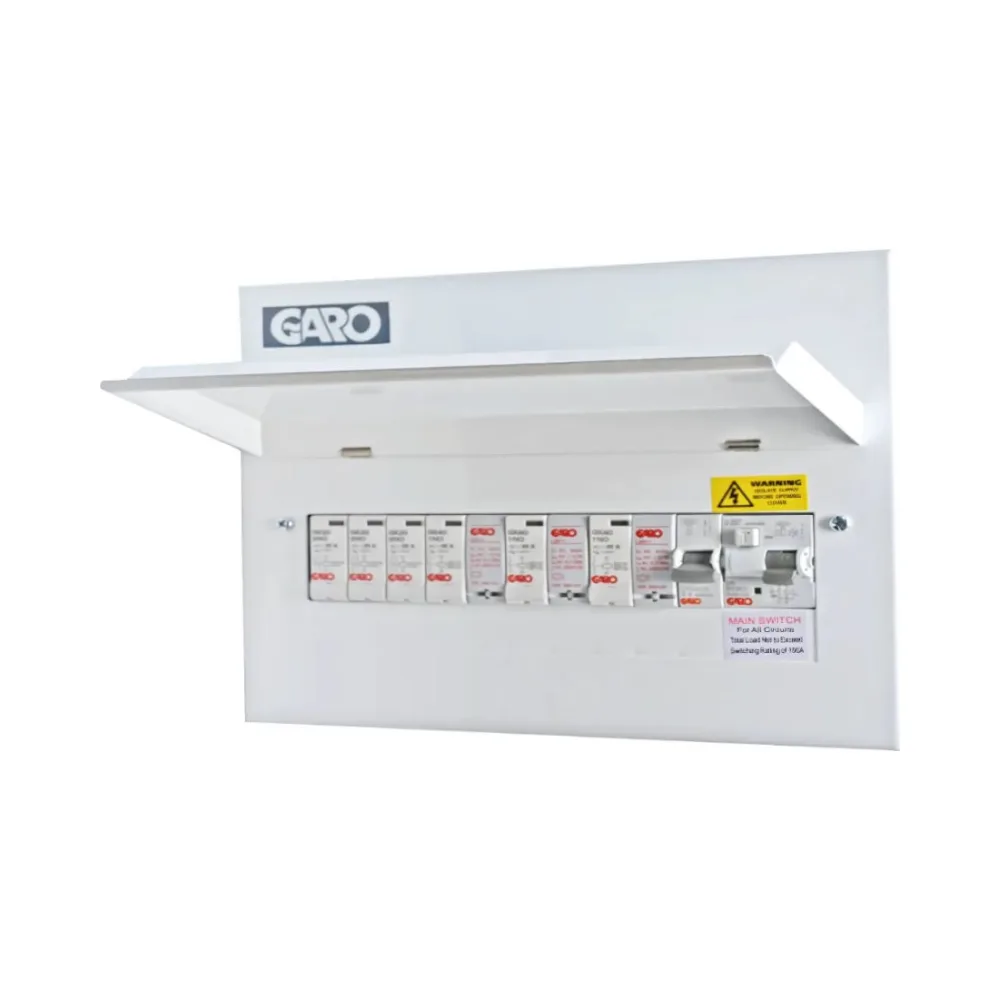

Garo GM14-3NPS – Metal 14 Module Non-Priority Board
The Garo GM14-3NPS is a durable 14-module non-priority consumer unit designed for domestic shower and load distribution applications. Featuring a built-in 30mA Type A RCBO and three non-priority circuits, it ensures safe power management while remaining compliant with the 18th Edition of BS 7671.
With a 40A rated current and IP40-rated metal enclosure, the GM14-3NPS delivers reliable load protection for larger household installations. Its compact size, strong construction, and full compliance with EN 61439-3 make it a dependable choice for electricians and homeowners.
✨ Key Features – Garo GM14-3NPS Consumer Unit
- 14-module non-priority electric shower board
- Integrated 30mA Type A 6kA RCBO
- Supports three non-priority circuits
- Rated current: 40A | Rated voltage: 230V AC
- Compliant with BS 7671 (18th Edition)
- Compact metal enclosure with IP40 protection
- Robust build quality for safe domestic use
Technical Overview – Garo GM14-3NPS
- Rated current: 40A
- Rated voltage: 230V AC | Frequency: 50/60Hz
- Short-circuit capacity: 4kA
- Main device: 30mA Type A RCBO, 6kA
- Operation type: Non-priority (3-way)
- Total ways: 12 | Free ways: 0
- Dimensions: H 235mm × W 279mm × D 110mm
- Ambient temperature: -25°C to +55°C
- Storage temperature: -35°C to +55°C
- Terminal capacity: up to 35mm
- Backup protection: 100A
- Standard: EN 61439-3
✅ Why Choose This Product?
The Garo GM14-3NPS is the ideal solution for larger domestic installations requiring multiple non-priority circuits. Its integrated RCBO, strong metal design, and compliance with the 18th Edition make it a safe, practical, and reliable choice for installers.
️ Guarantee & Compliance
Garo consumer units are manufactured in line with European standards, fully compliant with BS 7671 and EN 61439-3. Certified under the Low Voltage Directive and RoHS, they provide trusted quality and lasting reliability.
