Reliable Large-Capacity Garo Plastic Enclosure
Garo GCUT118

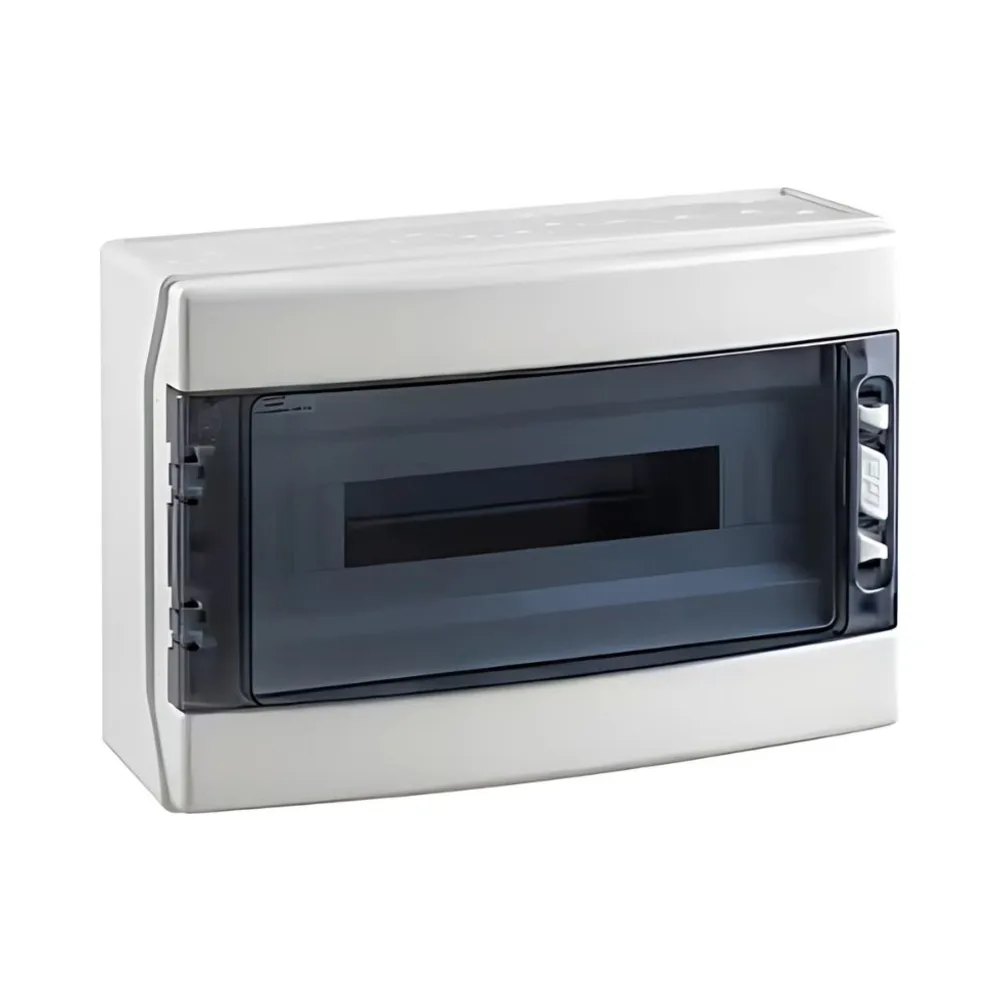

The Garo GCUT118 18 Module IP65 Plastic Enclosure is designed for robust protection and flexibility in electrical distribution. Constructed from halogen-free ABS and polycarbonate, it features a transparent UV-protected hinged door, a spacious wiring area, and adjustable DIN rail positions. Its strong IP65 sealing and IK08 impact resistance ensure reliable performance in demanding environments.
Key Features – Garo GCUT118 18 Module IP65 Plastic Enclosure
- 18 module DIN rail enclosure with robust and modern design
- Halogen-free ABS and polycarbonate body
- Transparent UV-protected hinged door, 180° opening
- IP65-rated sealing against water and dust ingress
- IK08 impact resistance for long-lasting durability
- Spacious wiring area with two DIN rail height positions
- Supports double-height earth and neutral bars up to 125A
- Cable entries: 12xM20 + 6xM25 + 2xM32 + 1xM40
Technical Overview – Garo GCUT118 Enclosure
- Type: 1×18 DIN rail modules
- Degree of protection: IP65
- Impact resistance: IK08
- Auto-extinguishing: HB (UL94)
- Glow wire tested: 650°C
- Ball pressure test: 70°C
- Temperature range: -25°C to +40°C
- Material: Halogen-free ABS and polycarbonate
- Cable entries: 12xM20 + 6xM25 + 2xM32 + 1xM40
✅ Why Choose This Product?
The Garo GCUT118 18 Module IP65 Plastic Enclosure is ideal for larger distribution and control installations. With its UV protection, spacious wiring design, and strong sealing, it guarantees safety and reliability in both indoor and outdoor sheltered environments.
️ Guarantee & Compliance
The Garo GCUT118 complies with EN 61439-3 and meets the requirements of the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Certified for safety, durability, and professional-grade performance.
