EV Consumer Unit with PEN Fault Detection, Surge Protection & B40A Type A RCBO
Garo GCS8EV40PME – IP65-Rated EV Consumer Unit with PEN Loss Protection and Integrated Surge Device
All-in-One EV Consumer Unit with Enhanced Protection for Domestic Installations

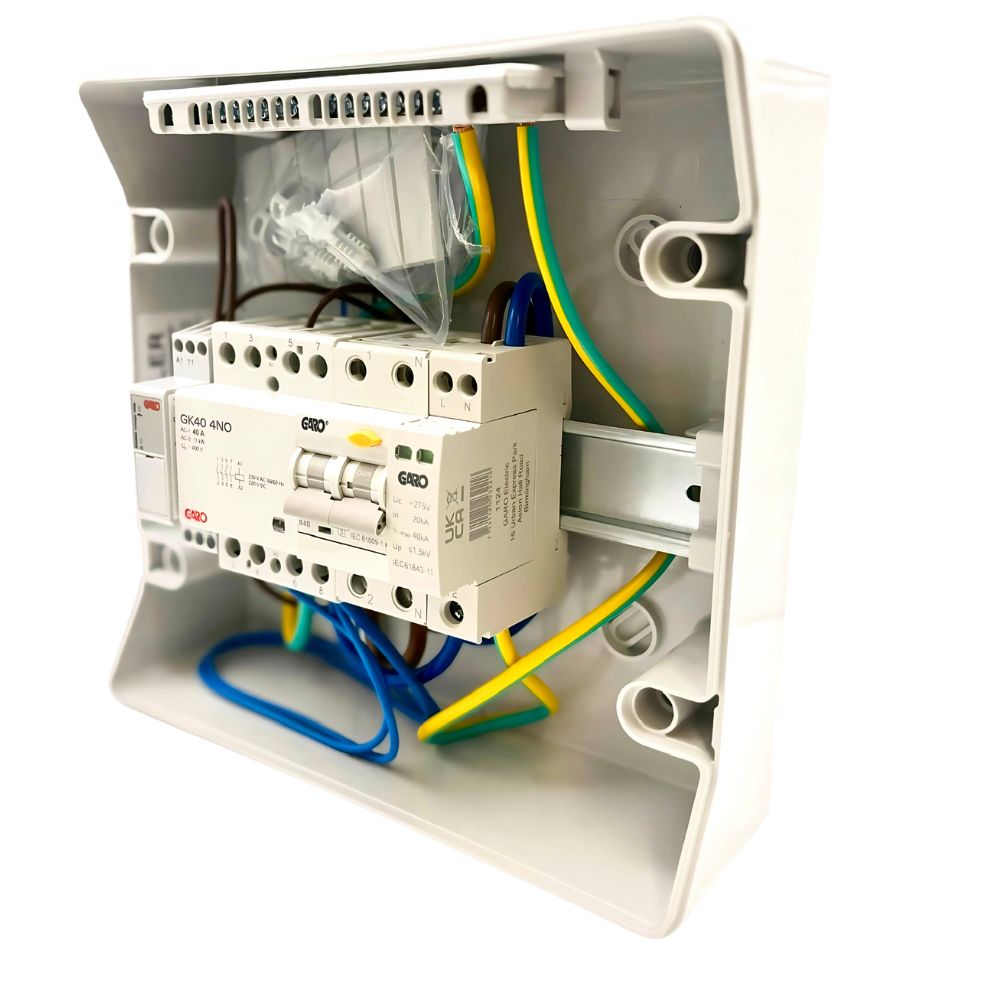

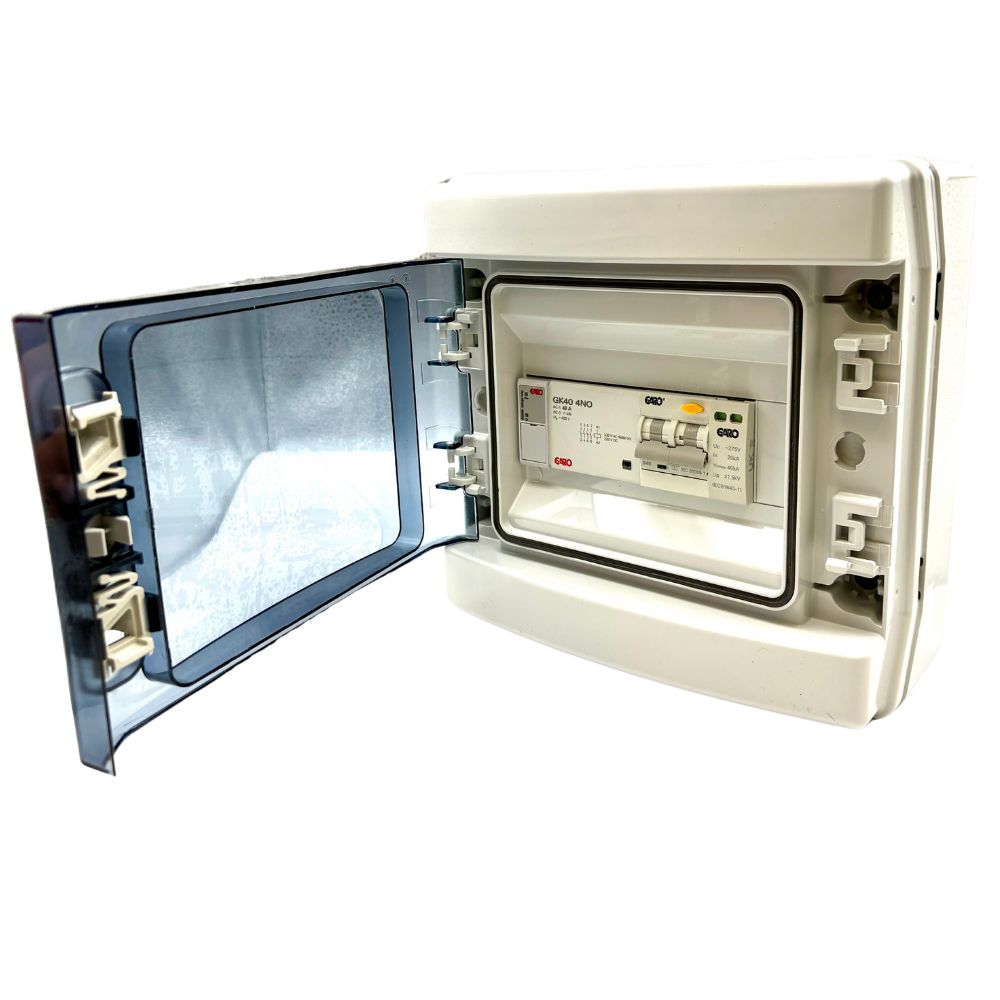

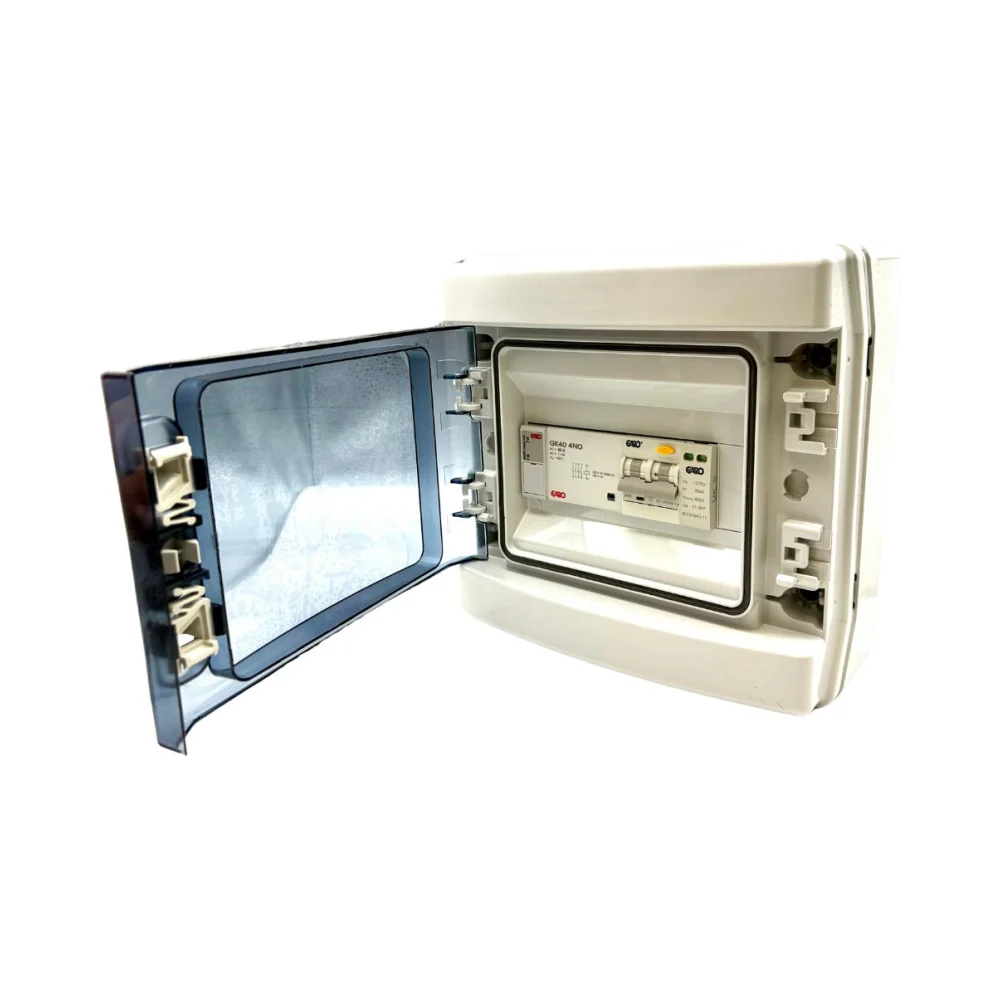

The Garo GCS8EV40PME is a high-performance, weatherproof pen loss EV consumer unit specifically engineered for domestic EV charger installations. This pre-wired PME fault detection consumer unit includes a factory-fitted 40A Type A RCBO, integrated PEN fault detection, and surge protection—all housed in an IP65-rated metal enclosure for superior outdoor durability.
When a voltage issue or PEN fault occurs, the unit disconnects power to keep your system safe. Once the voltage returns to normal and the fault clears, the unit automatically resets itself, and charging resumes without manual intervention.
Designed for installations on PME (TN-C-S) systems, this compact, regulation-compliant EV unit delivers peace of mind with full compliance to BS 7671 and 18th Edition standards, including Amendment 1:2020.
Key Features of the Garo GCS8EV40PME IP65 PEN Loss Consumer Unit
- Integrated B40A Type A RCBO – Provides protection against overload, short-circuit, and residual current faults.
- Built-In PME Fault Detection – Automatically disconnects all conductors (including earth) if voltage deviates beyond the safe 213V–253V range for over 4 seconds.
- Surge Protection Included – Guards sensitive electronics from voltage spikes.
- Short Circuit Rating – 16kA at 250V (Annex ZB).
- Fully Configured – 8 usable ways, all pre-filled—no free ways.

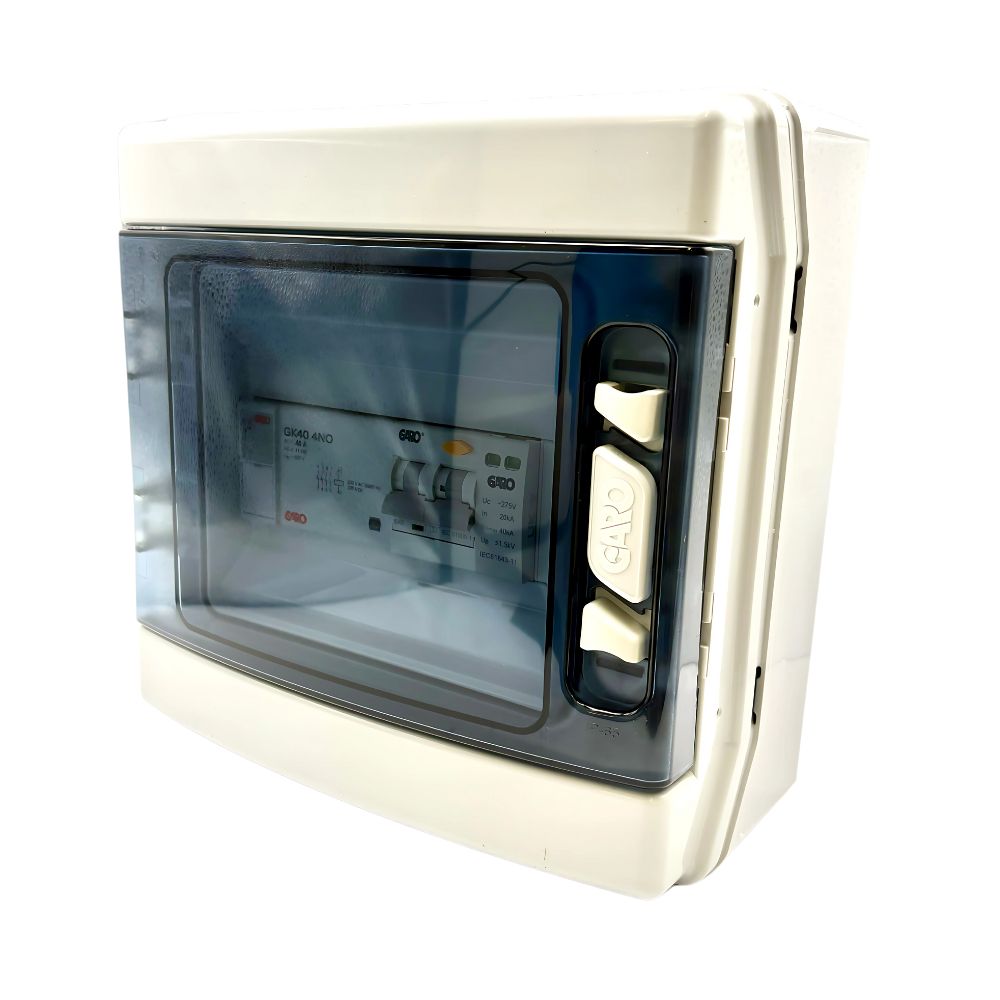

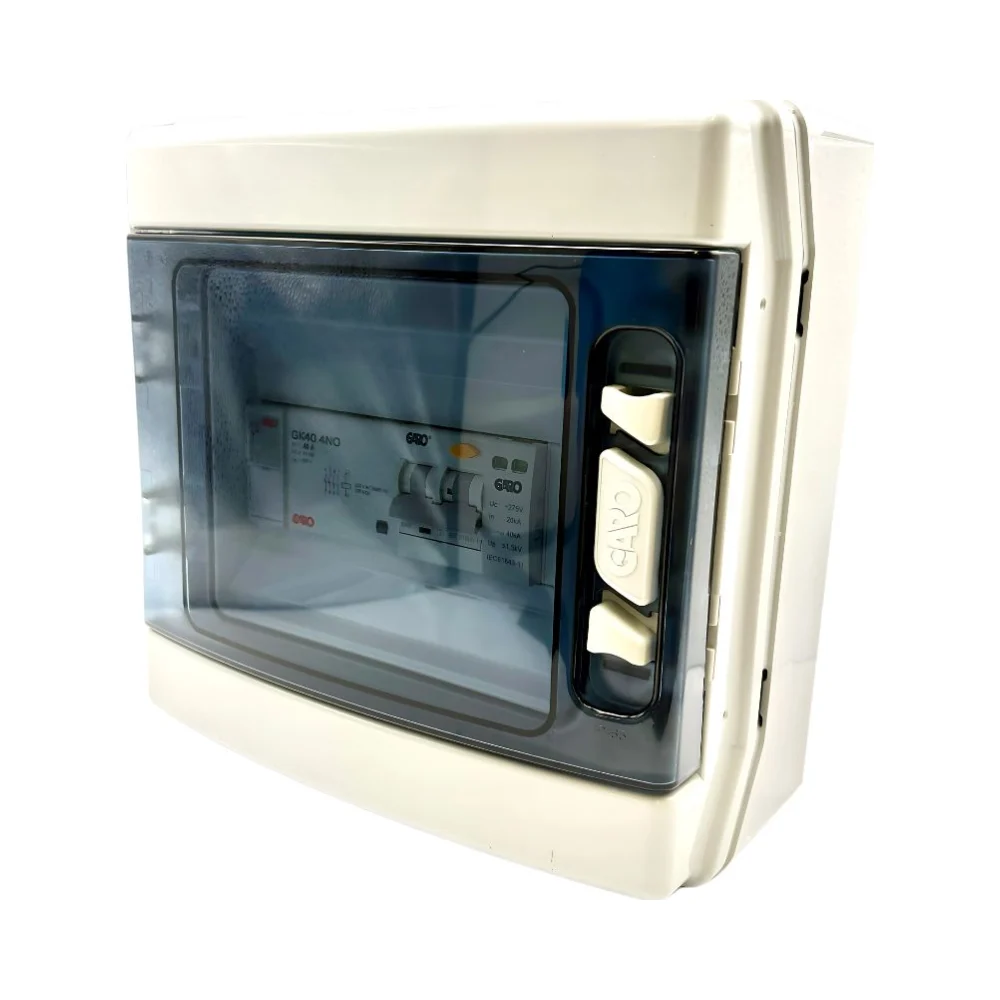

- Weatherproof Enclosure – IP65-rated, suitable for external installations.
- Terminals – 25mm for secure, professional-grade connections.
- Temperature Range – Operates from -25°C to +55°C (storage down to -35°C).
- Dimensions – Height: 231mm × Width: 238mm × Depth: 118mm.
- Warranty – 5 years (mechanical), 2 years (electronic components).
- BS 7671 Compliant – Fully compliant with Regulation 543.3.3.101(ii) & 722.411.4.
Understanding PEN Loss and Surge Protection
In PME (TN-C-S) earthing systems, the neutral and earth are combined into a single PEN conductor. If this conductor fails (known as a PEN fault), it can result in dangerous voltages on earthed metal parts. The Garo GCS8EV40PME protects against this risk with integrated PEN fault detection, which disconnects all conductors safely within 4 seconds if voltage exceeds 253V or drops below 213V.
In addition, the built-in surge protection defends your EV charger and connected devices from transient overvoltages caused by grid disturbances or lightning strikes—ensuring total safety and reliability.
Why Choose Garo GCS8EV40PME IP65 PEN Loss Consumer Unit?
This EV consumer unit with surge protection and PEN loss detection is ideal for modern, regulation-focused EV installations on PME systems. Its IP65 rating makes it perfect for outdoor mounting beside wall boxes, garages, or driveways.
- All-in-one: PEN fault, surge protection, and RCBO pre-installed
- Eliminates need for separate surge modules or external earth rods
- Designed for use with domestic EV chargers and TN-C-S networks
- Easy to install and built to endure UK weather conditions
About the Brand – Garo
Garo Electric has earned its reputation across Europe for delivering safe, innovative, and regulation-compliant solutions in circuit protection and EV infrastructure. Their pre-assembled EV consumer units are a top choice for electricians working in both domestic and commercial environments.
Summary of the Garo GCS8EV40PME IP65 PEN Loss Consumer Unit
The Garo GCS8EV40PME EV Consumer Unit combines surge protection, PEN fault detection, and a 40A Type A RCBO in a weatherproof, IP65-rated metal enclosure. Perfect for domestic EV charger installations on PME systems, this all-in-one solution meets all relevant standards under BS 7671 and offers fast, compliant installation straight out of the box.
