Description
IP65 EV Consumer Unit with Double Pole B40A Type A RCBO and PEN Fault Detection

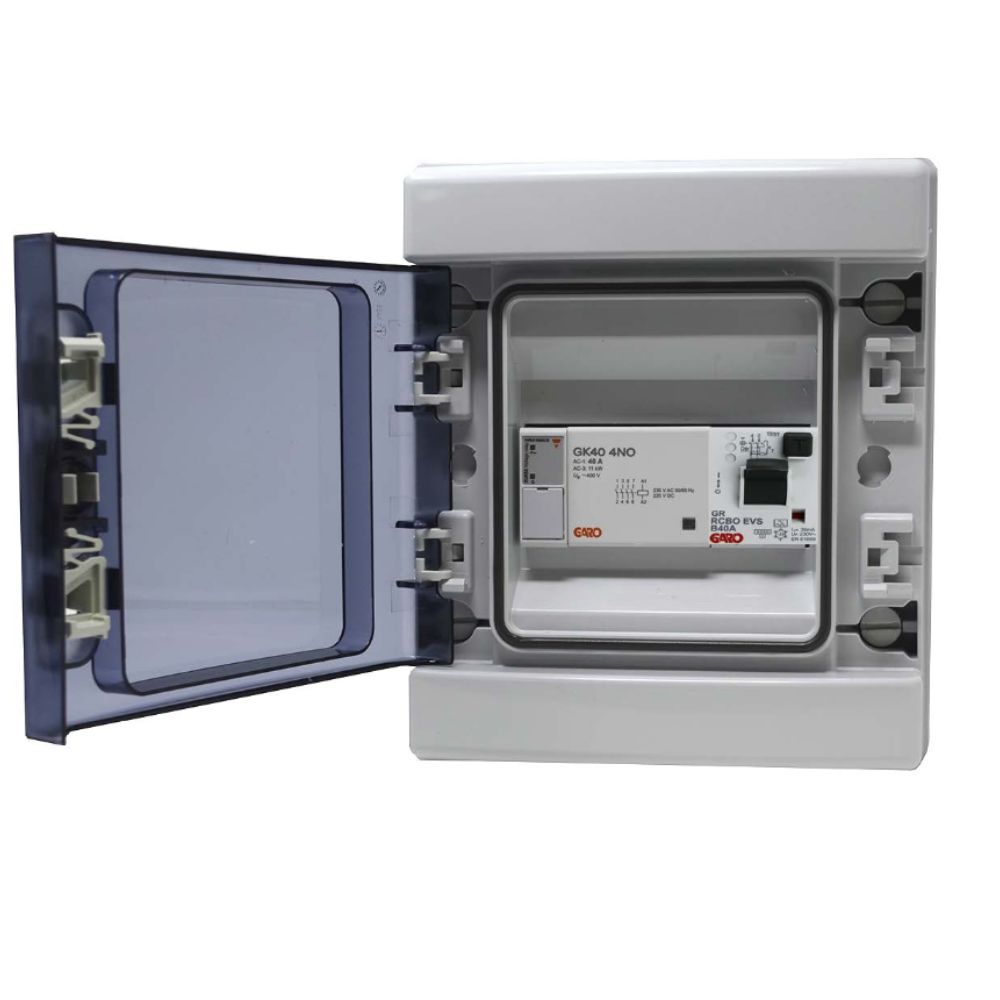

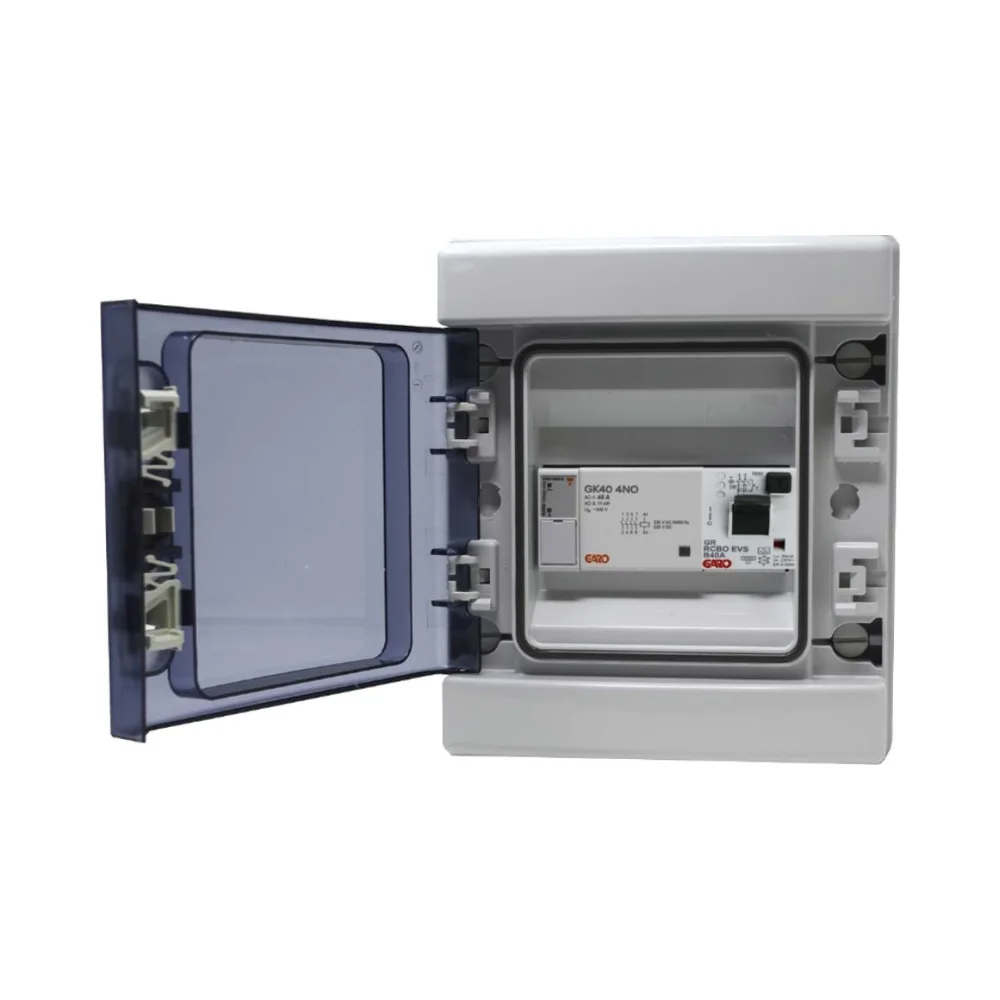

Garo GC6EV40PME – Weatherproof PEN Fault Detection EV Consumer Unit with Double Pole Protection
Compact & Compliant EV Consumer Unit for TN-C-S (PME) Systems
The Garo GC6EV40PME is a durable and regulation-ready pen loss EV consumer unit designed for domestic EV charger installations on PME systems. Featuring an IP65-rated ABS enclosure, this PME fault detection consumer unit includes a double pole B40A Type A RCBO and integrated PEN fault detection.
Ideal for external or garage-mounted use, it provides peace of mind for homeowners and installers looking for a compliant and compact EV charging solution under the latest BS 7671 (18th Edition) regulations.
When a voltage issue or PEN fault occurs, the unit disconnects power to keep your system safe. Once the voltage returns to normal and the fault clears, the unit automatically resets itself, and charging resumes without manual intervention.
Key Features of the Garo GC6EV40PME IP65 PEN Loss Consumer Unit
- Double Pole 40A Type A RCBO (B Curve) – Provides disconnection of both live and neutral conductors for enhanced safety.
- Integrated PME Fault Detection – Automatically disconnects all conductors (including earth) if voltage falls outside the 207V–253V safe range for more than 4 seconds.
- High Fault Current Rating – 16kA rms at 250V (Annex ZB).
- 6 Total Ways (No Free Ways) – Fully pre-configured for installation.
- IP65 Degree of Protection – Weatherproof ABS enclosure suitable for outdoor installations.
- BS 7671 Compliant – Fully meets 18th Edition Wiring Regulations including Amendment 1:2020.
- Safe Operating Temperatures – -25°C to +55°C (storage: -35°C to +55°C).
- Secure 25mm Terminals – Supports solid and stranded cables with reliable connection.
- Compact Dimensions – H: 231mm × W: 202mm × D: 113mm.
- Warranty – 5 years mechanical, 2 years on electronic components.
Understanding PEN Fault / PEN Loss Protection
In TN-C-S (PME) systems, the protective earth and neutral conductors are combined. If the PEN conductor becomes damaged or lost, hazardous voltages can appear on exposed earthed parts.
The Garo GC6EV40PME includes built-in PEN fault detection, which monitors voltage levels and cuts power to all conductors—including live, neutral, and earth—within 4 seconds if a voltage deviation is detected. This complies with Regulation 543.3.3.101(ii) and 722.411.4 of BS 7671, providing essential protection without needing an earth rod.
Why Choose Garo GC6EV40PME IP65 PEN Loss Consumer Unit?
The Garo GC6EV40PME is a practical, installer-friendly solution for safely powering domestic EV chargers. With no free ways, it’s fully pre-configured to get you up and running faster, and the IP65-rated ABS housing offers superior protection in tough environments.
- Double pole RCBO enhances safety for EV charging
- No need for separate PEN fault devices or external earthing
- ABS housing resists corrosion, ideal for coastal or damp areas
- Compact footprint, perfect for tight spaces or wall-box installations
About the Brand – Garo
Garo Electric is a trusted name in the electrical trade, especially for EV protection systems and consumer units. Known for quality, compliance, and smart design, Garo products are specified by professionals across Europe.
Summary of the Garo GC6EV40PME IP65 PEN Loss Consumer Unit
The Garo GC6EV40PME EV Consumer Unit combines PEN fault detection and a double pole 40A Type A RCBO inside an IP65-rated ABS enclosure, making it ideal for safe and regulation-compliant domestic EV installations. This PME fault detection consumer unit is designed for TN-C-S systems and fully complies with BS 7671:2018 including Amendment 1. With no spare ways and no extras required, it’s the perfect one-box solution for reliable EV protection.
