Garo 7 Way SPD Consumer Unit Kit Bi-Directional RCBOs with 5 Type A RCBOs and Free Meter Tails Gland
The Garo 7 Way SPD Consumer Unit Kit Bi-Directional RCBOs is a compact solution for modern domestic electrical installations where bi-directional current flow may be present. Supplied with integrated Type 2 surge protection, 5 Garo 6kA bi-directional Type A Curve B RCBOs and a free meter tails gland, it provides individual circuit protection in a space-efficient metal enclosure.
With 7 usable ways, the board is suitable for smaller installations and consumer unit upgrades. The included RCBOs are supplied in our standard default configuration unless you request a different combination of bi-directional RCBO ratings when placing your order.
Important – RCBO Selection and Default Configuration
This kit is supplied with our standard selection of 5 Garo 6kA bi-directional Type A Curve B RCBOs unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout or WhatsApp us with your order number immediately after placing your order.
If no alternative RCBO requirements are received, the default RCBO configuration shown below will be dispatched.
Default RCBO Configuration
- 2 × B6A Type A Bi-Directional RCBOs
- 1 × B20A Type A Bi-Directional RCBO
- 2 × B32A Type A Bi-Directional RCBOs
Alternative bi-directional RCBO ratings of 6A, 10A, 16A, 20A, 32A and 40A can be requested, subject to availability. Customers may change the amperage mix, but this product is supplied with bi-directional RCBOs only.
Please note: This kit is supplied with Garo 6kA Bi-Directional RCBOs. Uni-directional RCBOs are not supplied as a substitution within this product.
If you require standard uni-directional RCBOs, please view our Garo 6kA Uni-Directional RCBO range and separately listed uni-directional consumer unit kits.

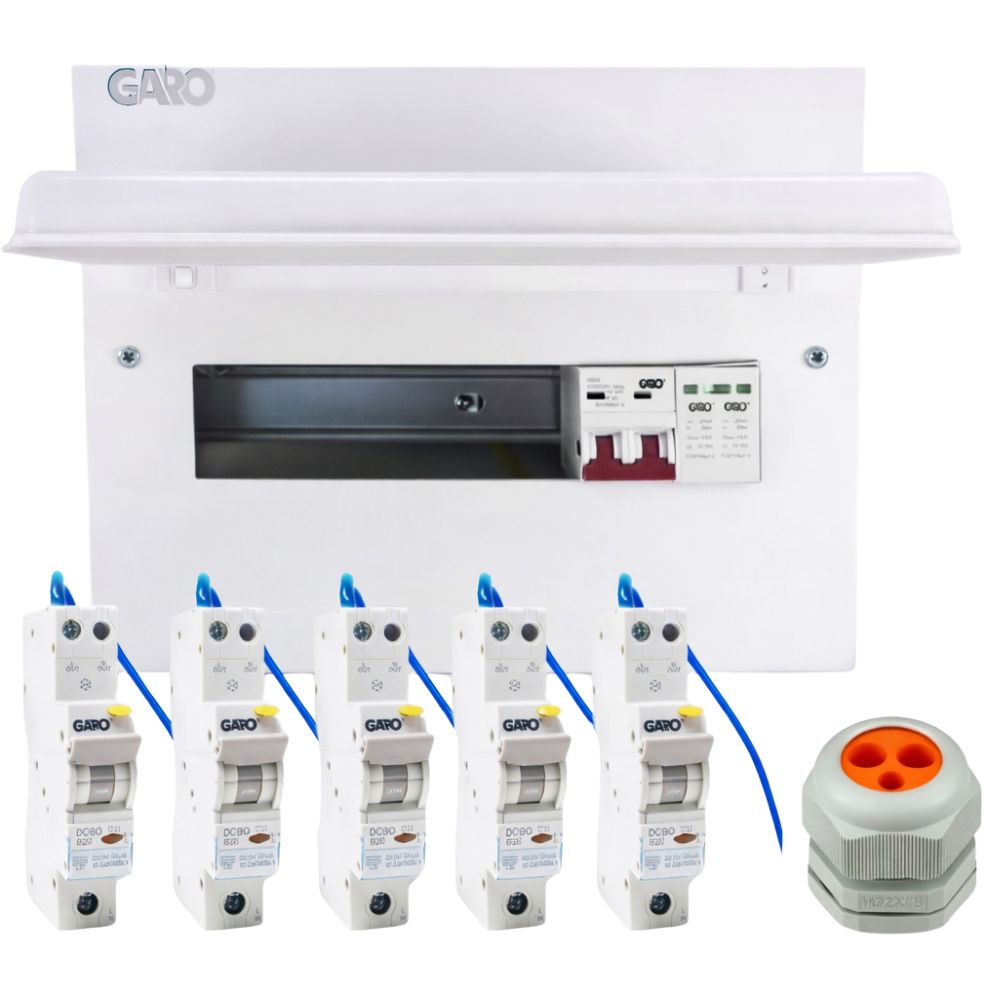

Garo SPD Consumer Unit Kit – What’s Included
- Garo Metal Consumer Unit with SPD
7 usable ways in a steel enclosure with factory-fitted Type 2 surge protection. - 5 × Garo 6kA Bi-Directional Type A RCBOs – Curve B
Provides combined overload, short-circuit and residual current protection. Supplied in our standard default RCBO configuration unless alternative bi-directional amperage ratings are requested when ordering. - Free Meter Tails Gland
Includes a Partex DTGM32TKL-LG Meter Tails Gland for neat and secure incoming meter tails cable entry. - Neutral and Earth Terminals with DIN Rail
Supplied ready for straightforward installation.
Technical Specifications – Garo 7 Way SPD Consumer Unit Kit Bi-Directional RCBOs
- Usable ways: 7
- RCBO quantity: 5
- RCBO type: Type A, Curve B, bi-directional
- RCBO breaking capacity: 6kA
- Available RCBO ratings: 6A, 10A, 16A, 20A, 32A and 40A
- Factory-fitted Type 2 Surge Protection Device (SPD)
- Free Partex DTGM32TKL-LG Meter Tails Gland included
- Nominal voltage: 230V / 50Hz
- Protection degree: IP40
- Enclosure material: Steel
- Hinged metal lid for easy access
- Multiple cable entry knock-outs at the top, bottom and rear
- Raised DIN rail for improved cable routing
- White powder-coated finish: RAL 9010
- Manufactured in accordance with BS EN 61439-3
- Complies with BS 7671:2018 + Amendment 3 (A3:2024)
Why Choose the Garo 7 Way SPD Consumer Unit Kit Bi-Directional RCBOs?
The Garo 7 Way SPD Consumer Unit Kit Bi-Directional RCBOs combines a compact metal enclosure, integrated Type 2 surge protection and 5 Garo 6kA bi-directional Type A RCBOs. It is suited to installations where bi-directional current flow may be present and individual circuit protection is required.
The standard RCBO configuration makes ordering quicker while still allowing electricians to request different bi-directional amperage ratings. If no alternative RCBO selection is provided, the default configuration shown above will be dispatched.
