Description
7 Way SPD Consumer Unit Kit with 5 Type A RCBOs and Free Meter Tails Gland
The Garo 7 Way SPD Consumer Unit Kit is a compact, regulation-compliant solution designed for modern domestic electrical installations. With integrated surge protection, 5 Type A RCBOs, and a free meter tails gland, this kit provides enhanced safety, flexibility, and installer convenience straight out of the box.
Ideal for new installations or consumer unit upgrades, the metal enclosure and pre-configured layout help reduce installation time while ensuring full compliance with current UK wiring regulations.
5 Type A Curve B RCBOs – Amperage Selection at Checkout
Please select your required RCBO amperages (6A, 10A, 16A, 20A, 32A or 40A) at checkout.
Add your selection to the order notes or WhatsApp us with your order number after placing the order.

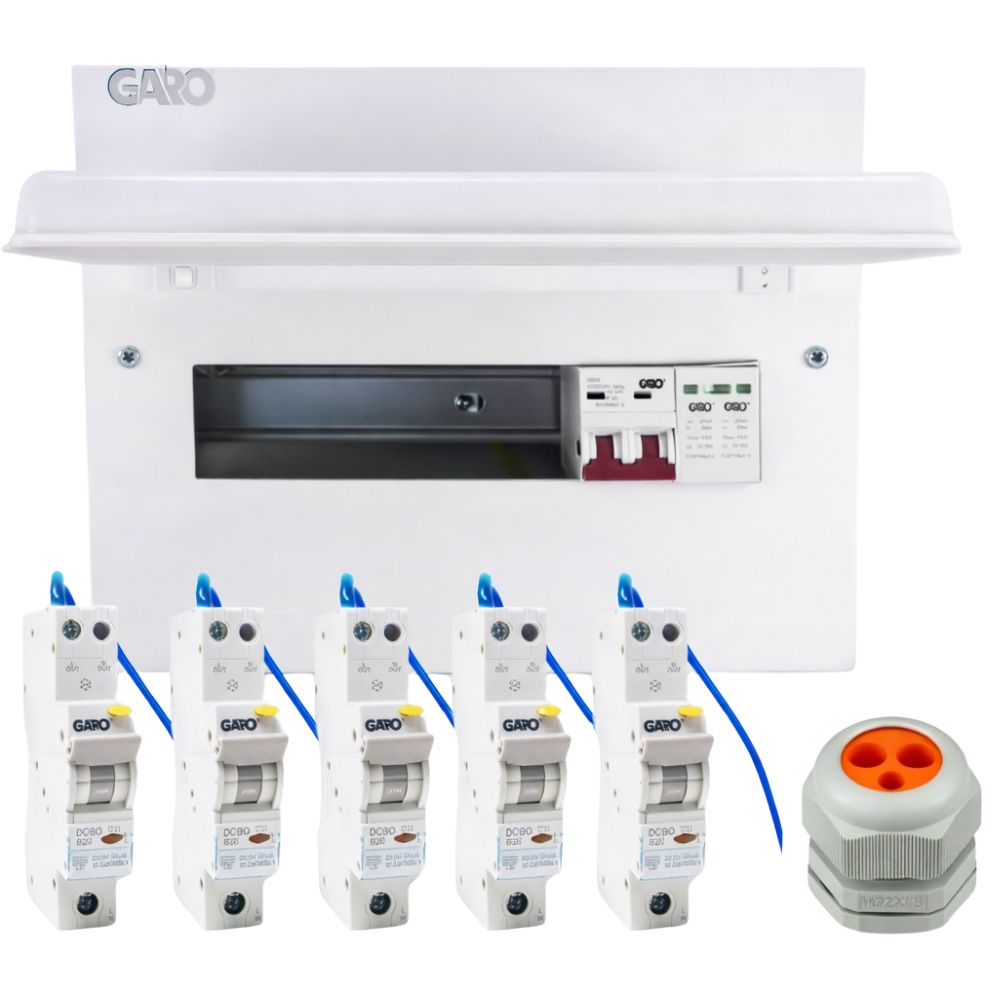

Garo SPD Consumer Unit Kit – What’s Included
- Garo Metal Consumer Unit with SPD
7 usable ways in a robust steel enclosure with factory-fitted Type 2 surge protection. - 5 × Type A RCBOs (Curve B)
Provides combined overload, short-circuit, and residual current protection.
Suitable for modern electronic loads and household appliances.
RCBO amperages selectable at checkout (6A, 10A, 16A, 20A, 32A or 40A). - Free Meter Tails Gland
Ensures a neat, secure, and compliant cable entry. - Neutral and Earth Terminals with DIN Rail
Supplied ready for straightforward installation.
Technical Specifications – Garo 7 Way SPD Consumer Unit Kit
- Usable ways: 7
- RCBO quantity: 5
- Factory-fitted Type 2 Surge Protection Device (SPD)
- Nominal voltage: 230V / 50Hz
- Protection degree: IP40
- Enclosure material: Steel
- Hinged metal lid for easy access
- Multiple cable entry knock-outs (top, bottom and rear)
- Raised DIN rail for improved cable routing
- White powder-coated finish (RAL 9010)
- Manufactured in accordance with BS EN 61439-3
- Complies with BS 7671:2018 + Amendment 3 (A3:2024)
Why Choose the Garo 7 Way SPD Consumer Unit Kit?
The Garo 7 Way SPD Consumer Unit Kit is designed to deliver dependable protection for today’s electrically demanding homes. Integrated surge protection helps safeguard sensitive equipment, while Type A RCBOs ensure compatibility with modern appliances and electronic loads.
A professional, space-efficient solution from a trusted manufacturer — ideal where safety, compliance, and ease of installation matter.
