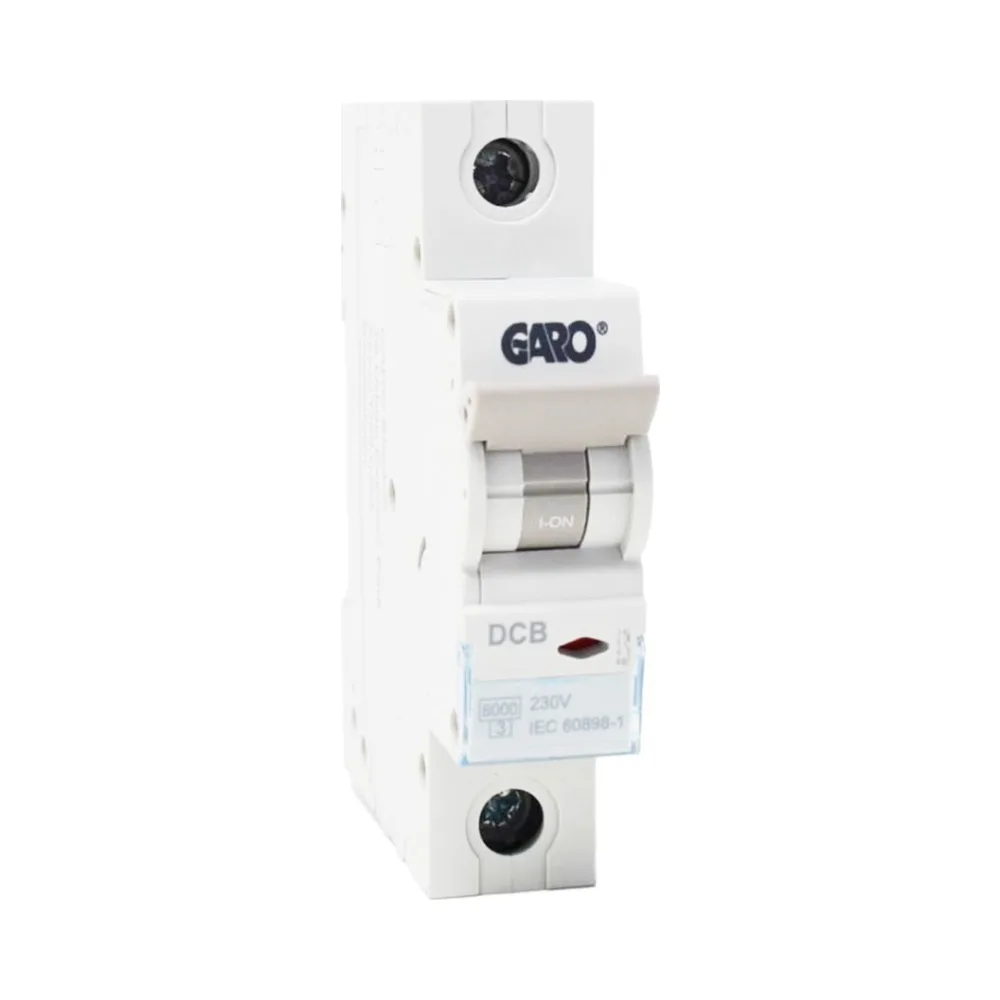

Garo 50A Curve B 6kA MCB – 50A Single-Pole Circuit Protection
Specify this breaker for higher-current circuits where a 50A MCB is specified. The Garo 50A Curve B 6kA MCB is a DIN-rail mounted, single-pole miniature circuit breaker rated at 50A, with a 6kA short-circuit breaking capacity. It provides overcurrent protection against overloads and short circuits in appropriately designed electrical installations.
Key Features
- Brand: GARO
- Part number: DCBGRB150
- Rated current: 50A
- Tripping characteristic: Curve B
- Breaking capacity: 6kA
- Poles: 1 (single pole)
- Mounting: DIN rail, in compatible equipment
Curve B Tripping Characteristic
Verify the intended board accepts this GARO device before installation. The typical instantaneous magnetic tripping band for a Curve B MCB is 3–5 times its rated current; confirm suitability using the manufacturer’s published characteristics and the installation design.
Selection and Installation
Check the design current, conductor protection, prospective fault current, disconnection requirements and compatibility with the specific distribution board. An MCB does not itself provide residual current protection. Installation and device selection should follow BS 7671 and the manufacturer’s instructions.
Explore Garo circuit protection devices or compare Garo RCBOs where combined residual current and overcurrent protection is needed.
