Description
19 Way SPD Consumer Unit Kit with 15 Type A RCBOs and Free Meter Tails Gland
The Garo 19 Way SPD Consumer Unit Kit is a high-capacity, regulation-compliant solution designed for large domestic and light commercial electrical installations. With integrated surge protection, 15 Type A RCBOs, and a free meter tails gland, this kit delivers enhanced safety, flexibility, and installer convenience straight out of the box.
Ideal for installations requiring a higher circuit count, the robust metal enclosure and pre-configured layout help reduce installation time while ensuring full compliance with current UK wiring regulations.
15 Type A Curve B RCBOs – Amperage Selection at Checkout
Please select your required RCBO amperages (6A, 10A, 16A, 20A, 32A or 40A) at checkout.
Add your selection to the order notes or WhatsApp us with your order number after placing the order.

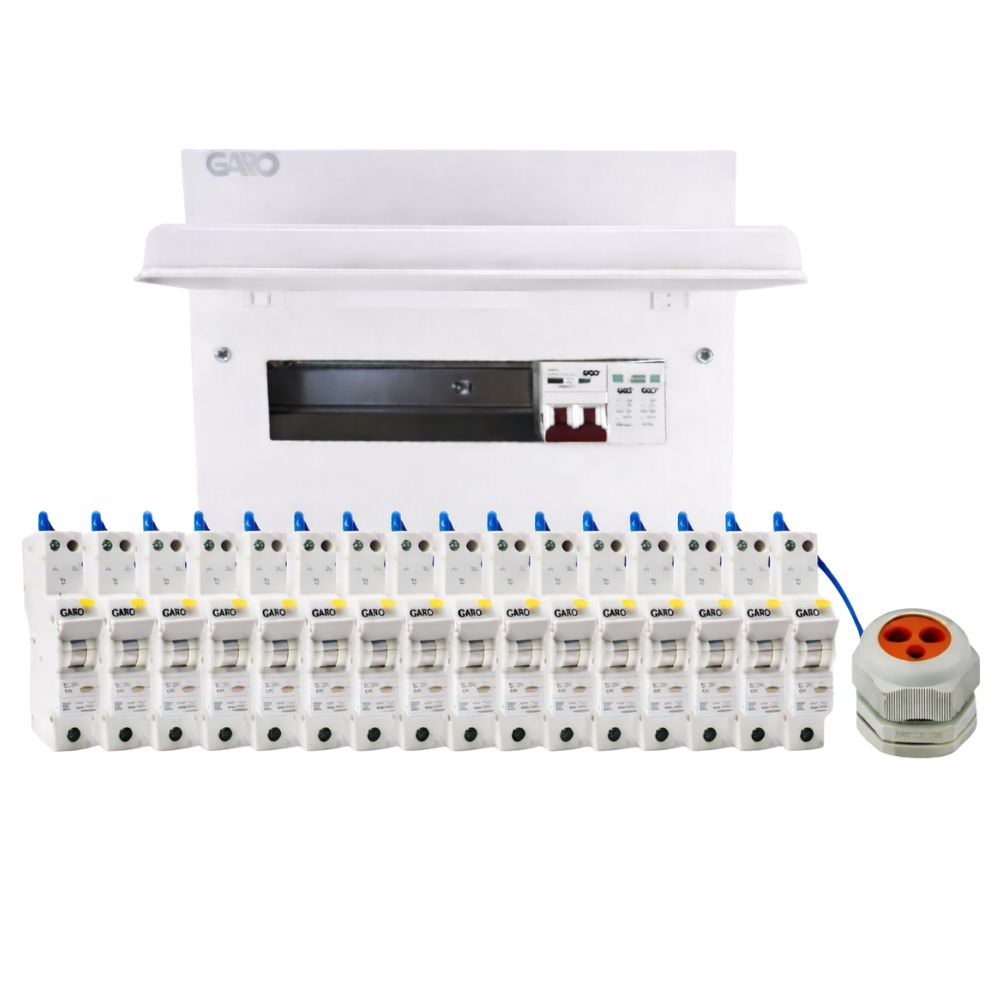

Garo SPD Consumer Unit Kit – What’s Included
- Garo Metal Consumer Unit with SPD
19 usable ways in a robust steel enclosure with factory-fitted Type 2 surge protection. - 15 × Type A RCBOs (Curve B)
Provides combined overload, short-circuit, and residual current protection.
Suitable for modern electronic loads and household appliances.
RCBO amperages selectable at checkout (6A, 10A, 16A, 20A, 32A or 40A). - Free Meter Tails Gland
Ensures a neat, secure, and compliant cable entry. - Neutral and Earth Terminals with DIN Rail
Supplied ready for straightforward installation.
Technical Specifications – Garo 19 Way SPD Consumer Unit Kit
- Usable ways: 19
- RCBO quantity: 15
- Factory-fitted Type 2 Surge Protection Device (SPD)
- Nominal voltage: 230V / 50Hz
- Protection degree: IP40
- Enclosure material: Steel
- Hinged metal lid for easy access
- Multiple cable entry knock-outs (top, bottom and rear)
- Raised DIN rail for improved cable routing
- White powder-coated finish (RAL 9010)
- Manufactured in accordance with BS EN 61439-3
- Complies with BS 7671:2018 + Amendment 3 (A3:2024)
Why Choose the Garo 19 Way SPD Consumer Unit Kit?
The Garo 19 Way SPD Consumer Unit Kit is designed to deliver dependable protection for high-circuit-count installations. Integrated surge protection safeguards sensitive equipment, while Type A RCBOs ensure compatibility with modern appliances and electronic loads.
A professional, high-capacity solution from a trusted manufacturer — ideal where safety, compliance, and ease of installation matter.
