Garo 13 Way SPD Consumer Unit Kit with 10 Type A RCBOs and Free Meter Tails Gland
The Garo 13 Way SPD Consumer Unit Kit is a high-capacity solution for larger domestic electrical installations. Supplied with integrated Type 2 surge protection, 10 Garo 6kA uni-directional Type A Curve B RCBOs and a free meter tails gland, it offers a practical combination of circuit protection, flexibility and installer convenience.
With 13 usable ways, the board provides additional capacity for modern installations and future circuit requirements. The included RCBOs are supplied in our standard default configuration unless you request a different combination of uni-directional RCBO ratings when placing your order.
Important – RCBO Selection and Default Configuration
This kit is supplied with our standard selection of 10 Garo 6kA uni-directional Type A Curve B RCBOs unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout or WhatsApp us with your order number immediately after placing your order.
If no alternative RCBO requirements are received, the default RCBO configuration shown below will be dispatched.
Default RCBO Configuration
- 2 × B6A Type A RCBOs
- 2 × B16A Type A RCBOs
- 2 × B20A Type A RCBOs
- 4 × B32A Type A RCBOs
Alternative uni-directional RCBO ratings of 6A, 10A, 16A, 20A, 32A and 40A can be requested, subject to availability. Customers may change the amperage mix, but this product is supplied with uni-directional RCBOs only.
Please note: This kit is supplied with Garo 6kA Uni-Directional RCBOs. Bi-directional RCBOs are not available as a substitution within this product.
If your installation requires bi-directional RCBO protection, please order our separate Garo 13 Way SPD Consumer Unit Kit with Bi-Directional RCBOs, which is priced separately.

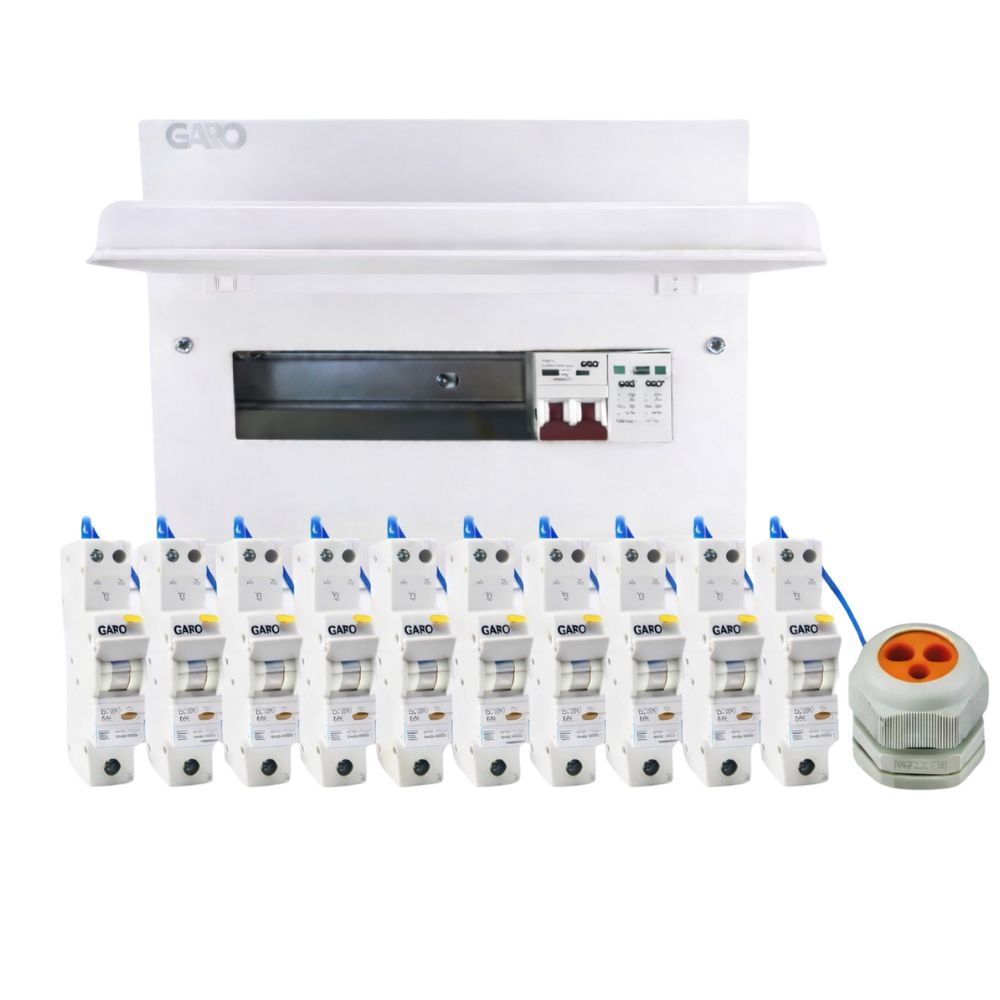

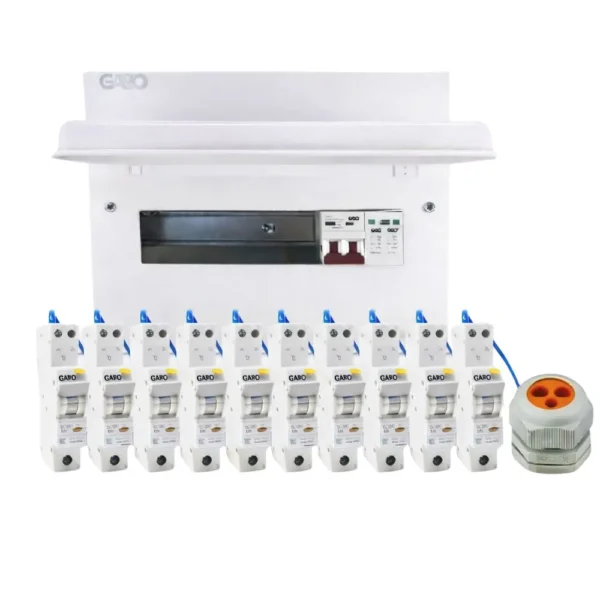

Garo SPD Consumer Unit Kit – What’s Included
- Garo Metal Consumer Unit with SPD
13 usable ways in a steel enclosure with factory-fitted Type 2 surge protection. - 10 × Garo 6kA Uni-Directional Type A RCBOs – Curve B
Provides combined overload, short-circuit and residual current protection. Supplied in our standard default RCBO configuration unless alternative uni-directional amperage ratings are requested when ordering. - Free Meter Tails Gland
Includes a Partex DTGM32TKL-LG Meter Tails Gland for a neat and secure cable entry for the incoming meter tails. - Neutral and Earth Terminals with DIN Rail
Supplied ready for straightforward installation.
Technical Specifications – Garo 13 Way SPD Consumer Unit Kit
- Usable ways: 13
- RCBO quantity: 10
- RCBO type: Type A, Curve B, uni-directional
- RCBO breaking capacity: 6kA
- Available RCBO ratings: 6A, 10A, 16A, 20A, 32A and 40A
- Factory-fitted Type 2 Surge Protection Device (SPD)
- Free Partex DTGM32TKL-LG Meter Tails Gland included
- Nominal voltage: 230V / 50Hz
- Protection degree: IP40
- Enclosure material: Steel
- Hinged metal lid for easy access
- Multiple cable entry knock-outs at the top, bottom and rear
- Raised DIN rail for improved cable routing
- White powder-coated finish: RAL 9010
- Manufactured in accordance with BS EN 61439-3
- Complies with BS 7671:2018 + Amendment 3 (A3:2024)
Why Choose the Garo 13 Way SPD Consumer Unit Kit?
The Garo 13 Way SPD Consumer Unit Kit combines a spacious 13-way metal enclosure, integrated Type 2 surge protection and 10 Garo 6kA uni-directional Type A RCBOs. It is suited to larger domestic installations where individual circuit protection and additional capacity are required.
The standard RCBO configuration makes ordering quicker while still giving electricians flexibility to request different uni-directional amperage ratings. If no alternative RCBO selection is provided, the default configuration shown above will be dispatched.
