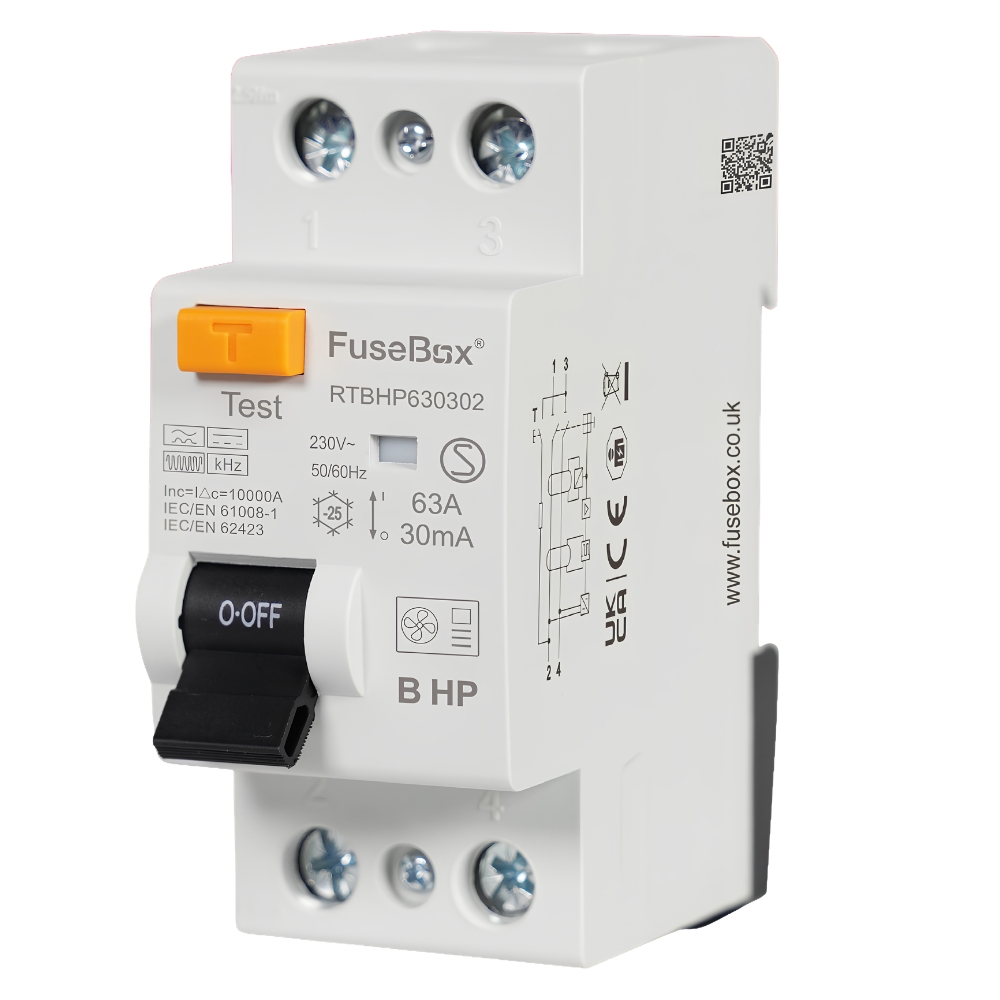

FuseBox Type B HP RCD 63A 30mA – RTBHP630302
The FuseBox Type B HP RCD 63A 30mA (RTBHP630302) is a specialist 2-pole residual current device developed for inverter-driven heat pump installations. Designed to detect AC, pulsating DC and smooth DC residual fault currents, this Type B HP RCD provides enhanced protection where high-frequency leakage currents may occur.
Unlike conventional RCDs, the RTBHP630302 is designed for high-frequency operation, with a capability extending beyond 20kHz. It distinguishes normal high-frequency leakage from genuine fault conditions, making it particularly suitable for modern heat pump systems.
Key Features
- 63A rated current with 30mA residual current sensitivity
- 2-pole Type B HP residual current protection
- 6kA rating
- Detects AC, pulsating DC and smooth DC residual fault currents
- Tested to operate at frequencies greater than 20kHz
- Maintains a 150mA tripping threshold above 1kHz
- Designed to distinguish high-frequency leakage from genuine faults
- Compact 2-module design
- Compatible with the FuseBox single-phase range
- 5-year manufacturer’s guarantee
Designed for Inverter Heat Pumps
Modern inverter-driven heat pumps can generate high-frequency residual currents during normal operation. These characteristics make the selection of an appropriate RCD particularly important.
The FuseBox Type B HP RCD 63A 30mA is specifically developed for these applications. Its high-frequency capabilities help distinguish normal operational leakage from genuine residual current faults, supporting dependable protection in suitable heat pump installations.
High-Frequency Residual Current Protection
The RTBHP630302 detects AC, pulsating DC and smooth DC residual fault currents. It has been tested at frequencies greater than 20kHz and maintains a 150mA tripping threshold above 1kHz.
These characteristics make the device particularly useful where inverter technology produces residual current components at higher frequencies.
Technical Specifications
- Manufacturer: FuseBox
- Product code: RTBHP630302
- Device type: Type B HP RCD
- Number of poles: 2
- Rated current: 63A
- Rated residual current: 30mA
- Rating: 6kA
- High-frequency capability: Tested above 20kHz
- Tripping threshold above 1kHz: 150mA
- Module width: 2 modules
- Compatibility: FuseBox single-phase range
- Guarantee: 5 years
Installation and Compatibility
The compact 2-module construction allows the RTBHP630302 to be incorporated into compatible FuseBox single-phase distribution equipment without occupying excessive DIN rail space.
When selecting an RCD for a heat pump installation, electricians should follow the heat pump manufacturer’s protective device requirements and confirm suitability for the electrical installation.
