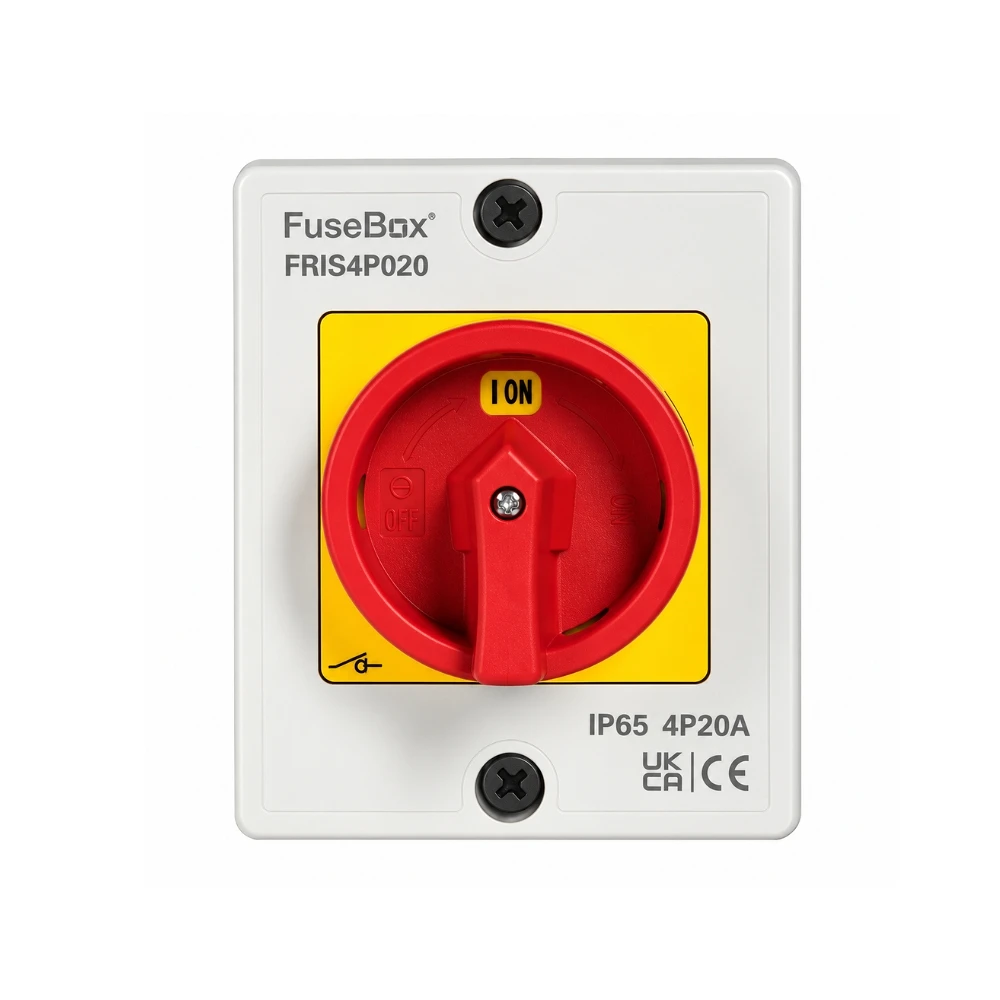

FuseBox FRIS4P020 20A 4 Pole AC Rotary Isolator
The FuseBox FRIS4P020 20A 4 Pole AC Rotary Isolator provides compact local isolation for lower-current three-phase equipment and control circuits. Its four-pole configuration disconnects L1, L2, L3 and Neutral together, helping provide a clear and secure local isolation point.
Designed for 400V AC, 50Hz applications, the FuseBox FRIS4P020 20A 4 Pole AC Rotary Isolator uses a durable polycarbonate enclosure with IP65 protection. The manually operated red/yellow interlocked handle is padlockable in the OFF position for safer maintenance isolation.
Key Features
- 20A rated current
- 4 pole AC rotary switch disconnector
- 400V AC, 50Hz rated voltage
- Disconnects L1, L2, L3 and Neutral
- Early-break Neutral design
- IP65 rated polycarbonate enclosure
- Padlockable red/yellow interlocked handle
- Top and bottom M20/M25 cable entry drill-outs
- Removable internal switch assembly for easier installation
- EN 60947-3 compliant
- 5 year guarantee
- Dimensions: 126mm (H) x 101mm (W) x 121mm (D including switch)
- FuseBox product code: FRIS4P020
Applications
Suitable for three-phase equipment including heat pumps, air-conditioning plant, compressors, motors, three-phase inverters, machinery and other commercial or industrial circuits requiring local isolation.
