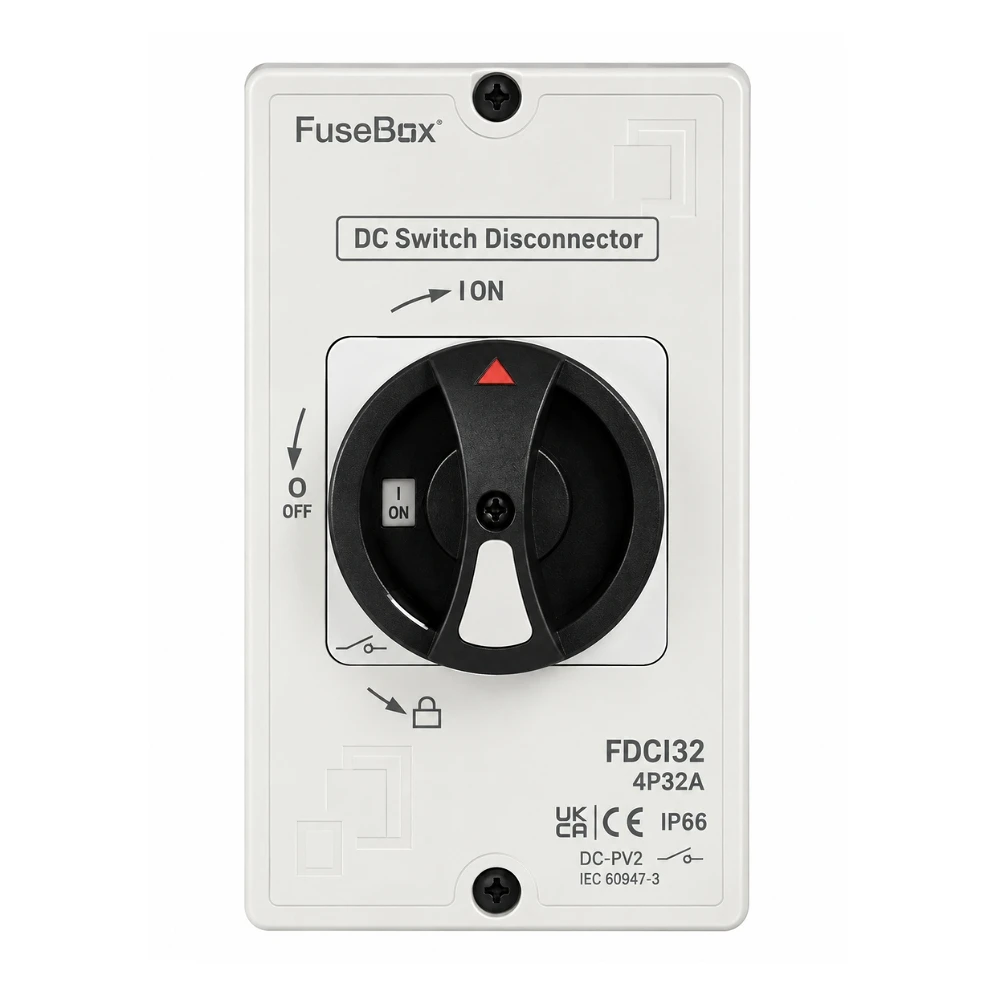

FuseBox FDCI32 32A DC Rotary Isolator
The FuseBox FDCI32 32A DC Rotary Isolator is designed for safe and reliable isolation of DC electrical circuits. Featuring four-pole switching and an IP66 rated enclosure, it is particularly suited to solar PV, battery storage, inverter and other DC installations.
The FuseBox FDCI32 32A DC Rotary Isolator can be installed between photovoltaic panels and an inverter, between solar arrays and associated DC equipment, or within other systems where secure DC isolation is required for maintenance or servicing.
Key Features
- 32A current rating
- 4 pole DC rotary isolator
- IP66 rated enclosure
- Rated insulation voltage (Ui): 1500V
- Rated impulse withstand voltage (Uimp): 8kV
- Maximum cable capacity: 16mm²
- M12, M16, M20 and M25 cable entry drill-outs
- Interlocked and padlockable isolation mechanism
- Internal switch body can be removed to assist installation
- IEC 60947-3 compliant
- Suitable for solar PV, battery systems, DC chargers and inverters
- 5 year guarantee
- Dimensions: 180mm (H) x 98mm (W) x 115mm (D including switch)
- FuseBox product code: FDCI32
Solar PV and DC Isolation
The FDCI32 provides a dedicated means of disconnecting DC conductors so that sections of a solar PV, battery or other DC system can be safely isolated during maintenance, inspection or installation work.
