Description

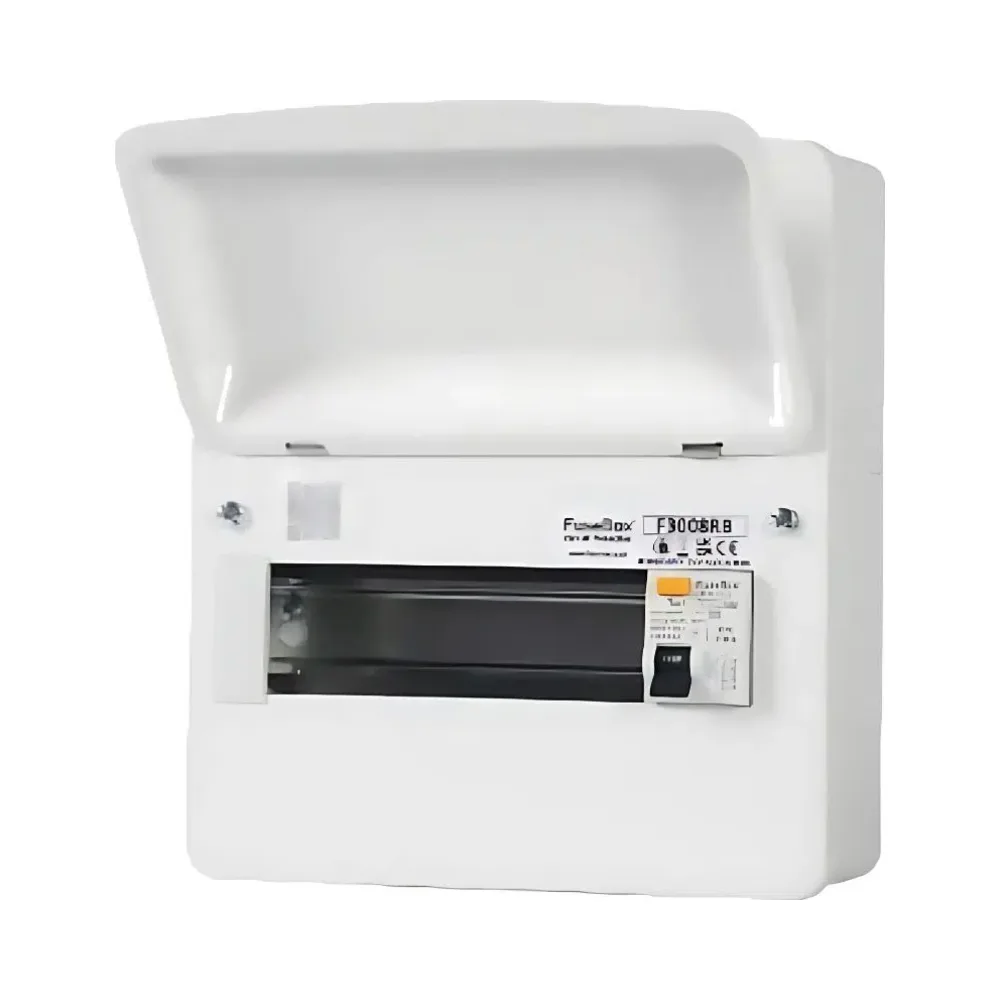

8 Way Consumer Unit with 63A Type B RCD
FuseBox F3008RB
The FuseBox F3008RB is an 8-way consumer unit featuring a factory-fitted 63A 30mA Type B RCD incomer, offering enhanced protection for modern electrical systems. Type B RCDs are capable of detecting AC, pulsating DC, and smooth DC residual currents, making them suitable for installations with EV chargers, PV inverters, or other electronic loads.
This unit complies with BS EN 61439-3 and the 18th Edition Wiring Regulations, including Amendment 3 requirements. Its IP2XC-rated, non-combustible steel enclosure ensures safe, fire-rated housing for protective devices.
Key Features – 8 Way Board with Advanced Type B RCD
- 8 usable ways within a 10-module enclosure
- 63A 30mA Type B RCD protects against AC and DC residual currents
- Fully compliant with BS EN 61439-3 and 18th Edition regs
- Steel construction, Amendment 3 fire-rated enclosure
- IP2XC rating prevents finger access to live parts
- Raised and removable DIN rail for quicker installs
- Captive cover screws and upgraded grommet strip
- Self-closing lid and top-mounted terminal bars
- Multiple round knockouts for flexible cable entry
- Smooth RAL 9003 white powder-coated finish
Product Dimensions
- Height: 263mm
Width: 234mm
Depth: 116mm
Ideal For:
- Domestic and small commercial installations
- Installations using EV chargers, solar systems, or sensitive electronics
- Projects needing both fire-safe construction and DC-sensitive protection
- Electricians seeking easy-to-install, regulation-compliant boards
⚠️ What Is a Type B RCD?
A Type B RCD detects AC, pulsating DC, and smooth DC residual currents. It is required in circuits with equipment such as:
- Electric vehicle (EV) charging points
- Solar PV inverters
- Variable-speed drives or UPS systems
This level of protection ensures fault currents aren’t missed in systems where DC leakage is likely.
