FuseBox F3007MZ 7 Way RCBO Consumer Unit With SPD

Description

Smarter 18th Edition Compliant RCBO Consumer Unit – With FuseBox F3007MZ SPD Upgrade

FuseBox F3007MZ

The FuseBox F3007MZ 7 Way RCBO Consumer Unit With SPD brings more flexibility, safety, and space efficiency to your installation. It’s part of the latest F3 range, replacing the older F2006MX. This upgraded board offers 7 usable ways instead of 6 by integrating a Type 2 surge protection device that connects directly to the busbar, eliminating the need for a separate MCB.

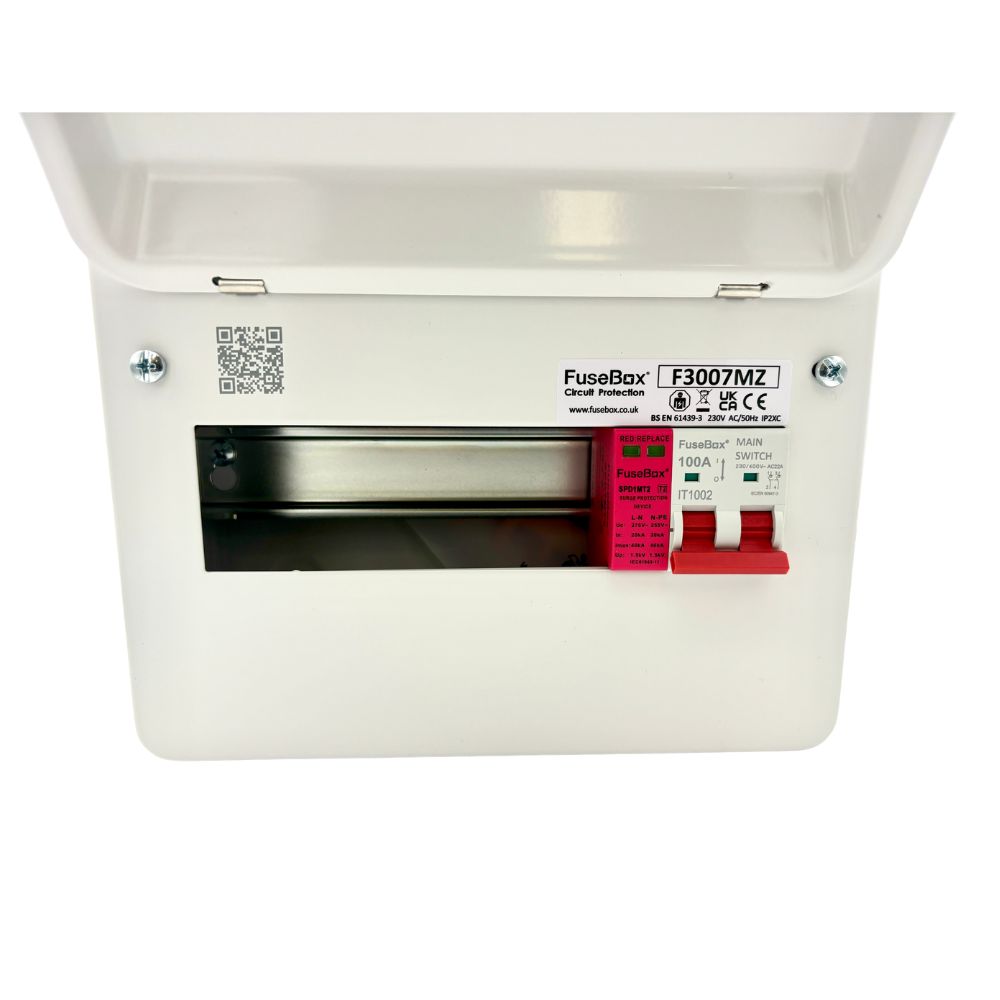

This new RCBO consumer unit includes a fully metal enclosure, a 100A double pole main switch, and a tail clamp for meter tails. It’s built to comply with BS 7671 18th Edition regulations. The new SPD also features a pink enclosure, making identification quick and easy.

🔍 Key Features – FuseBox F3007MZ RCBO Consumer Unit With SPD

• 7 usable outgoing ways
• Type 2 SPD connects to busbar – no MCB needed
• 100A DP main switch (included)

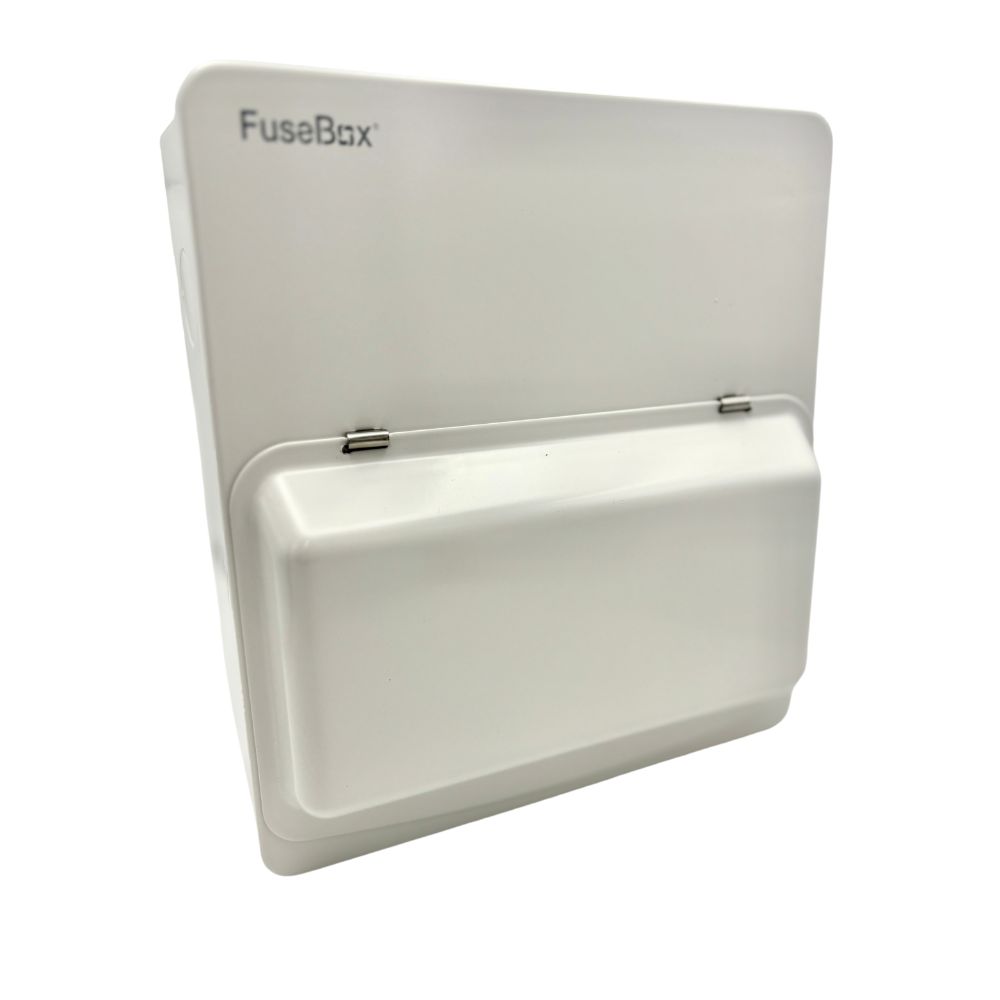

• Fully metal enclosure (1mm steel, RAL 9001 finish)
• Tail clamp for meter tails (factory-fitted)

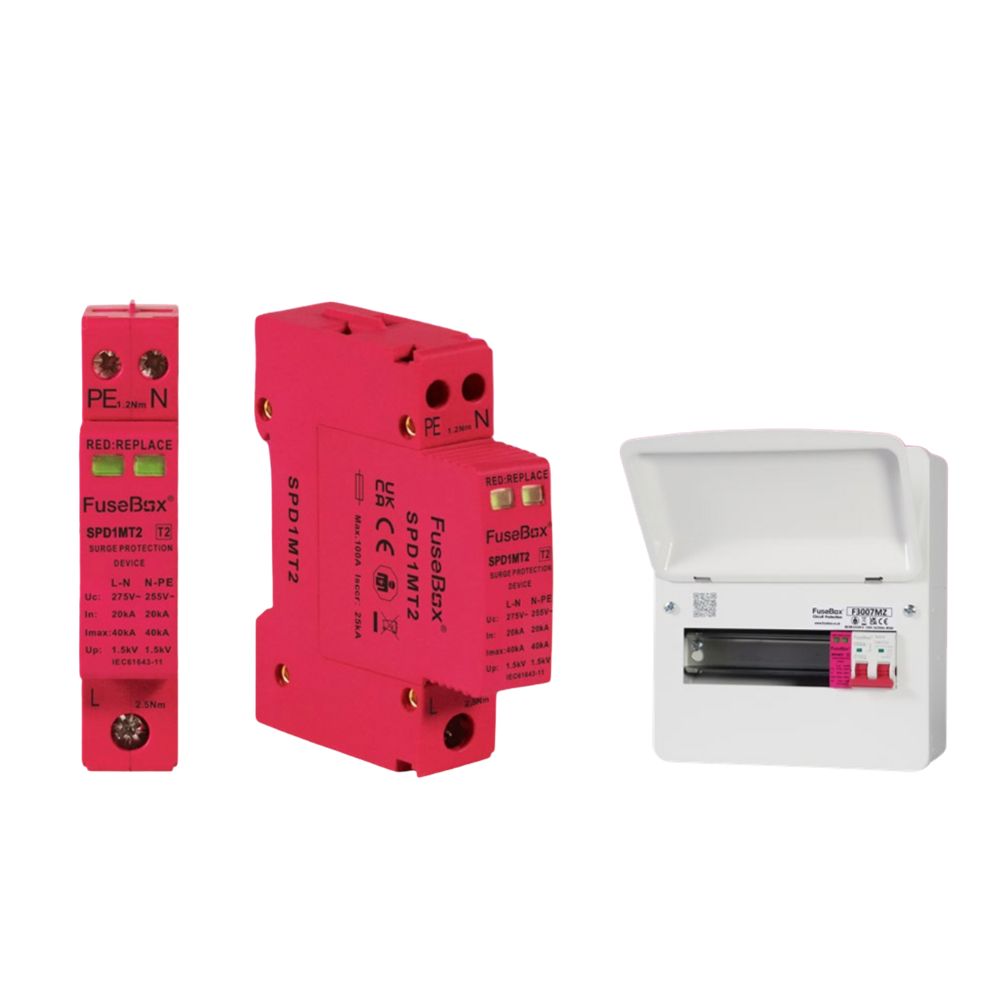

• Compact Pink SPD with Green and Red indicators
• Complies with BS EN 61439-3 and 18th Edition wiring regulations

📏 Technical Overview – F3 Design

• Dimensions: 259mm x 234mm x 113mm
• Main Switch: 100A double pole
• SPD: Direct busbar Type 2 (pink module)
• DIN Rail: 35mm
• Voltage: 230V, 50–60Hz
• Knockouts: 20–40mm
• Tail Clamp: Included

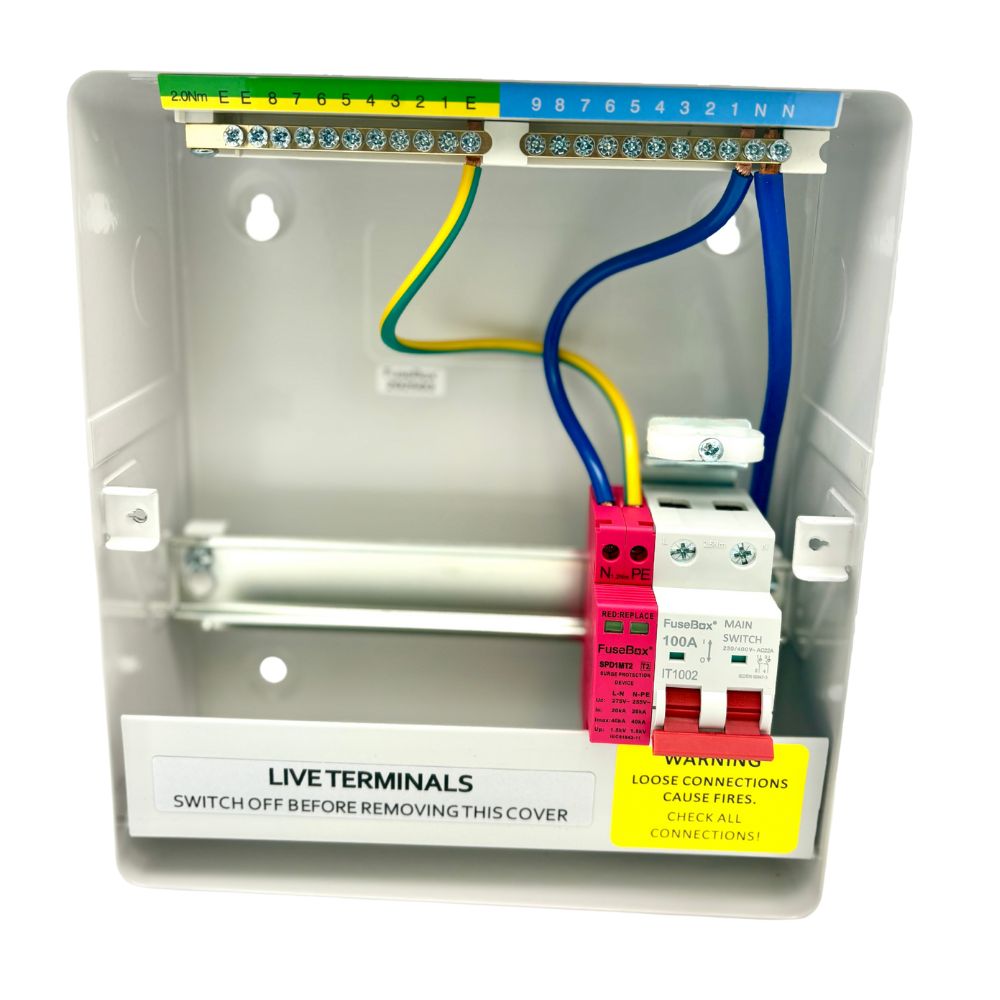

• Earth/Neutral Bars: Labelled and shielded

🆕 What’s New in the FuseBox F3 Consumer Unit Range?

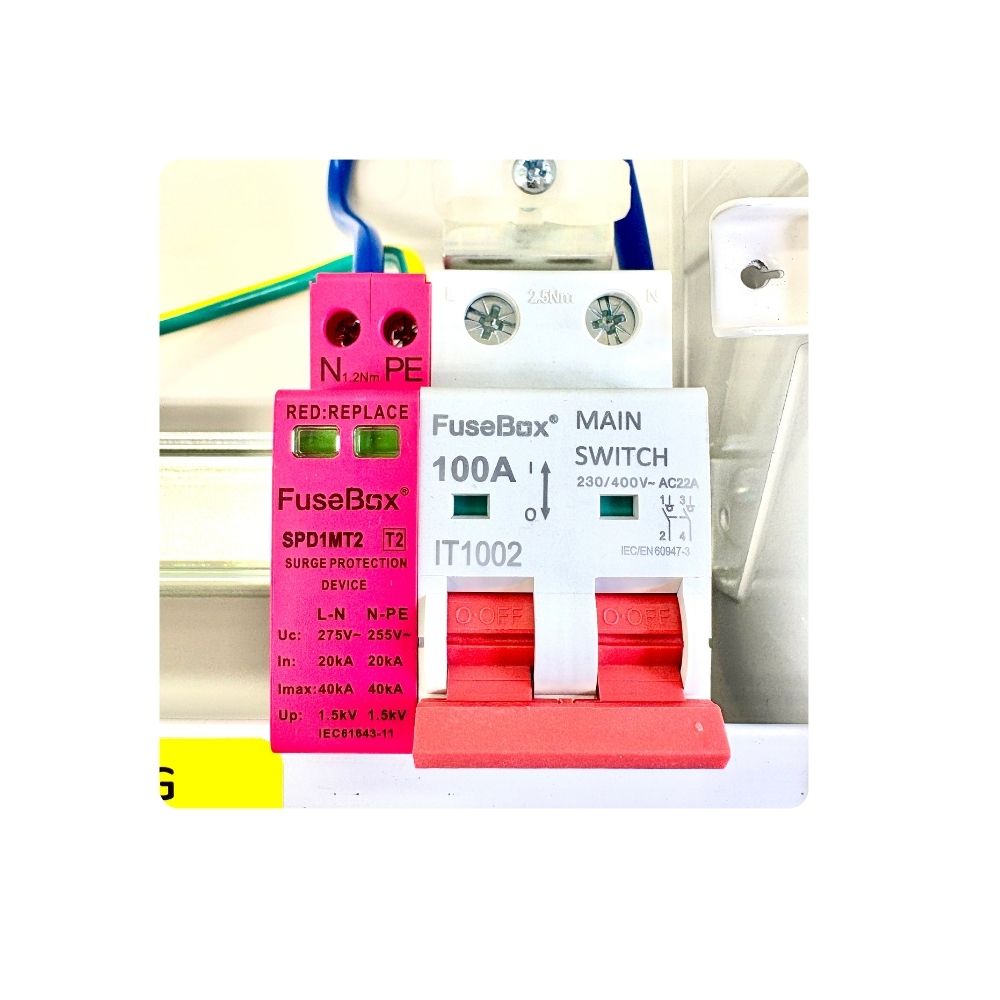

The most significant upgrade in the FuseBox F3 range is the new single module pink SPD that connects directly to the busbar — meaning no separate MCB is required. This not only saves a usable outgoing way, but also makes wiring faster and neater.

Other improvements include:

• DIN Rail-Mounted Tail Clamp – The tail clamp is now fixed directly onto the DIN rail. This offers better cable retention and makes fitting quicker and more secure.
• Reinforced Grommet Strip – Each unit includes a tougher, more durable grommet strip to protect cables at the point of entry. It’s designed to handle demanding installations without tearing or shifting.

These enhancements make FuseBox F3 boards even more installer-friendly, while staying fully compliant with the 18th Edition Wiring Regulations.

⚡ FuseBox SPD Advantage – Save Space in Your RCBO Consumer Unit

The new FuseBox F3007MZ SPD mounts directly to the busbar, saving space inside your board. This design:

• Avoids the need for a separate MCB
• Provides 7 usable ways in a 7-way enclosure
• Simplifies layout and improves serviceability
• Helps you deliver faster installs

🪛 Use the Right Torque – Stay 18th Edition Compliant

For best results, we recommend using a torque-calibrated screwdriver when fitting this FuseBox RCBO consumer unit. The included manual provides clear torque settings for each terminal. Following these helps ensure secure connections, reduces long-term maintenance, and keeps your installation fully compliant with the 18th Edition Wiring Regulations.

🔗 Explore Other FuseBox SPD Consumer Units

Looking for more compact options? Check out the FuseBox F3011MZ 11 Way RCBO Consumer Unit or the FuseBox F3015MZ 15 Way RCBO Board for added flexibility in small to medium installs.

📝 Summary – FuseBox F3007MZ 7 Way RCBO Consumer Unit With SPD

The FuseBox F3007MZ 7 Way RCBO Consumer Unit With SPD is an updated, space-saving enclosure with improved surge protection and an extra usable way. It includes a 100A DP main switch, tail clamp, and a busbar-connected SPD for faster, safer installs.
