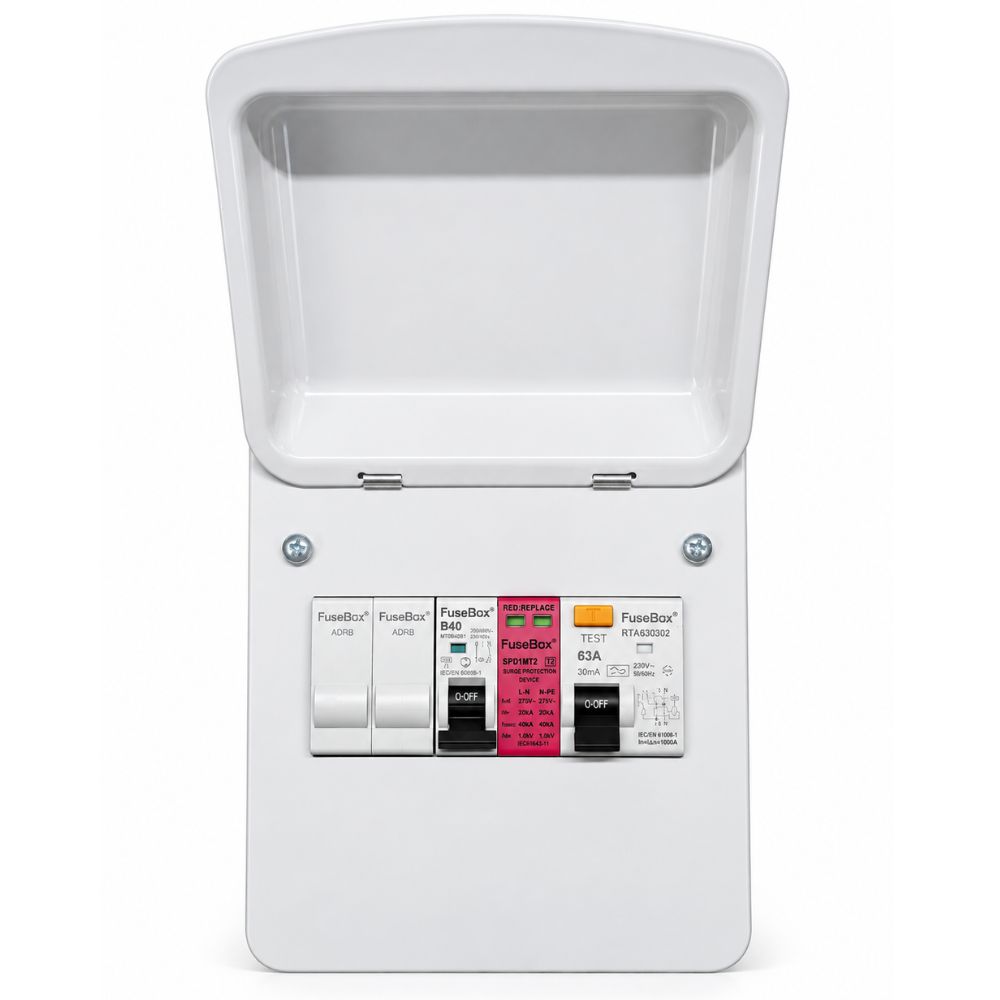

FuseBox EV40RAZ EV Charger Distribution Board
The FuseBox EV40RAZ EV Charger Distribution Board provides a dedicated protection solution for electric vehicle charging circuits. Supplied with a 63A 30mA Type A RCD incomer, 40A MCB and direct-to-busbar Type 2 surge protection, it combines residual current, overcurrent and surge protection within one metal enclosure.
Designed for straightforward surface installation, the FuseBox EV40RAZ EV Charger Distribution Board includes a removable DIN rail, round cable-entry knock-outs and captive front-cover screws for convenient installation and maintenance.
63A Type A RCD with 40A MCB
The incoming 63A 30mA Type A RCD provides residual current protection, while the 40A MCB protects the dedicated EV charging circuit against overload and short-circuit conditions.
This makes the EV40RAZ particularly suited to EV charging installations requiring a 40A protective device, subject to the requirements of the charger manufacturer and installation design.
Integrated Type 2 Surge Protection
A direct-to-busbar Type 2 SPD is incorporated within the board to provide protection against transient overvoltages.
Integrating the surge protection device within the EV distribution board creates a compact installation and reduces the need for separate surge-protection enclosures.
Key Features
- Dedicated FuseBox EV charger distribution board
- 63A 30mA Type A RCD incomer
- 40A MCB
- Direct-to-busbar Type 2 SPD
- Metal enclosure
- Removable DIN rail
- Round cable-entry knock-outs on all sides
- Captive front-cover screws
- Designed for surface mounting
- Suitable for dedicated EV charging circuits
Product Specifications
- Brand: FuseBox
- Product code: EV40RAZ
- Product type: EV charger distribution board
- Incoming device: 63A 30mA Type A RCD
- MCB rating: 40A
- Surge protection: Type 2 SPD
- RCD type: Type A
- Mounting: Surface
- Enclosure: Metal
32A and 40A FuseBox EV Distribution Boards
This EV40RAZ model is fitted with a 40A MCB. For installations requiring a 32A protective device, see the FuseBox EV32RAZ EV Charger Distribution Board with 32A MCB.
You can also browse our complete FuseBox EV Circuit Protection range for alternative EV consumer units, protective devices and charging circuit solutions.
EV Charging Circuit Protection
The FuseBox EV40RAZ EV Charger Distribution Board provides a compact solution for protecting a dedicated 40A EV charging circuit. The suitability of the Type A RCD arrangement and other protective measures should always be confirmed against the EV charger manufacturer’s requirements and the electrical installation design.
