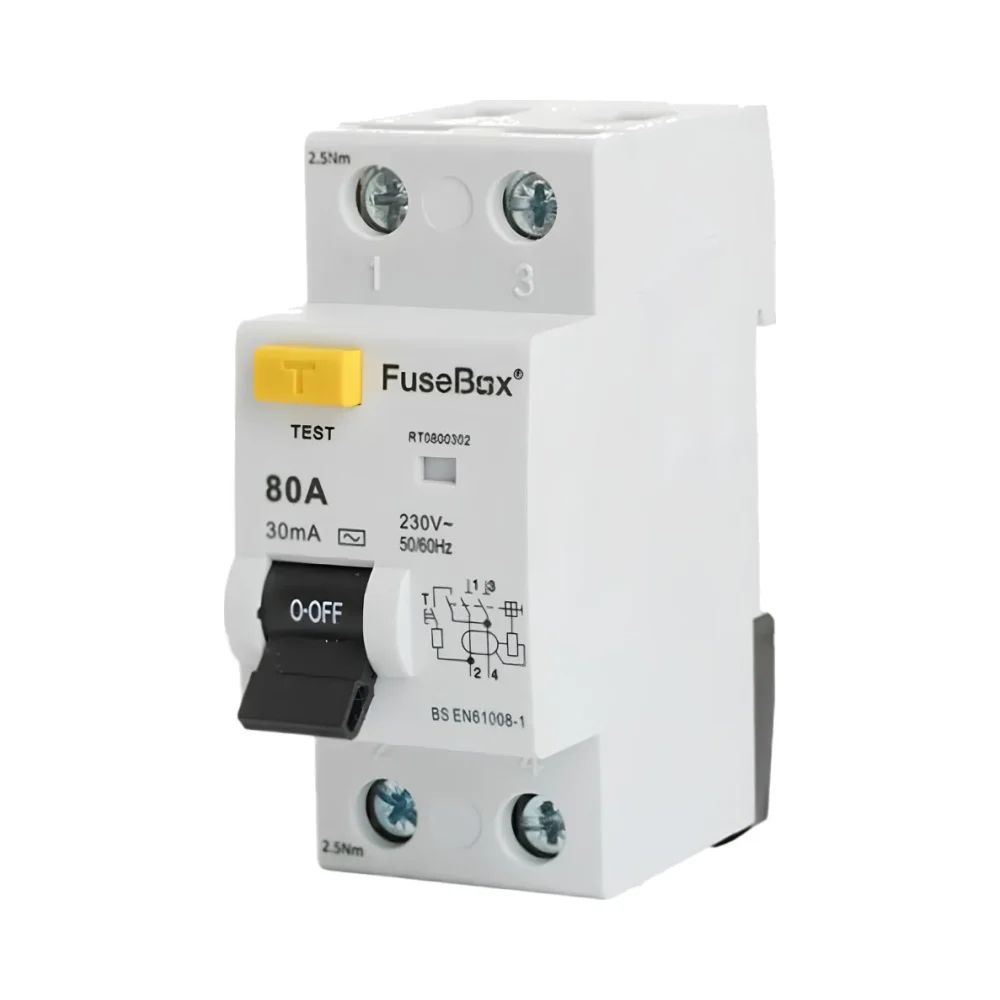

FuseBox 80A 30mA 2 Pole Type A RCD
RTA800302 – 80A Type A RCD with 30mA Sensitivity
The FuseBox 80A 30mA 2 Pole Type A RCD provides residual current protection for 230V electrical installations requiring an 80A rated device. Its Type A characteristics and 30mA operating sensitivity make it suitable for a wide range of modern electrical installations.
The RTA800302 is designed for 35mm DIN rail mounting and can be installed within FuseBox consumer units, modular enclosures and TPN distribution boards.
For greater installation flexibility, this 2 pole RCD is not polarity sensitive. Live and neutral can therefore be positioned on either side, while the incoming supply and outgoing load may be connected from either the top or bottom.
Product Features
- Rated current: 80A
- Residual operating current: 30mA
- 2 pole Type A RCD
- 230V rated voltage
- 50/60Hz operating frequency
- 10kA conditional short-circuit capacity
- IP20 ingress protection rating
- Accepts cables up to 25mm²
- Switch terminal torque: 2.5Nm
- Standard 35mm DIN rail mounting
- Top or bottom load connection
- Non-polarity-sensitive 2 pole arrangement
- Complies with IEC EN 61008-1
Flexible Type A RCD Protection
The FuseBox 80A 30mA 2 Pole Type A RCD combines an 80A current rating with 30mA Type A residual current protection in a compact DIN rail format. The flexible connection arrangement can simplify installation and replacement work within compatible FuseBox equipment.
