FuseBox 23 Way Consumer Unit Kit with 18 RCBOs
FuseBox F3023MZ Consumer Unit Bundle
The FuseBox 23 Way Consumer Unit Kit with 18 RCBOs is a high-capacity bundle for larger domestic installations, full property rewires and projects requiring a substantial number of individually protected circuits. The kit brings together the FuseBox F3023MZ consumer unit with 18 standard-size FuseBox RTA Type A Curve B RCBOs, 5 solid blanks and a meter tails cable gland.
The RCBOs, blanks and gland are supplied separately and are not fitted into the consumer unit. They are included as part of the kit for installation and configuration on site.
With 23 usable ways, integrated Type 2 surge protection and individual RCBO protection available for 18 circuits, this bundle provides generous capacity while retaining 5 spare ways for future additions.
Important – RCBO Selection and Default Configuration
This kit is supplied with 18 standard-size FuseBox Type A Curve B RCBOs in our standard configuration unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout or contact us by email or WhatsApp with your order number.
If no alternative RCBO requirements are received, the default configuration shown below will be dispatched.
Default RCBO Configuration
- 5 × B6A Type A RCBOs
- 3 × B16A Type A RCBOs
- 4 × B20A Type A RCBOs
- 6 × B32A Type A RCBOs
This consumer unit kit is supplied with FuseBox standard-size Type A Curve B RCBOs from the RTA range. Alternative available Curve B amperage ratings can be requested when ordering.
View the full FuseBox Standard Size RCBO range.

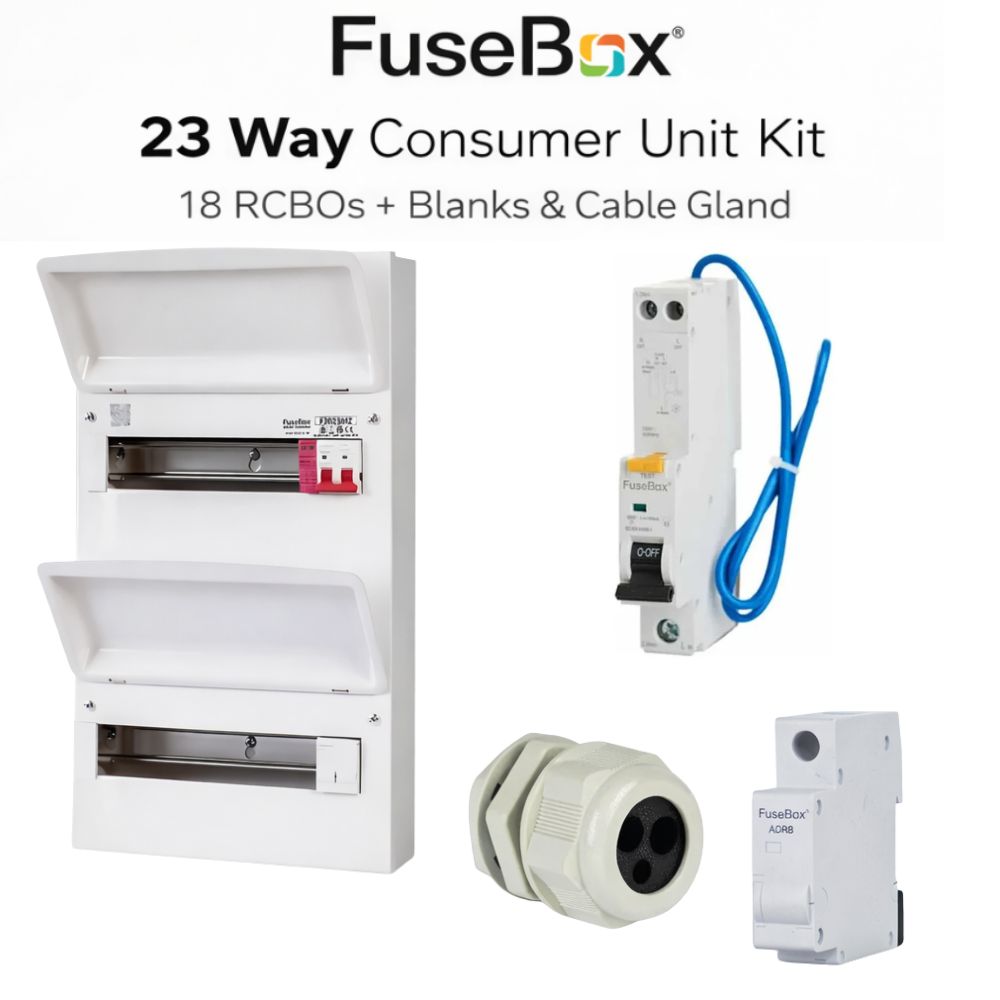

Complete Kit Includes
- FuseBox F3023MZ 23 Way Metal Consumer Unit
- 18 × FuseBox RTA Type A Curve B RCBOs
Default configuration: 5×6A, 3×16A, 4×20A and 6×32A. - Type 2 Surge Protection Device
- 5 × Solid Blanking Modules
- 1 × Meter Tails Cable Gland
Please note: The RCBOs, blanks and meter tails gland are supplied loose as part of the bundle and are not pre-installed into the consumer unit.
RCBO Specification
- FuseBox RTA standard-size RCBO range
- Type A residual current protection
- Curve B only supplied as part of this kit
- Individual overload, short-circuit and residual current protection
- Alternative available Curve B current ratings can be requested when ordering
Key Features
- 23 usable ways
- 18 standard-size FuseBox Type A Curve B RCBOs included
- Default RCBO mix: 5×6A, 3×16A, 4×20A and 6×32A
- Alternative available Curve B ratings can be requested
- Type 2 surge protection included
- 5 solid blanks included
- Meter tails cable gland included
- Metal consumer unit enclosure
- Large capacity for full rewires and bigger installations
- RCBOs and accessories supplied separately for on-site fitting
Choosing Your RCBOs
The standard configuration for this FuseBox 23 Way Consumer Unit Kit with 18 RCBOs is 5×6A, 3×16A, 4×20A and 6×32A. If this configuration suits your installation, no further action is required.
If you require a different combination of available Curve B RTA RCBO ratings, add the required amperages to the order notes during checkout. You can also contact us by email or WhatsApp with your order number immediately after placing your order.
If no alternative requirements are received, the standard RCBO configuration will be dispatched automatically.
Individual Circuit Protection
Each outgoing circuit can be protected by its own RCBO, providing combined overload, short-circuit and residual current protection. Individual RCBO protection also means that a fault on one circuit does not normally require other unaffected circuits to be disconnected.
Integrated Surge Protection
The consumer unit includes Type 2 surge protection to help protect connected equipment against transient overvoltages caused by supply switching events and other electrical disturbances.
Why Choose This FuseBox 23 Way Consumer Unit Kit?
The FuseBox 23 Way Consumer Unit Kit with 18 RCBOs gives electricians a convenient way to purchase the board, circuit protection and essential accessories together while retaining complete control over the final layout on site.
With 18 RCBOs supplied and 5 ways remaining available, the kit is particularly suitable for larger properties, extensive
