Description

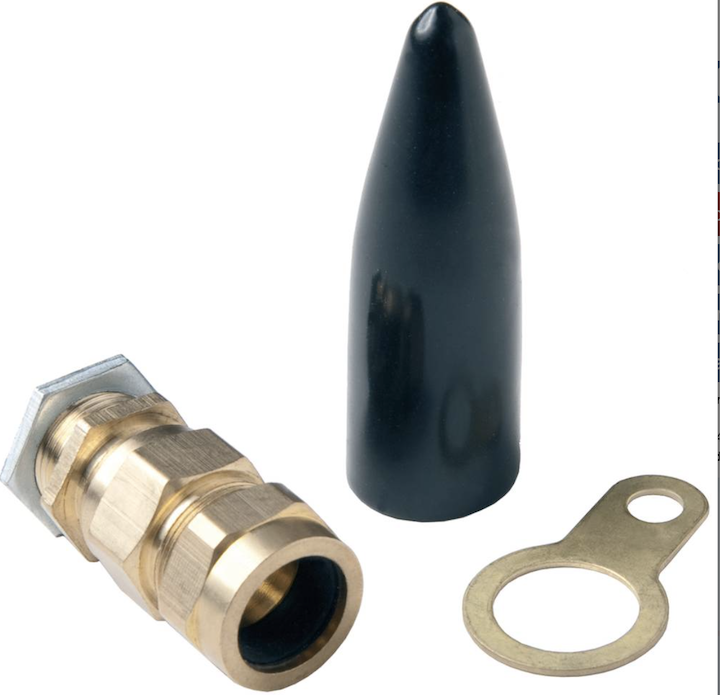

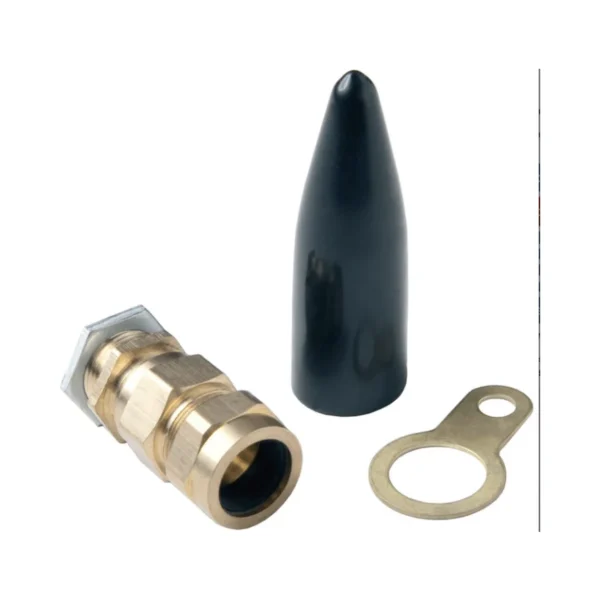

CW40-PK External SWA Cable Gland 40 – Pack of 1
The CW40-PK External SWA Cable Gland 40 – Pack of 1 is a high-quality brass cable gland designed specifically for Steel Wire Armoured (SWA) cables (H694-XL). This gland ensures secure clamping, electrical continuity, and mechanical retention, making it essential for professional installations. Designed for outdoor use, the CW gland provides a reliable waterproof seal, offering durability and safety in challenging environments.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 120-150mm²
- 3 Core SWA: 95mm²
- 4 Core SWA: 70mm²
- 5 Core SWA: 35mm²
Key Features of CW40-PK External SWA Cable Gland 40
- High-Quality Construction: Made from durable brass for exceptional performance and corrosion resistance.
- Secure Clamping: Provides strong clamping of armour wire, ensuring both electrical continuity and mechanical retention.
- Waterproof Design: Specifically built for outdoor environments, delivering a dependable seal against moisture and harsh weather conditions.
- Versatile Use: Ideal for Steel Wire Armoured cables (H694-XL), ensuring compatibility with a range of cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sq.mm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
| 120 | 40 | – | – | – |
| 150 | 40 | – | – | – |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The CW40-PK External SWA Cable Gland 40 – Pack of 1 is the perfect solution for securing and sealing SWA cables in outdoor environments. With durable brass construction, waterproof sealing, and compatibility with a wide range of cable sizes, this gland ensures reliable and long-lasting performance. Choose this product for safe, efficient, and professional installations.
