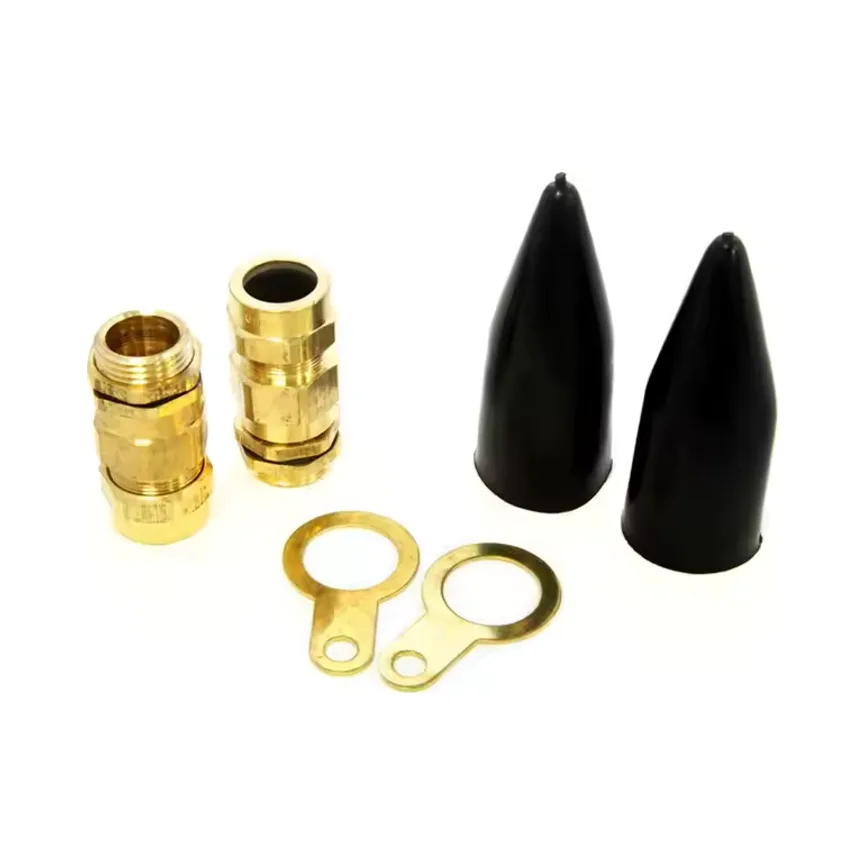

CW25 External SWA Cable Gland 25 – Pack of 2
The CW25 External SWA Cable Gland 25 – Pack of 2 offers reliable and robust termination for Steel Wire Armoured (SWA) cables. These high-quality brass cable glands are designed to ensure secure clamping, electrical continuity, and mechanical retention. Ideal for outdoor installations, the CW gland provides a dependable waterproof seal, making it a trusted choice for professional electricians.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 16-25mm²
- 3 Core SWA: 16-25mm²
- 4 Core SWA: 16mm²
- 5 Core SWA: 16mm²
Key Features
- High-Quality Construction: Made from durable brass for long-lasting performance and corrosion resistance.
- Secure Clamping: Ensures the armour wire is securely clamped, maintaining electrical continuity and mechanical retention.
- Waterproof Design: The CW gland is ideal for outdoor environments where a moisture-resistant seal is essential.
- Versatile Use: Compatible with Steel Wire Armoured cables (H694-XL).
Size Guide for Cable Glands
| Conductor Size (sq.mm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The CW25 External SWA Cable Gland 25 – Pack of 2 ensures secure and reliable cable terminations for outdoor environments. With robust brass construction, waterproof sealing, and compatibility with a range of SWA cable sizes, these glands provide excellent performance and durability. Choose the CW25 for a trusted solution to your electrical installation needs.
